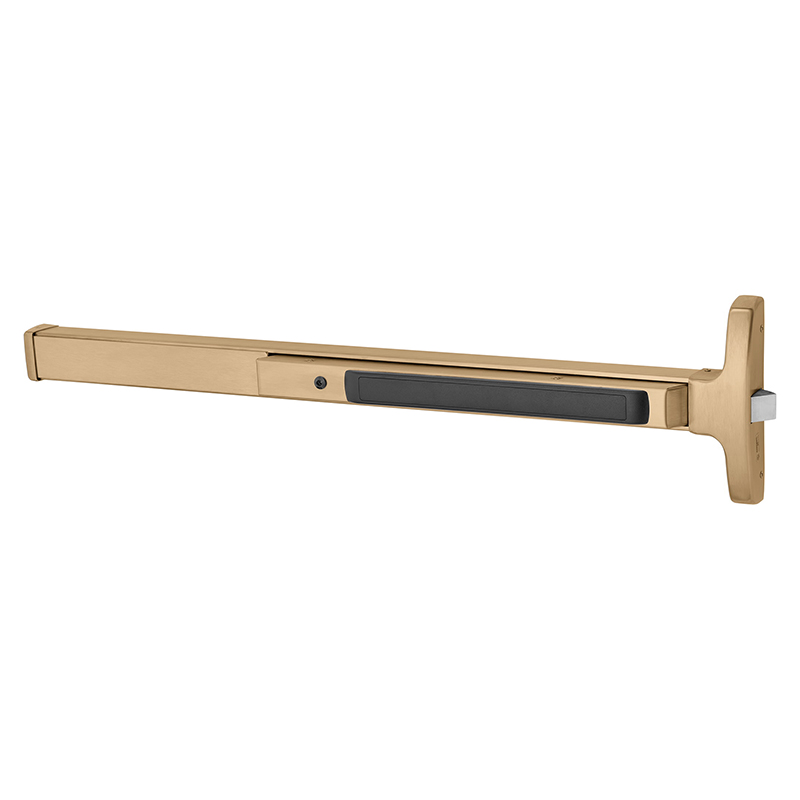

Sargent 8504F 10 Rim Exit Device, NL Function

Sargent 8504F 10 Rim Exit Device, NL Function is a Grade 1 rim exit device designed for narrow stile applications, offering both security and durability for commercial environments. This 36" device features a night latch function and hex key dogging, ensuring reliable and quiet operation. Constructed with modular components, the Sargent 8500 Series exceeds ANSI/BHMA Grade 1 requirements, making it an ideal choice for high-traffic areas that require a dependable exit solution. The 8504F is compatible with both wood and metal doors that are 1-3/4" thick, and it is reversible for flexible installation. This device accommodates door widths ranging from 33" to 36", providing versatility in various applications. Its satin bronze clear-coated finish ensures a modern aesthetic while enhancing durability. With a simple, yet effective single-point rim latching mechanism, this exit device is designed to minimize maintenance needs, making it a practical choice for building professionals. Additionally, the Sargent 8504F is backed by a 5-year limited warranty, ensuring long-lasting performance. Choose the Sargent 8504F for a reliable, efficient, and stylish solution to your exit device needs.

Rim Exit Device, NL Function

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36" Device, Night Latch Function, Hex Key Dogging, Satin Bronze Clear Coated Finish, Field Reversible

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

The 8500 Series has a quiet operation with solid security. The single point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.  1-3/4" (44mm) minimum stile
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
