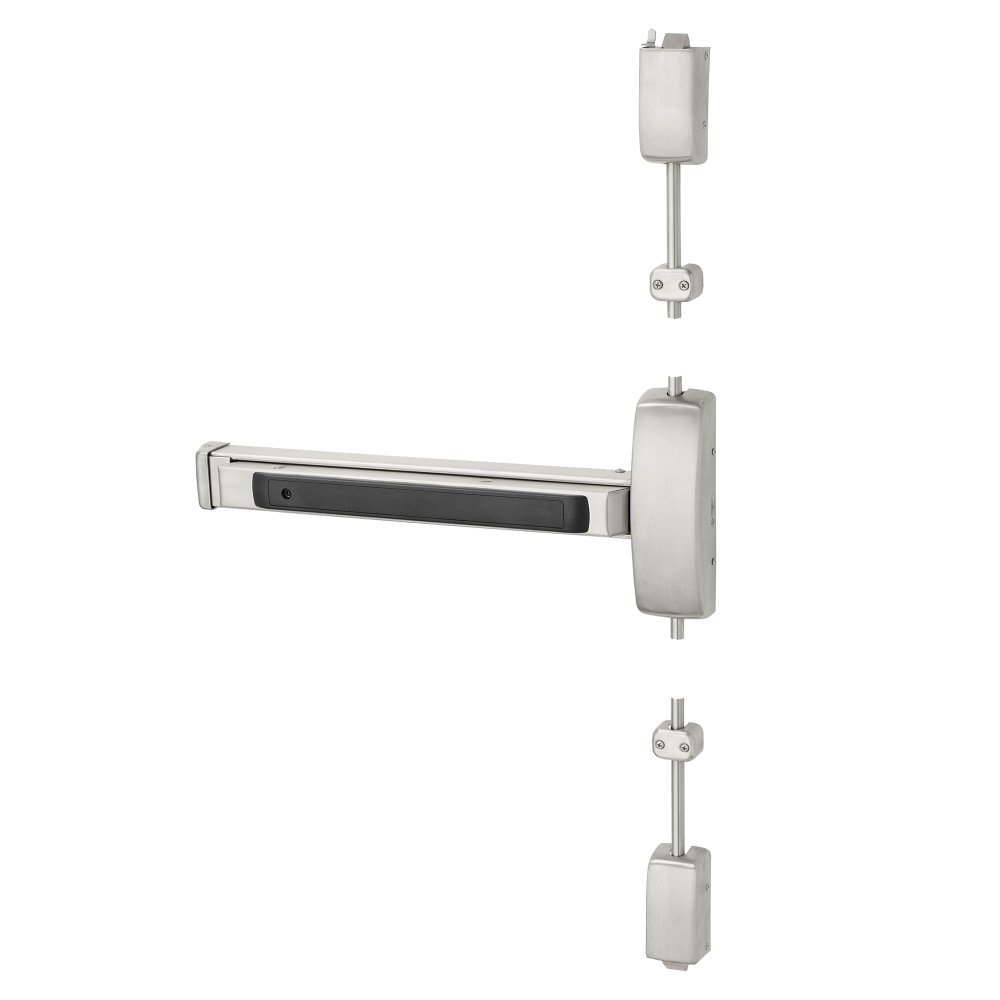

Sargent 8706E ETL LHR 32D SVR Storeroom Exit Device

Sargent 8706E ETL LHR 32D SVR Exit Device, Storeroom offers robust security with its Grade 1 Surface Vertical Rod design, making it an excellent choice for high-traffic commercial environments. This exit device features a wide stile pushpad and is specifically designed to fit doors with a height of 96 inches and a width ranging from 24 to 32 inches. With a storeroom function, it provides controlled access, ensuring that only authorized personnel can enter. The device is built with two-point latching and is adjustable through the center case, enhancing its adaptability to varying door conditions. It is crafted from durable materials, finished in satin stainless steel, which not only adds aesthetic appeal but also ensures long-lasting performance. The hex key dogging feature allows for easy operation and maintenance. Compatible with both wood and metal doors, the Sargent 8706E is suitable for door thicknesses of 1-3/4 inches to 2-1/4 inches. It complies with ADA standards and is UL listed for reliability. With a limited five-year warranty, this exit device stands as a testament to Sargent's commitment to quality and innovation, making it a top choice for security solutions in any facility.

SVR Exit Device, Storeroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 32" Device, 96" Door Height, Storeroom Function, L Lever with Escutcheon, Hex Key Dogging, Satin Stainless Steel Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 12-HC8700 Top Case Parts List
• 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-8700 Surface Vertical Rod Chassis Parts List
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• AL- Alarmed Exit Device Installation Instructions
• Basic Fundamentals - Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• NB-8700 ET Trim Template
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8700 Series Surface Vertical Rod Exit Device Installation
• Windstorm Solutions - Exit Devices
