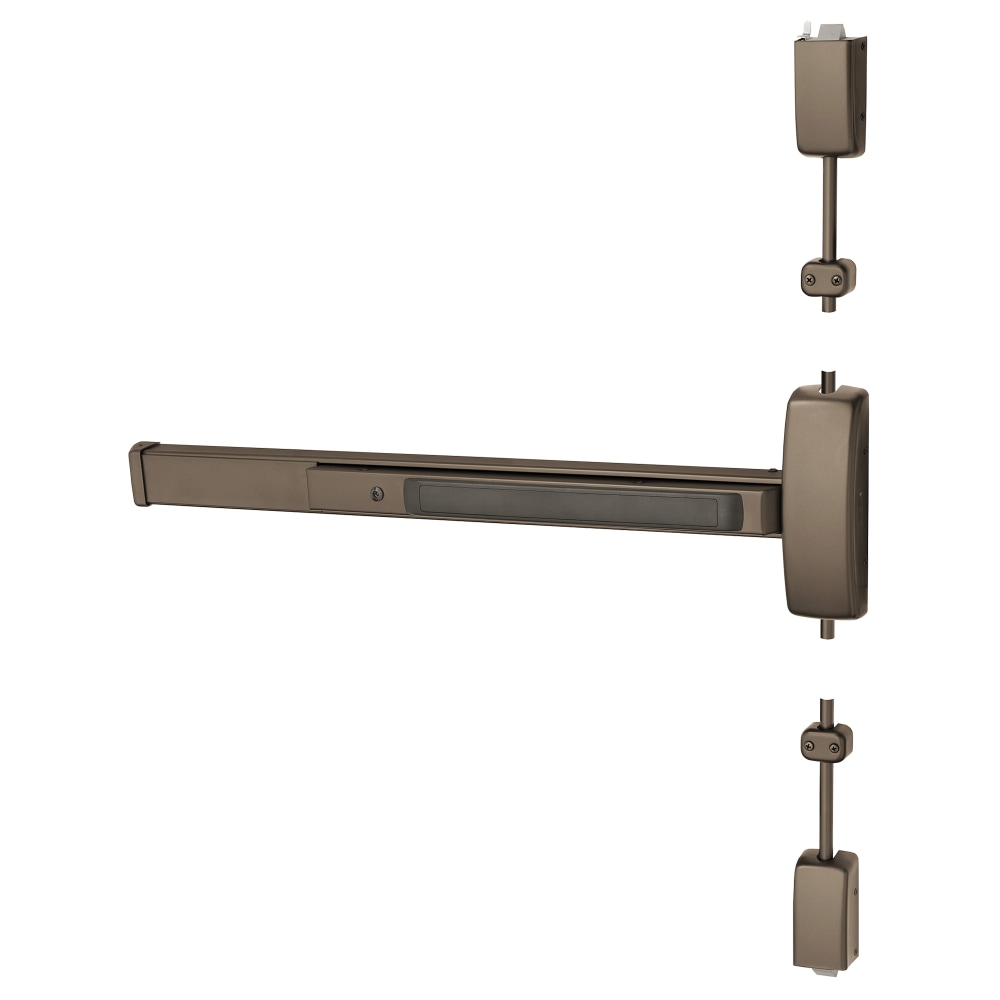

Sargent 8706F RHR 10B SVR Storeroom Exit Device

Sargent 8706F RHR 10B SVR Exit Device, Storeroom is a Grade 1 Surface Vertical Rod Exit Device designed for durability and security. This device features a wide stile pushpad and is ideally suited for 36" door widths with a height of 96", providing reliable access control in commercial environments. The storeroom function allows for secure locking, while hex key dogging offers added convenience for maintenance. Constructed to exceed ANSI/BHMA Grade 1 standards, the 8700 Series devices ensure long-lasting performance and minimal maintenance, thanks to its modular design with fewer moving parts. This exit device is compatible with wood or metal doors that are 1-3/4" to 2-1/4" thick, making it versatile for various installations. Its adjustable top and bottom latchbolt projection, accessed through the center case, enhances its adaptability. In addition, the Sargent 8706F is available in a stylish dark oxidized satin bronze oil-rubbed finish, complementing the aesthetics of any building. With a limited warranty of five years, this exit device not only provides safety and security but also peace of mind. Choose the Sargent 8706F for reliable, robust protection in your facility.

SVR Exit Device, Storeroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, 96" Door Height, Storeroom Function, Hex Key Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
