Sargent LC-10XG05 LL 04 Grade 1 Entrance/Office Lock is a robust cylindrical lock designed to excel in high-traffic and high-abuse environments. This Grade 1 lock not only meets but exceeds ANSI/BHMA standards for durability and performance by as much as 20 times, ensuring reliability for years to come. Featuring a sleek satin brass finish, it presents a professional appearance while providing exceptional functionality. The lock accommodates all cylinder formats, offering flexibility with fixed core to interchangeable core cylinders. Its innovative latch retraction withstands a 100lb preload, doubling ANSI/BHMA A156.2 requirements, while the independent return springs prevent lever sag, enhancing user experience. Vandalism protection is reinforced with a design that can endure a minimum of 100 vertical impacts, making it ideal for commercial applications. Installation is straightforward, compatible with doors ranging from 1-3/4" to 2" thick. The lock's non-handed design allows for versatile application, and its fire rating of up to 3 hours offers added safety. With a 10-year limited warranty, the Sargent LC-10XG05 is an outstanding choice for those seeking a reliable and durable entrance or office locking solution.

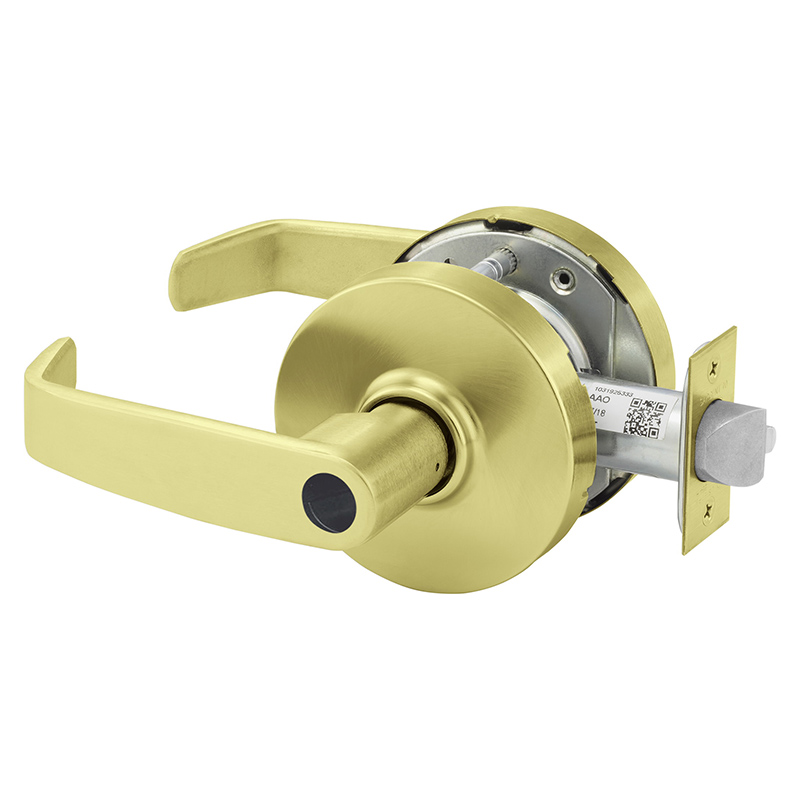

Grade 1 Entrance/Office Cylindrical Lock, L Lever, L Rose, Conventional Less Cylinder, Satin Brass Finish, Non-handed
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Grade 1 locksets that exceed standards for durability, strength and performance by as much as 20 times.
The Sargent 10X-Line series is engineered to secure and protect high-abuse, high-traffic spaces. Occupants enjoy consistent performance for the life of the product.
Attributes
Ansi: F109
Ansi Function: F109 - Entry/Office
Base Material: Brass
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Less Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2"
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Entrance or Office
Function Family: Entrance
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X-Line Bored Lever Locks
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
