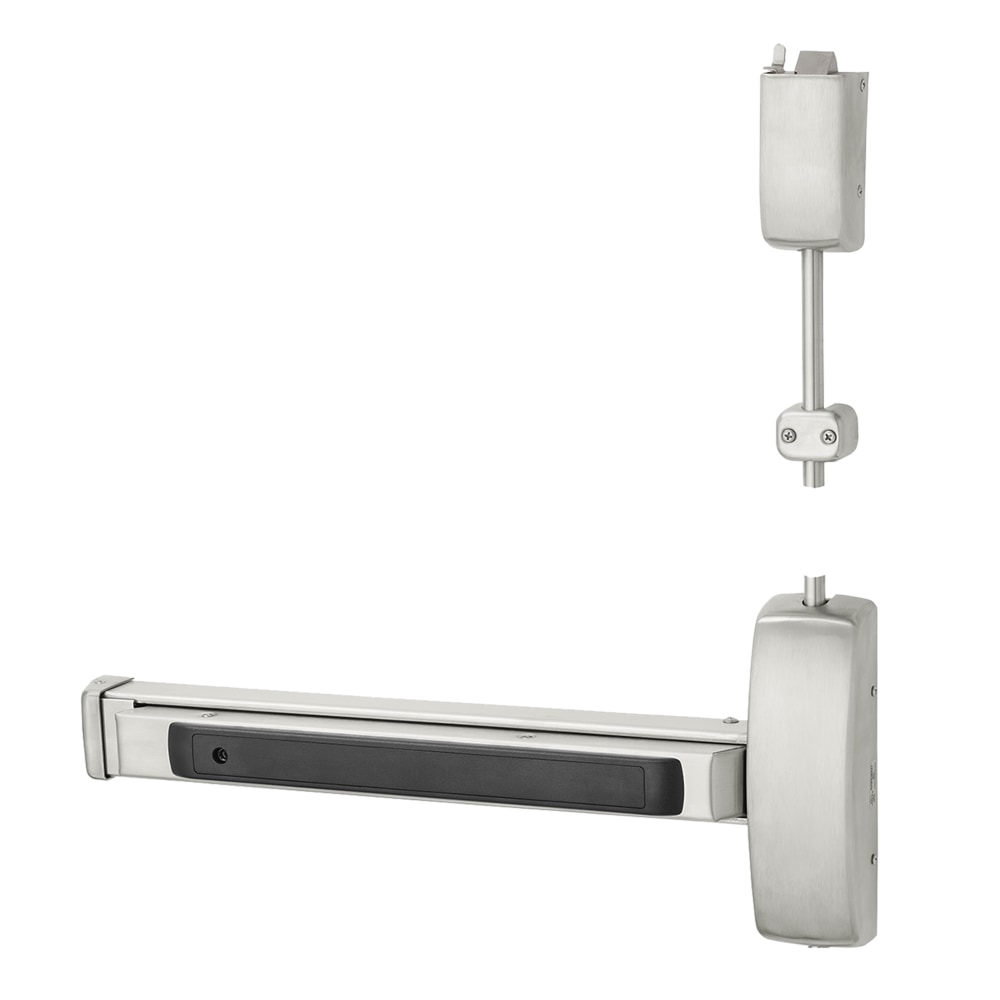

Sargent NB8710E RHR 32D NB-SVR Exit Device - Exit Only

Sargent NB8710E RHR 32D NB-SVR Exit Device, Exit Only is a Grade 1 surface vertical rod exit device engineered for superior security and durability in commercial environments. Designed with a wide stile pushpad, this 32-inch device is suitable for 84-inch door heights and features hex key dogging for added convenience. The exit-only functionality ensures straightforward egress, while the satin stainless steel finish (630/US32D) provides an aesthetic touch that complements any building design. Part of the renowned Sargent 80 Series, the NB8700 Series exit devices exceed ANSI/BHMA Grade 1 standards for strength and cycle performance, ensuring a long-lasting solution for high-traffic areas. With a modular construction and minimal moving parts, maintenance is virtually hassle-free. The device accommodates wood or metal doors with a thickness of 1-3/4" to 2-1/4" and is adaptable for various door widths ranging from 24" to 36". Ideal for facilities requiring robust exit solutions, the Sargent NB8710E is compatible with a variety of applications, including delayed egress and electric latch retraction. Offering a 5-year limited warranty, this exit device embodies reliability, strength, and innovation in building security.

NB-SVR Exit Device, Exit Only

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 32" Device, 84" Door Height, Exit Only, Less Bottom Rod, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• NB8700 Series Installation Instructions
