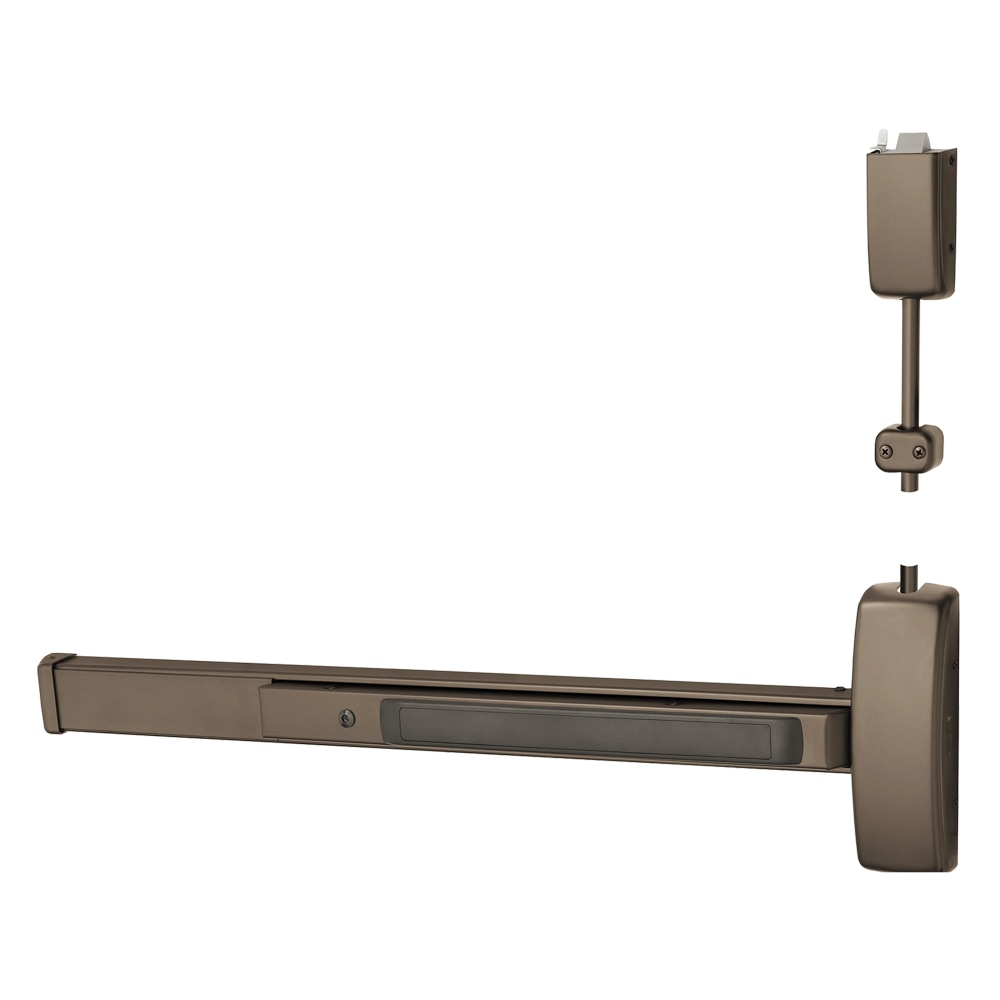

Sargent NB8713F ETL LHR 10B NB-SVR Classroom Exit Device

Sargent NB8713F ETL LHR 10B NB-SVR Exit Device, Classroom is a Grade 1 surface vertical rod exit device designed for reliability and security in commercial settings. This 36" device is suitable for doors up to 84" in height and features a wide stile pushpad for effortless operation. The classroom function, paired with a durable L lever and escutcheon, ensures ease of access while maintaining security. Constructed with modular features and minimal moving parts, the NB8700 Series exceeds ANSI/BHMA Grade 1 standards, providing maintenance-free performance that lasts the life of the building. The device is available in a dark oxidized satin bronze oil-rubbed finish, adding an elegant touch to any door while ensuring durability. This exit device accommodates wood or metal doors with a thickness ranging from 1-3/4" to 2-1/4" and is designed for left hand reverse installations. Hex key dogging allows for secure, stable operation, making it ideal for a variety of applications. With its robust construction and aesthetic appeal, the Sargent NB8713F is a top choice for professionals seeking dependable exit solutions that blend functionality with style.

NB-SVR Exit Device, Classroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, 84" Door Height, Classroom Function, L Lever with Escutcheon, Less Bottom Rod, Hex Key Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• NB8700 Series Installation Instructions
