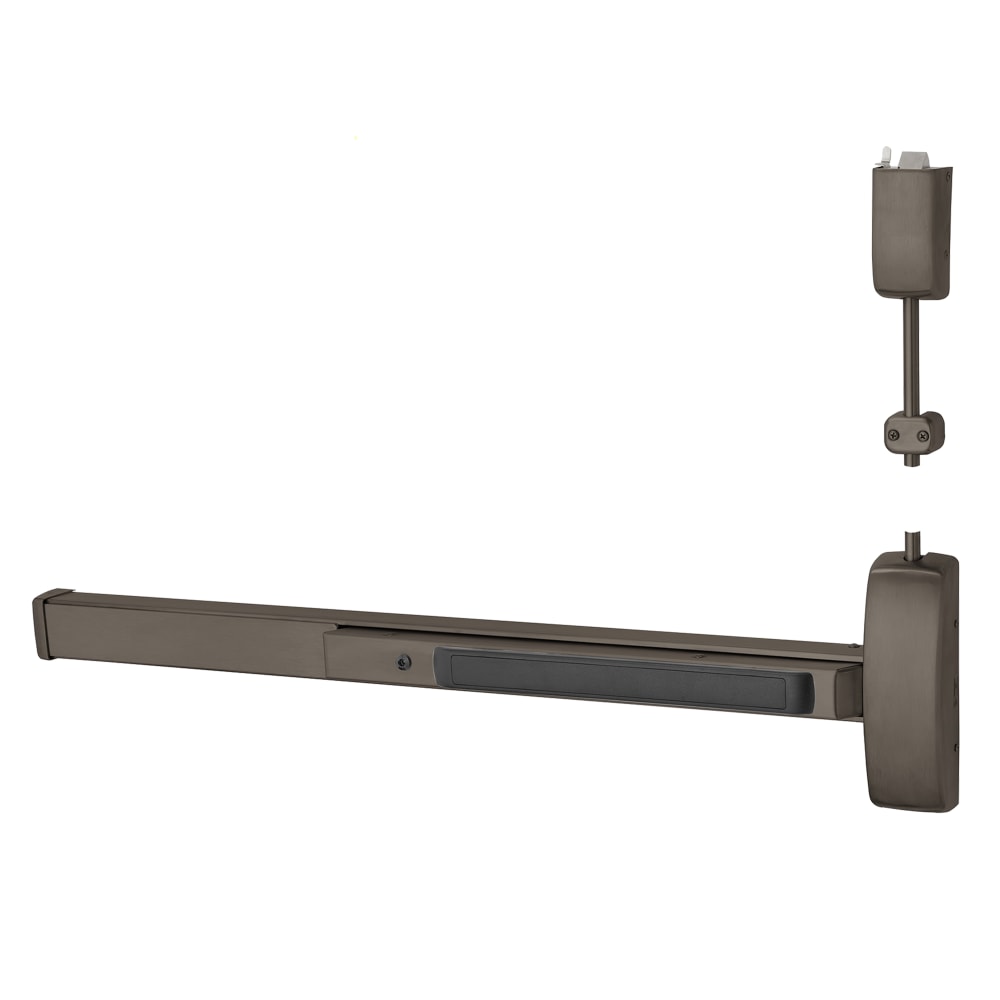

Sargent NB8713J RHR 10B NB-SVR Classroom Exit Device

Sargent NB8713J RHR 10B NB-SVR Exit Device, Classroom offers robust security and reliable functionality ideal for commercial spaces. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad design, measuring 42 inches in length and designed for doors up to 84 inches high. Its classroom function, equipped with hex key dogging, ensures controlled access while maintaining safety standards. Engineered for durability, the NB8700 Series easily exceeds ANSI/BHMA Grade 1 requirements, making it a dependable choice for high-traffic environments. With modular construction and minimal moving parts, this exit device is virtually maintenance-free, ensuring longevity and performance throughout the building's life. Designed to fit 1-3/4" to 2-1/4" thick wood or metal doors, it accommodates a range of door widths from 37 inches to 42 inches without the need for cutting. The device comes in a striking dark oxidized satin bronze oil-rubbed finish, enhancing the aesthetic of any entryway. For unique applications, options like delayed egress and electric latch retraction can be integrated. The Sargent NB8713J is a perfect blend of simplicity, strength, and innovation, making it a valuable addition to your security solution lineup.

NB-SVR Exit Device, Classroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 42" Device, 84" Door Height, Classroom Function, Less Bottom Rod, Hex Key Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
