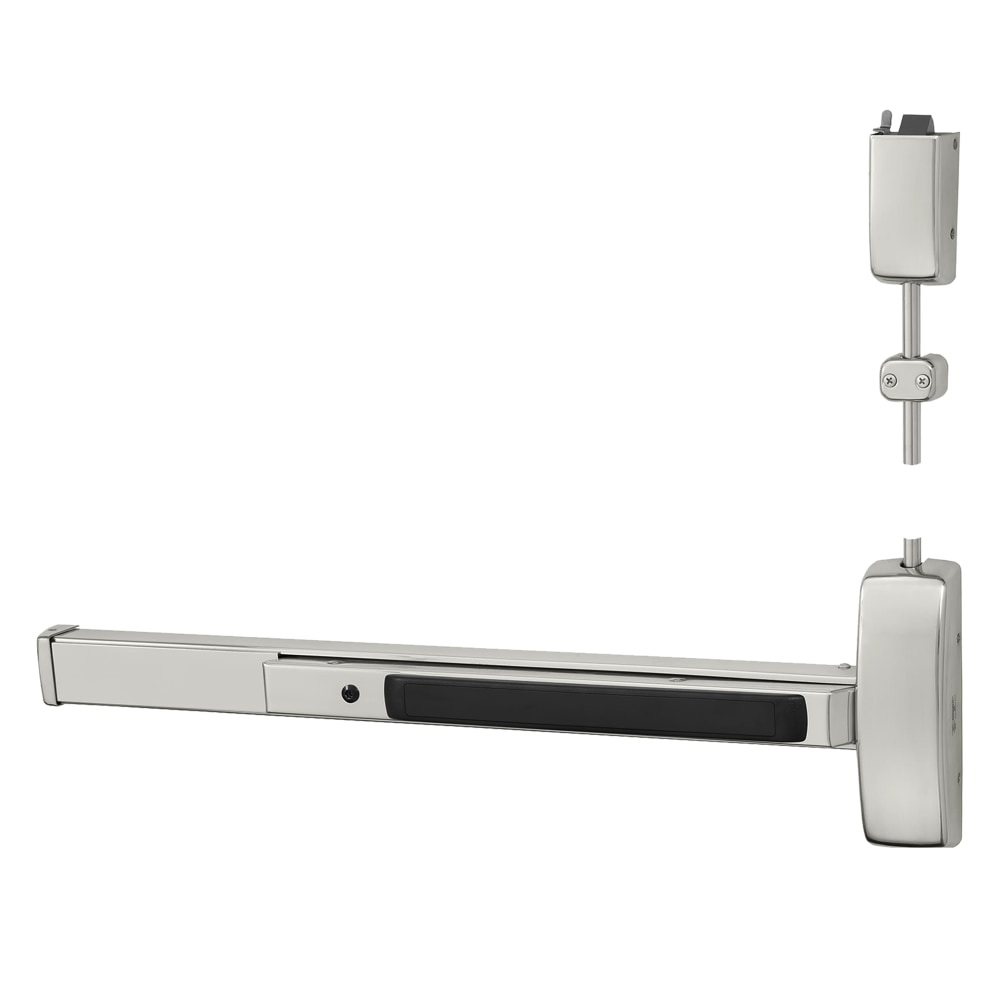

Sargent NB8715F ETL RHR 32D NB-SVR Exit Device with Passage

Sargent NB8715F ETL RHR 32D NB-SVR Exit Device is a Grade 1 Surface Vertical Rod Exit Device designed for superior security in commercial settings. This robust exit device features a wide stile pushpad and is tailored for 36" devices on 84" high doors, providing a reliable solution for high-traffic areas. The passage function allows for easy egress without the need for a key, making it ideal for emergency exits. Constructed with modular design and few moving parts, the Sargent 80 Series exit devices ensure maintenance-free operation while exceeding ANSI/BHMA Grade 1 standards for both cycle and strength. The satin stainless steel finish adds an elegant touch, along with the L lever with escutcheon for enhanced aesthetics. This model is designed for metal or wood doors, with a thickness range of 1-3/4" to 2-1/4". The exit device is equipped with hex key dogging for added security and features a right-hand reverse handing. With ADA compliance and accessibility in mind, the Sargent NB8715F ensures ease of use for all individuals. Whether you’re upgrading an existing setup or outfitting a new building, this exit device combines simplicity, durability, and innovation to meet your security needs.

NB-SVR Exit Device, Passage

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36" Device, 84" Door Height, Passage Function, L Lever with Escutcheon, Less Bottom Rod, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The NB8700 Series is a top latch surface vertical rod exit device.

The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics and innovation. This series has both rated and non-rated openings.

• Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
• Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Resources

• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• NB8700 Series Installation Instructions
