Sargent RX-8272-24V LNL 32D Grade 1 Elec No DB, Fail Safe is a robust double cylinder mortise lock engineered for security and reliability. Featuring fail safe functionality, this 24V electrified lock operates seamlessly with power ranging from 12 to 24 volts, making it ideal for single openings and stand-alone applications. Its Ecoflex Technology allows for easy field conversion between fail safe and fail secure modes, ensuring versatility in various settings. Constructed from high-quality materials, including a heavy-duty wrought steel case and stainless steel latchbolt, the Sargent RX-8272 meets ANSI/BHMA Grade 1 standards and is UL listed for fire doors, providing peace of mind in high-traffic areas. The lock's satin stainless steel finish adds a sleek, professional appearance while offering durability against wear. Compatible with sophisticated access control systems, this lock includes features such as a ¾" bolt projection, optional master keying, and field-reversible handing for added convenience. With a 10-year limited warranty on mechanical components and a 2-year warranty on electrified parts, the Sargent RX-8272-24V is a reliable choice for professionals seeking strength, flexibility, and innovation in door security solutions.

Grade 1 Elec No DB, Fail Safe

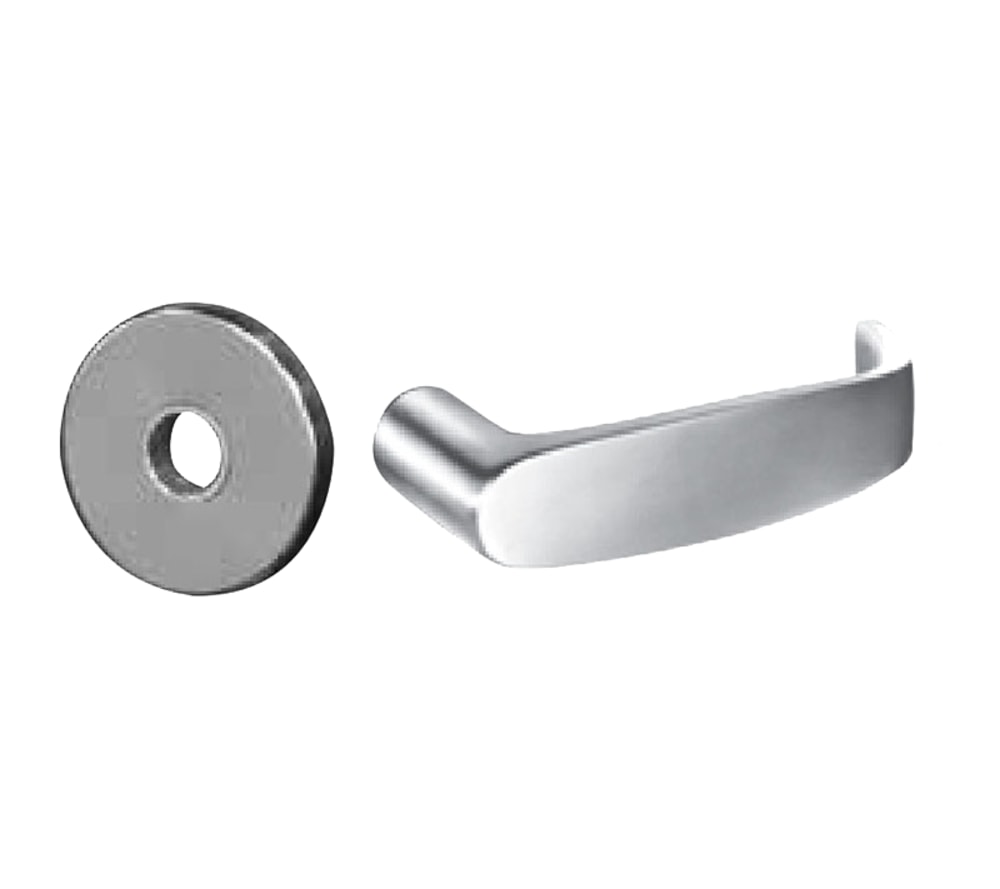

Double Cylinder, Fail Safe, 24V Electrified Mortise Lock, LN Rose, L Lever, RX Switch, Satin Stainless Steel

Featuring Ecoflex Technology, Sargent 8200 Electromechanical Mortise Locks are field changeable between fail safe and fail secure functions and operate off 12v through 24v power. They are designed to handle single opening, stand alone applications. They can also be readily integrated into sophisticated access control systems. They meet ANSI/BHMA A 156.13 Grade 1 requirements, are UL listed on fire doos and sitisfy industry standards for operating temperature, shock and fire hazard.

Designed and constructed with high quality components to provide maximum security.

 The Sargent electrified 8270 series locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: Strong - Durable - Flexible – Innovative and Secure.

• For Doors 1-3⁄4" (44mm) thick standard. For doors over 1-3⁄4" (44mm), specify door thickness and panels (if any)
• Backset 2-3⁄4" (70mm) only
• Case 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
• Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)
• Springs High carbon steel
• Hubs for Knobs Sintered iron copper infiltrated
• Hubs for Levers Cold forged steel
• Hubs for Institutional Stainless steel (3- prefix)
• Latchbolt Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch
• Auxiliary Deadlatch Stainless steel, non-handed
• Deadbolt One-piece hardened stainless steel, with 1" (25mm) projection
• Hand Specify hand on order; easily field reversible (if no hand is specified RH will be provided)
• Strike Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed (strike box optional)
• Keys Two, nickel silver (control key or emergency key must be ordered when required)
• Cylinder Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")). Available with SARGENT Signature, V-10, XC and KESO Security Systems
• Masterkeying Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
• Finishes 3, 4, 9, 10, 10B, 10BL,15, 20D, 26, 26D, 32, 32D Special finishes are available. (Contact factory for details)
• Classroom Security 38, 39, 40, 41 Functions (All mortise trim designs available except KE/LE 3 & 4 and PT trim or FE trim with 41 function)
• Stile 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks
• Door Prep ANSI A115.1 modified per template (see template for 7800/8200 lockbody & trim)
• Warranty 10 year limited warranty, 2 year limited warranty on electrified locks
