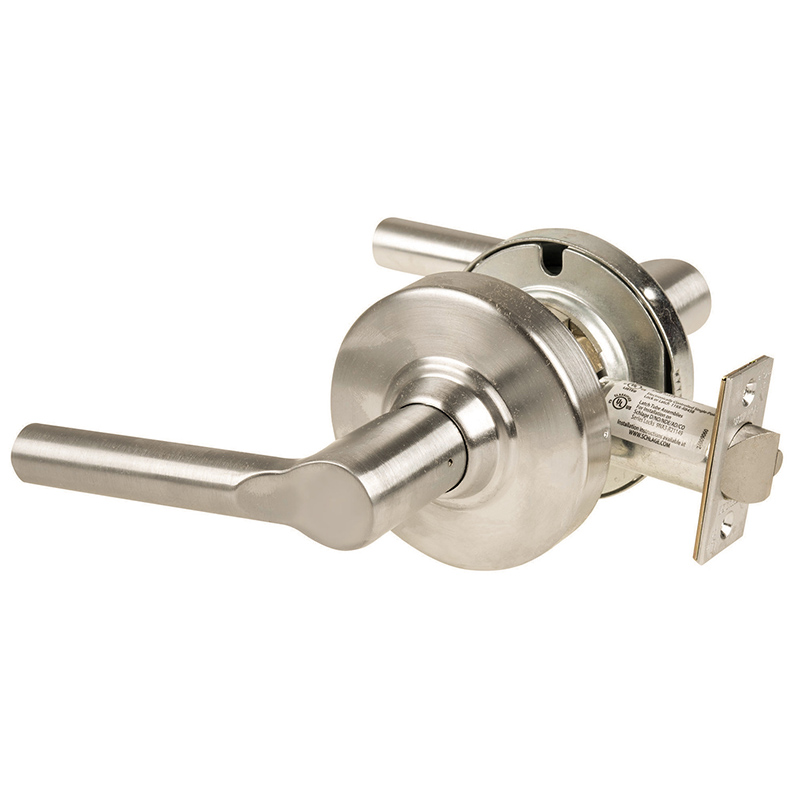

Schlage Commercial ALX10BRW619 ALX Series Grade 2 Passage Broadway Lever Lock combines style and functionality, making it an ideal choice for commercial settings. This lockset features a satin nickel finish that not only enhances its aesthetic appeal but also offers durability and resistance to wear. Designed for a 2-3/4" backset, it fits doors ranging from 1-3/8" to 1-3/4" thick, accommodating a variety of door types. The Broadway lever design provides a comfortable grip, while the Rhodes rose adds a touch of elegance. With a crossbore size of 2-1/8" and two 5/16" post holes, installation is straightforward. The lockset includes a 47267038 spring latch and a 47267101 ANSI strike, ensuring secure closure and reliable performance. UL Listed for 3-hour fire doors, this lockset meets stringent safety standards, making it suitable for various commercial applications. The reversible handing allows for flexible installation, and with a 10-year limited warranty, you can trust in its longevity. Crafted from steel and zinc dichromated materials, the Schlage ALX10BRW619 offers a perfect blend of strength and style for any building professional or knowledgeable homeowner.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F75 - Passage
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Broadway Lever
Dimension: 4-1/2" Lever with 3-1/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" - 1-3/4"
Finish: Satin Nickel
Finish Code: 619
Finish Description: Satin Nickel Plated Clear Coated
Finish Family: Matte Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: Passage
Function Family: Passage
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Broadway Lever
Lever Knob Design Name: Broadway
Leverknob Design: BRW - Broadway Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Passage Latch
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-1/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: Rhodes Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267038
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
