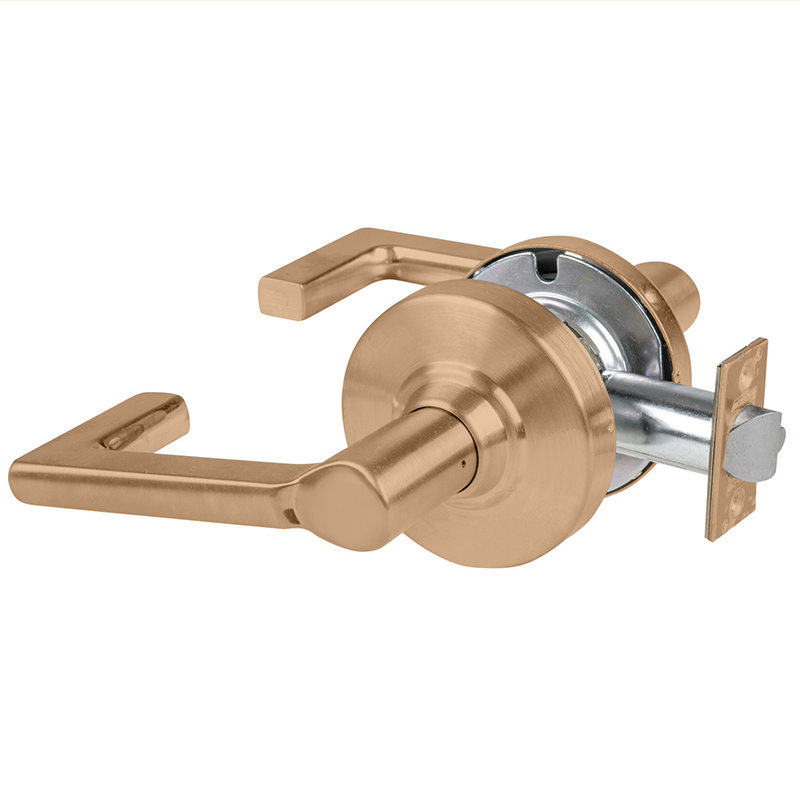

Schlage Commercial ALX10LON612 ALX Series Grade 2 Passage Longitude Lever Lock offers reliability and security for various settings, including commercial and institutional environments. This passage lock features both levers always unlocked, making it ideal for areas requiring frequent access without compromising security. Engineered with a robust ANSI/BHMA Certified A156.2 rating, the ALX10LON612 is built to withstand the demands of high-traffic areas. It accommodates doors ranging from 1-3/8" to 1-3/4" thick and includes a 2-3/4" spring latch and ANSI strike, ensuring a precise fit for standard installations. The lock is UL Listed for 3-hour fire doors, providing peace of mind in emergency situations. The Satin Bronze finish not only enhances aesthetic appeal but also offers durability against daily wear and tear. With a 4-15/16" lever and a 3-7/16" rose, it combines style with functionality. The reversible handing allows for versatile installation options, while the limited 10-year mechanical and 3-year electro-mechanical warranty underscores Schlage’s commitment to quality. Made from steel and zinc dichromated materials, the ALX10LON612 delivers both strength and longevity, making it a smart choice for your architectural hardware needs.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F75 - Passage
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Longitude Lever
Dimension: 4-15/16" Lever with 3-1/8" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Satin Bronze
Finish Code: 612
Finish Description: Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: Passage
Function Family: Passage
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Longitude Lever
Lever Knob Design Name: Longitude
Leverknob Design: LON - Longitude Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Passage Latch
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-1/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: Rhodes Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267038
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
