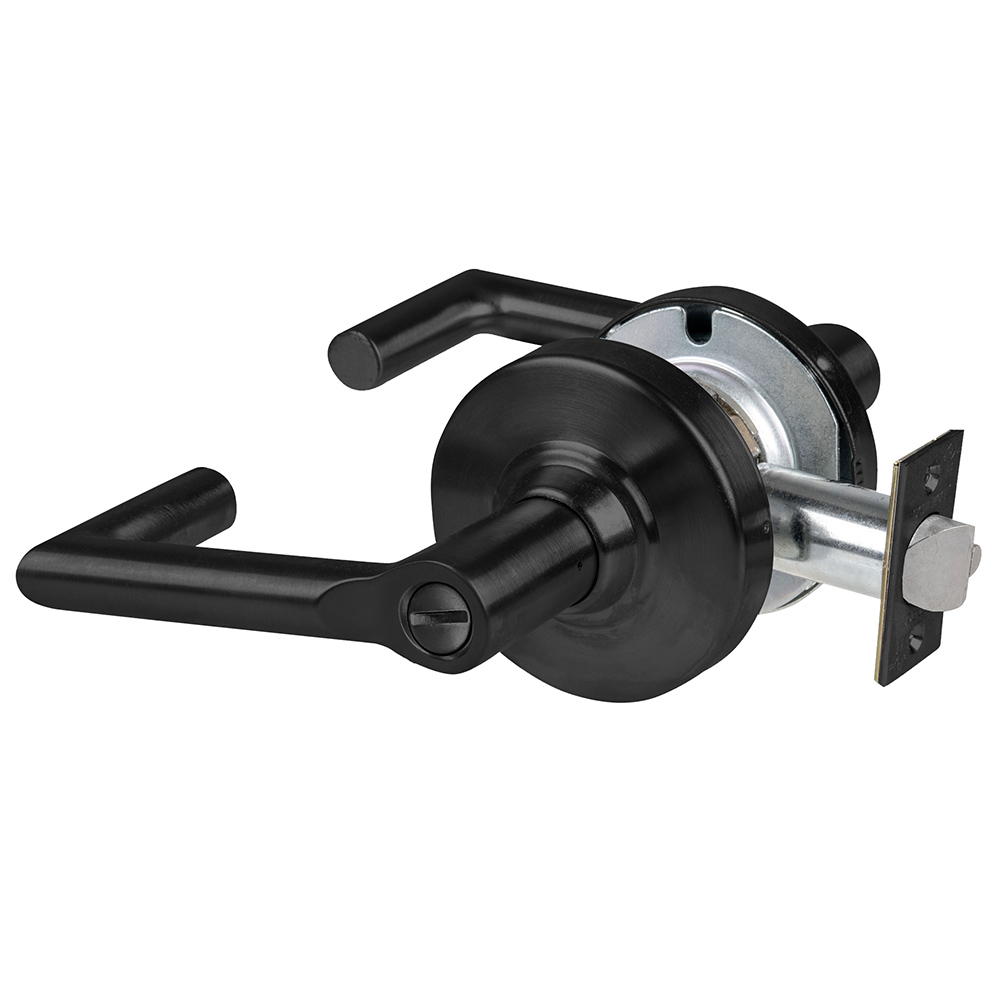

Schlage Commercial ALX40BRK622 ALX Series Grade 2 Privacy Boardwalk Lever Lock offers a blend of security and style, making it an ideal choice for commercial spaces. Designed with a 2-3/4" backset and a privacy function, this lockset ensures that personal areas remain confidential without compromising accessibility. The Boardwalk lever design, paired with the Rhodes rose escutcheon, provides a contemporary aesthetic that suits various architectural styles. Crafted from durable steel with a matte black finish, this lockset not only enhances the visual appeal of your doors but also stands up to the rigors of daily use. It features a 2-1/8" crossbore with two 5/16" post holes, making installation straightforward. The latch faceplate measures 1-1/8" x 2-1/4", and the ANSI strike is designed with a dimension of 4-7/8" and a 1-1/4" lip, ensuring a secure fit. Suitable for doors ranging from 1-3/8" to 1-3/4" thick, the reversible handing allows for versatile installation options. Additionally, this product is UL Listed for 3-hour fire doors and comes with a 10-year limited warranty, providing peace of mind for building professionals and homeowners alike. Upgrade your space with the reliability and elegance of Schlage Commercial's ALX40BRK622.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F76 - Privacy
Ansi Function Description: Privacy
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Boardwalk Lever
Dimension: 4-15/16" Lever with 3-1/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Finish: Matte Black
Finish Code: 622
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 40-Bed Bathroom Privacy Lock
Function Family: Privacy
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267038
Latch Type: Springlatch
Lever Knob: Lever
Lever Knob Design: BRK - Boardwalk Lever
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Boardwalk
Leverknob Design: BRK - Boardwalk Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Bath/Bedroom Privacy Lock
Manufacturer Function Description: Push-button locking. Can be opened from outside with small screwdriver. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-1/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: Rhodes
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267038
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4 In.
Structure Function: 40
Structure Latch: S
Structure Latch Number: 47267038
Structure Outside Finish: 622
Structure Outside Trim: BRK
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
