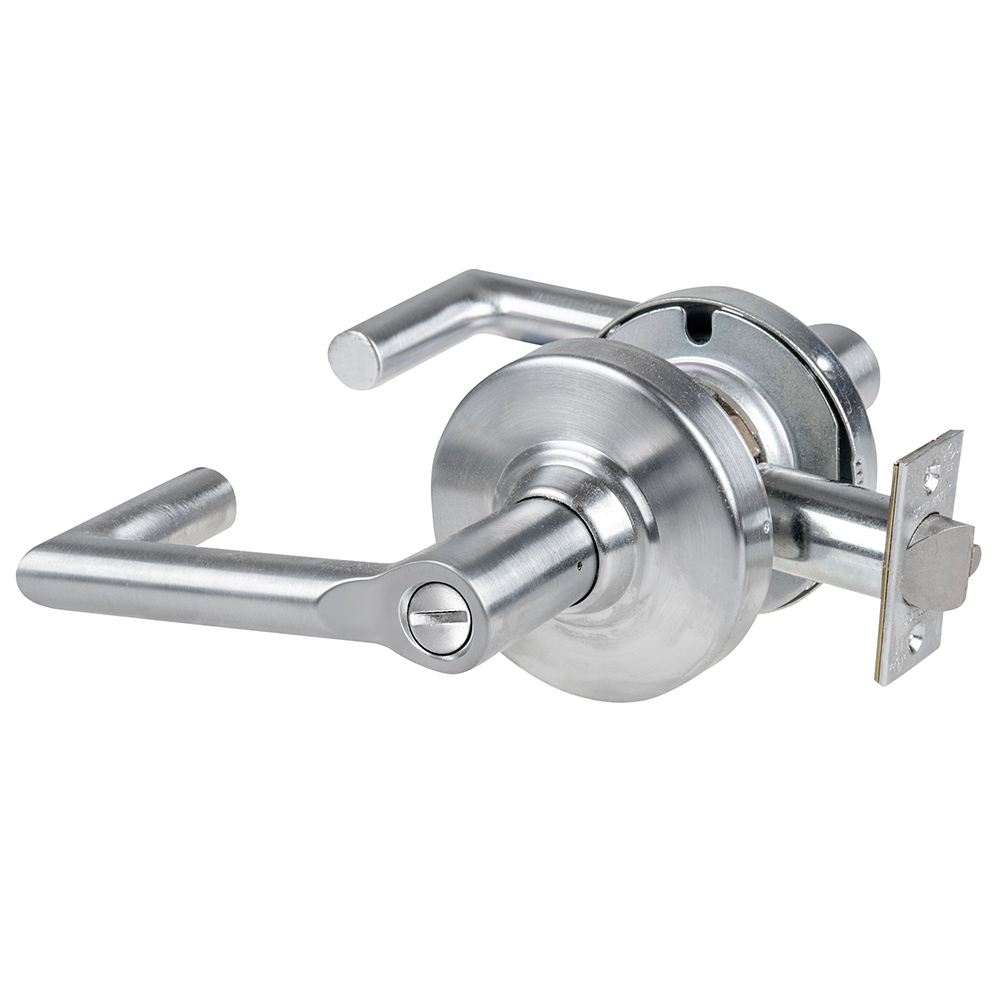

Schlage Commercial ALX40BRK626 ALX Series Grade 2 Privacy Boardwalk Lever Lock offers a perfect blend of style and functionality for commercial settings. Designed to enhance privacy without compromising security, this lockset features a 2-3/4" backset and is suitable for doors ranging from 1-3/8" to 1-3/4" thick. The elegant Boardwalk lever design coupled with a Rhodes rose adds a modern touch, making it an attractive choice for office spaces and conference rooms. Constructed from durable steel with a zinc dichromated finish, the lockset is finished in a sleek satin chrome that complements various interior designs. The 2-1/8" crossbore accommodates standard door preparations, while the reversible handing allows for easy installation on either side. With an ANSI strike measuring 4-7/8" with a 1-1/4" lip, this lock ensures a secure fit. The ALX40BRK626 is UL listed for 3-hour fire doors, ensuring compliance with safety standards. With a 10-year limited warranty, you can trust in its longevity and reliability. Ideal for commercial applications, this mechanical lockset is a steadfast choice for those seeking a balance of aesthetics and performance.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F76 - Privacy
Ansi Function Description: Privacy
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Boardwalk Lever
Dimension: 4-15/16" Lever with 3-1/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 40-Bath Bedroom Privacy Lock
Function Family: Privacy
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267038
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: BRK - Boardwalk
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Boardwalk
Leverknob Design: BRK - Boardwalk Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Bath/Bedroom Privacy Lock
Manufacturer Function Description: Push-button locking. Can be opened from outside with small screwdriver. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-1/16"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: RHO - Rhodes
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267038
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Function: 40
Structure Latch: S
Structure Latch Number: 47267038
Structure Outside Finish: 626
Structure Outside Trim: BRK
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
