Attributes
Ship via: Can Ship UPS
Ansi Function: F82 - Entry
Ansi Function Description: Entry
Backset: 2-3/4" Backset
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Country of Origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Cylinders Present: Single Cylinder

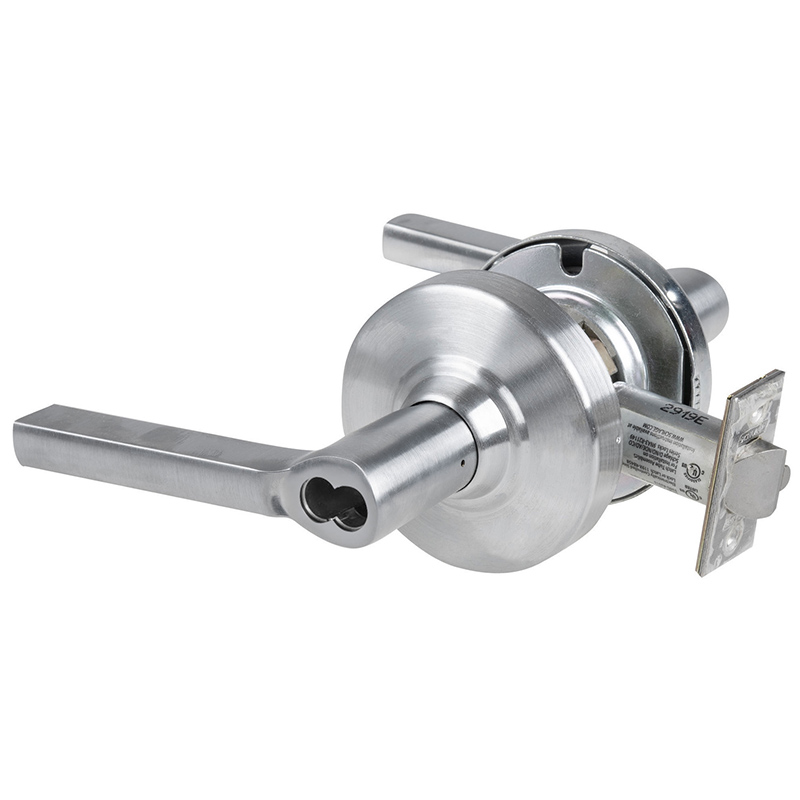

Design: Latitude Lever
Door Thickness: 1-3/8 In. - 1-3/4 In.
Dust Box: None
Finish: 626/US26D
Finish Description: Satin Chrome
Fire Rated: Yes {Variable}
Function: 50-Entrance Office Lock
Function Family: Office
Grade: Grade 2
Hand: Not Handed
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8"
Latch Number: 47267042
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: LAT - Latitude
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Latitude
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entrance/Office Lock
Manufacturer Function Description: Push-button locking. Push-button locks outside lever until unlocked with key or by turning inside lever. Inside lever is always free for immediate egress.
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Num Pins: 6
Projection: 3-1/16"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: RHO - Rhodes
Rose Escutcheon Dimensions: 3-7/16"
Screws: Combination
Series: ALX Series Lever Locks
Strike: ANSI Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: J
Structure Function: 50
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 626
Structure Outside Trim: LAT
Structure Series: ALX
Structure Strike Number: 47267101
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
