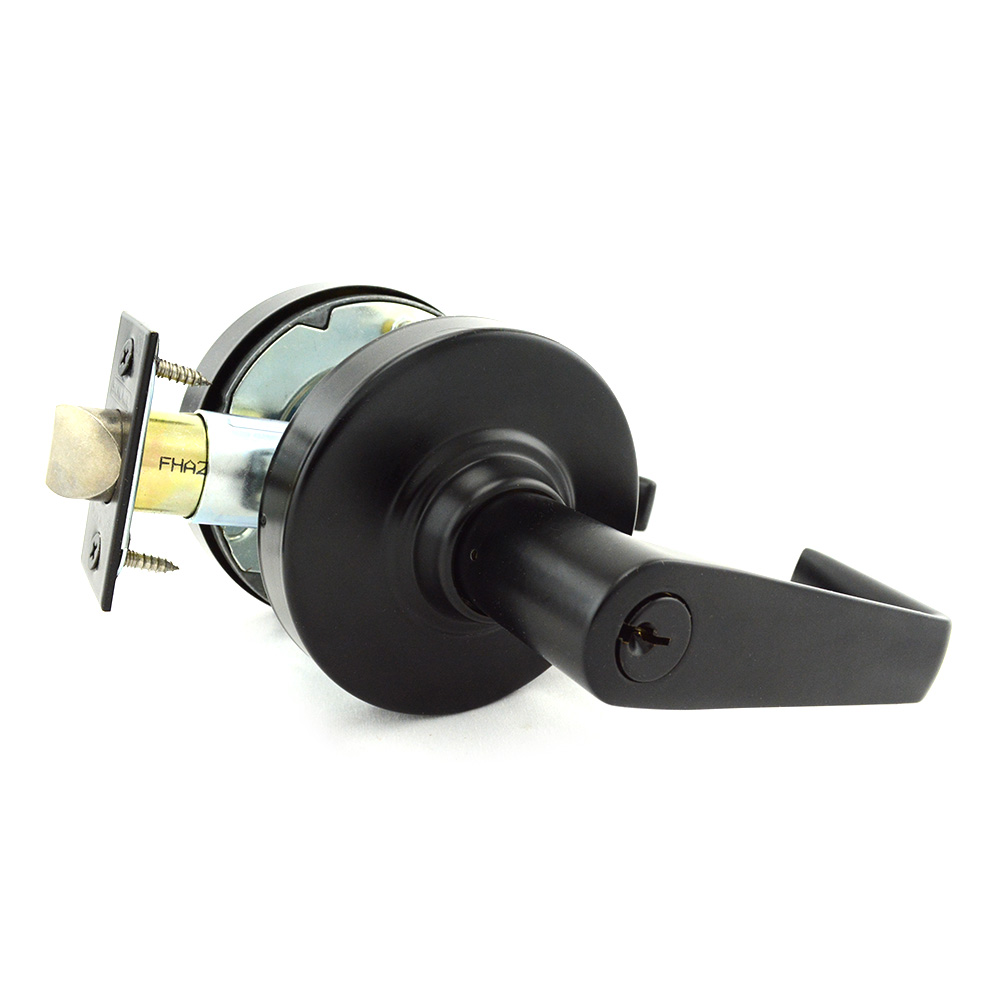

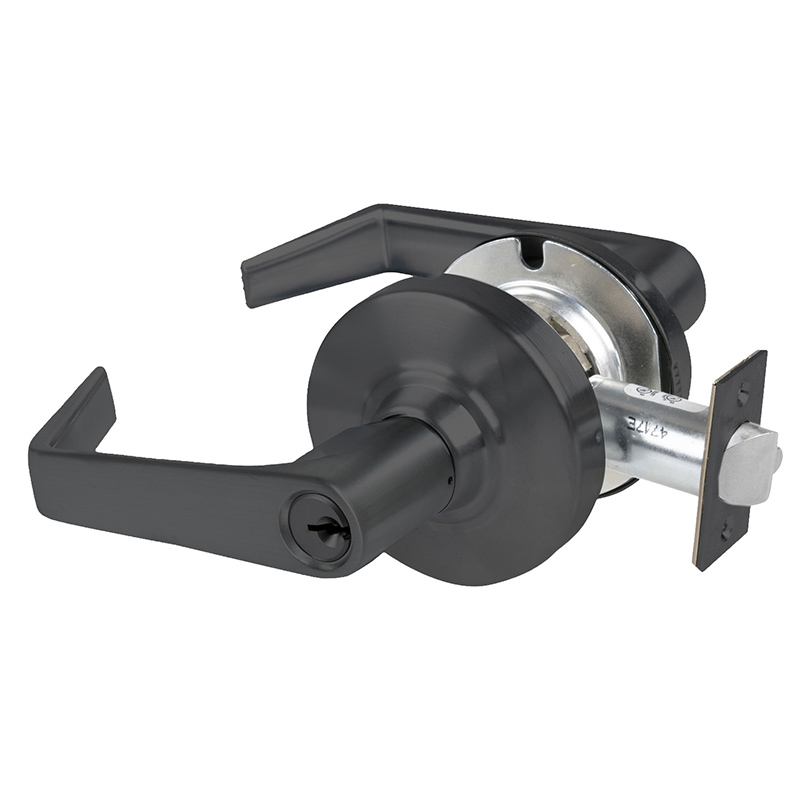

Schlage Commercial ALX50PSAT622 ALX Series Grade 2 Entry Office Saturn Lever Lock offers a robust solution for securing commercial spaces with style and reliability. Designed for doors ranging from 1-3/8" to 1-3/4" thick, this mechanical lockset features a push-button mechanism that locks the outside lever until unlocked with a key or by rotating the inside lever, ensuring ease of access for authorized personnel. Certified to ANSI/BHMA A156.2 standards, this lockset is built to endure the rigors of everyday use, making it ideal for office environments. Its matte black finish adds a contemporary touch, while the durable steel and zinc dichromated materials provide lasting performance. The lock is UL Listed for 3-hour fire doors, enhancing safety without compromising on security. With a 2-3/4" backset and a 6-pin cylinder, the Schlage ALX50PSAT622 offers a reliable and secure locking mechanism. The Rhodes Rose design complements the elegant Saturn lever, merging aesthetics with functionality. This lock also includes a limited 10-year mechanical warranty, ensuring peace of mind for building managers and property owners alike. Upgrade your commercial space with the Schlage Commercial ALX50PSAT622, where security meets sophistication.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F82 - Entry
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Saturn Lever
Dimension: 4-7/16" Lever with 2-15/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Matte Black
Finish Code: 622
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: Entry Office
Function Family: Entrance
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: C Keyway
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Saturn Lever
Lever Knob Design Name: Saturn
Leverknob Design: SAT - Saturn Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Entrance/Office Lock
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4541274
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 2-15/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: Rhodes Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
