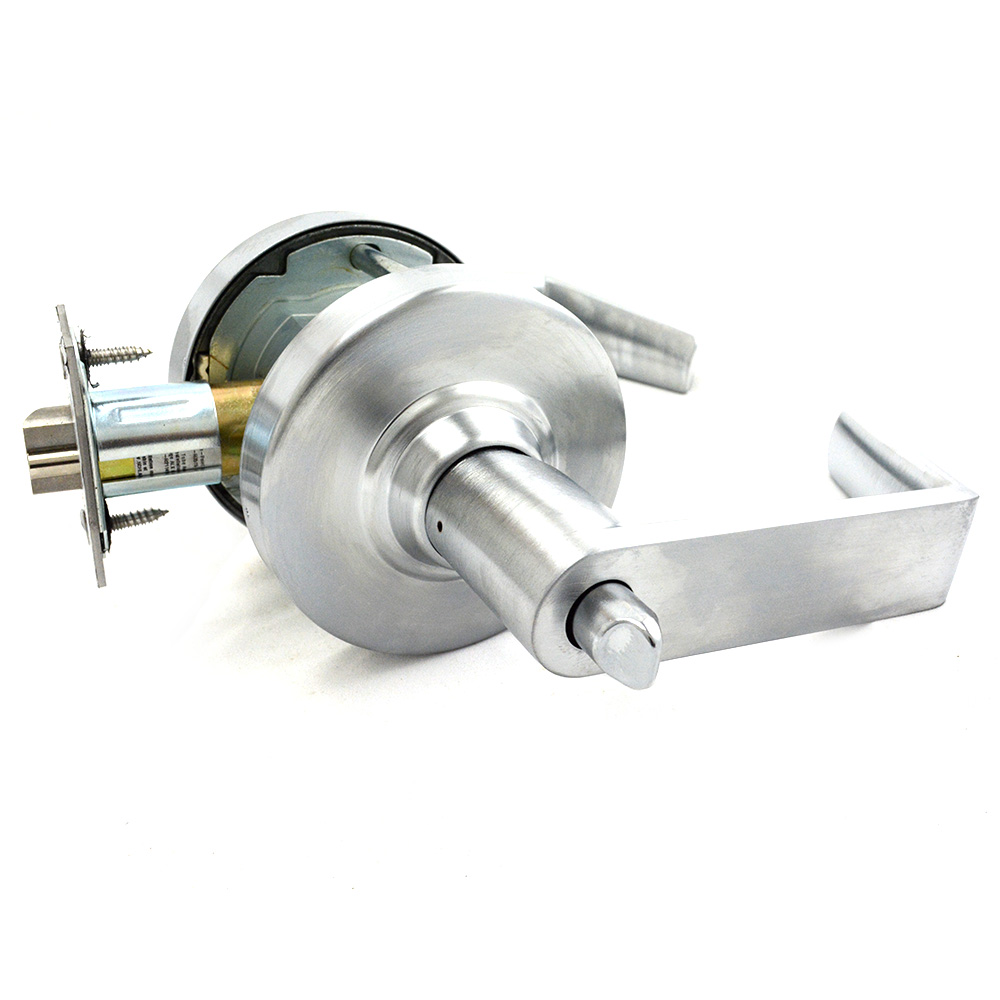

Schlage Commercial ALX53JRHO626 ALX Series Grade 2 Entry Rhodes Lever Lock offers a robust combination of security and functionality, making it an ideal choice for various commercial applications. This entry lock features a turn/push button mechanism that allows for easy access from the outside with a key or by rotating the inside turn lever. With ANSI/BHMA certification A156.2, this lock meets stringent performance standards for reliability. Designed for doors ranging from 1-3/8" to 1-3/4" in thickness, the ALX53JRHO626 includes a durable 2-3/4" deadlatch, ensuring secure closure and ease of operation. The UL listing for a 3-hour fire door adds an extra layer of safety, making it suitable for critical environments. The satin chrome finish not only enhances its aesthetic appeal but also provides resilience against wear and tear. Key specifications include a crossbore size of 2-1/8" with two 5/16" post holes, a 4-9/16" lever with a 2-15/16" projection, and a 3-7/16" rose design. The lock is reversible for versatile installation options and comes with a limited 10-year mechanical and 3-year electro-mechanical warranty. Trust the Schlage Commercial ALX53JRHO626 for reliable security tailored to your needs.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F109 - Entry/Office
Ansi Function Description: Entry/Office
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Schlage FSIC Less Core
Cylinders Present: Single Cylinder
Design: Rhodes Lever
Dimension: 4-9/16" Lever with 2-15/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 53-Entrance Lock
Function Family: Entrance
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267042
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: RHO - Rhodes
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Rhodes
Leverknob Design: RHO - Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Entrance Lock
Manufacturer Function Description: Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked. Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever. Inside lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
Num Pins: 6
Order_ Qty: 1
Origin: Mexico
PO date: 2024-09-29
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4540298
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 2-15/16"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: RHO - Rhodes
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: J
Structure Function: 53
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 626
Structure Outside Trim: RHO
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: LOCK SETS
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 194555043176
