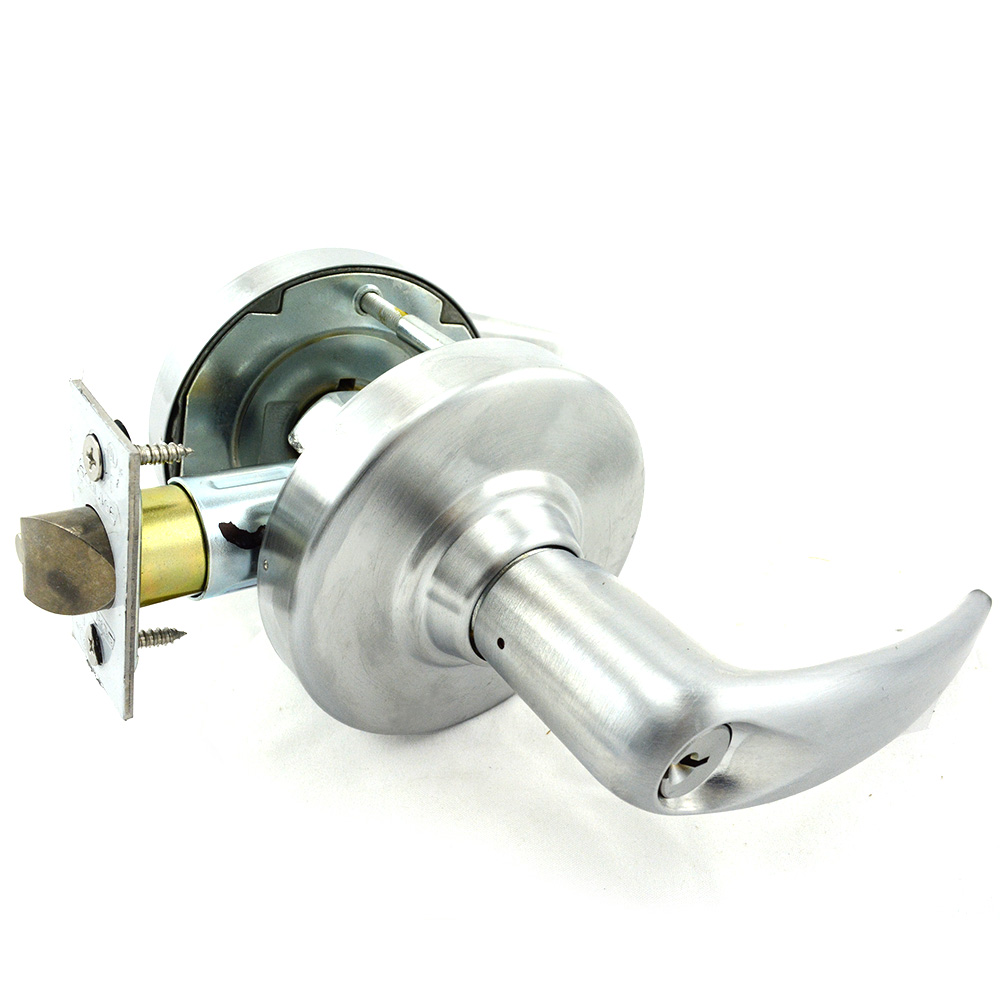

Schlage Commercial ALX70PATH626 ALX Series Grade 2 Classroom Athens Lever Lock offers a blend of security and elegance, making it an ideal choice for educational and commercial environments. Featuring a durable satin chrome finish, this lock not only enhances the aesthetic appeal of your doors but also ensures longevity with its steel and zinc dichromated construction. Designed for versatility, the ALX70PATH626 accommodates doors ranging from 1-3/8" to 1-3/4" thick and includes a reversible handing feature for easy installation in various settings. Its 2-3/4" backset and 2-1/8" crossbore size make it compatible with standard door preparations. The lock is equipped with a 47267042 2-3/4" deadlatch and utilizes a 6-pin C keyway for secure access control. The Rhodes Rose design adds a touch of sophistication, while the ANSI strike ensures reliable performance. Additionally, the lock is UL listed for 3-hour fire doors, meeting stringent safety standards. With a 10-year limited warranty, the Schlage ALX70PATH626 stands as a testament to quality and reliability in mechanical locksets, perfectly suited for high-traffic areas where security is paramount.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F84 - Classroom
Ansi Function Description: Classroom
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Athens Lever
Dimension: 4-9/16" Lever with 3-5/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 70-Classroom Lock
Function Family: Classroom
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: Everest 29 S123
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267042
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: ATH - Athens
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Classroom Lock
Manufacturer Function Description: Outside lever locked and unlocked by key. Inside lever always unlocked for immediate egress.
Manufacturer Warranty: 10 Year Limited Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4541274
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-5/16"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: RHO - Rhodes
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: P
Structure Function: 70
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 626
Structure Outside Trim: ATH
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 194555044098
