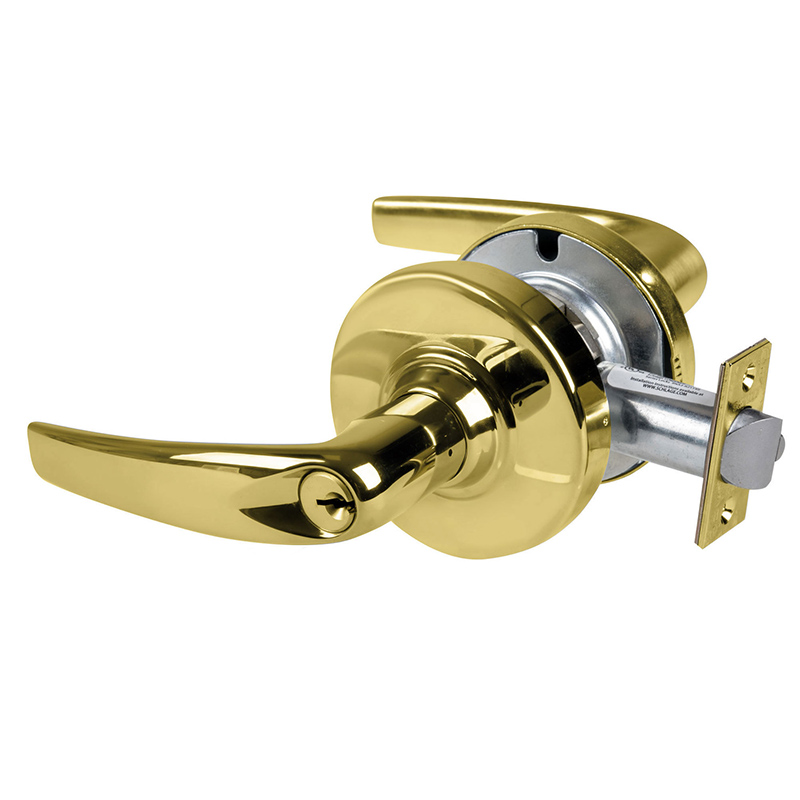

Schlage Commercial ALX80PATH605 ALX Series Grade 2 Storeroom Athens Lever Lock with C Keyway combines robust security with ease of use, making it an ideal choice for commercial environments. Designed for storeroom applications, this lock features a fixed outside lever, allowing entry by key only, while the inside lever remains always unlocked for convenient exit. This lock is ANSI/BHMA Certified A156.2, ensuring it meets high standards for quality and durability. It fits doors ranging from 1-3/8" to 1-3/4" in thickness and includes a 2-3/4" deadlatch for added security. Additionally, the product is UL Listed for 3-hour fire door applications, providing peace of mind in emergencies. The Athens lever design and bright brass finish enhance its aesthetic appeal while delivering reliable performance. With a 6-pin cylinder and C keyway, it offers a balanced level of security for everyday use. The lock's dimensions include a 4-9/16" lever with a 3-5/16" projection and a 3-7/16" rose, ensuring a sleek fit on various door types. Backed by a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, the Schlage ALX80PATH605 is a trusted choice for those seeking strength and style in architectural door hardware.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Athens Lever
Dimension: 4-9/16" Lever with 3-5/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Bright Brass
Finish Code: 605
Finish Description: Bright Brass
Finish Family: Polished Brass
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: C Keyway
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267042
Latch Type: Deadlatch
Lever Knob: Lever
Lever Knob Design: ATH - Athens Lever
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom Lock
Manufacturer Function Description: Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4541274
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-5/16"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Wood/Metal Screws
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4"
Structure Cylinder: P
Structure Function: 80
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 605
Structure Outside Trim: ATH
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
