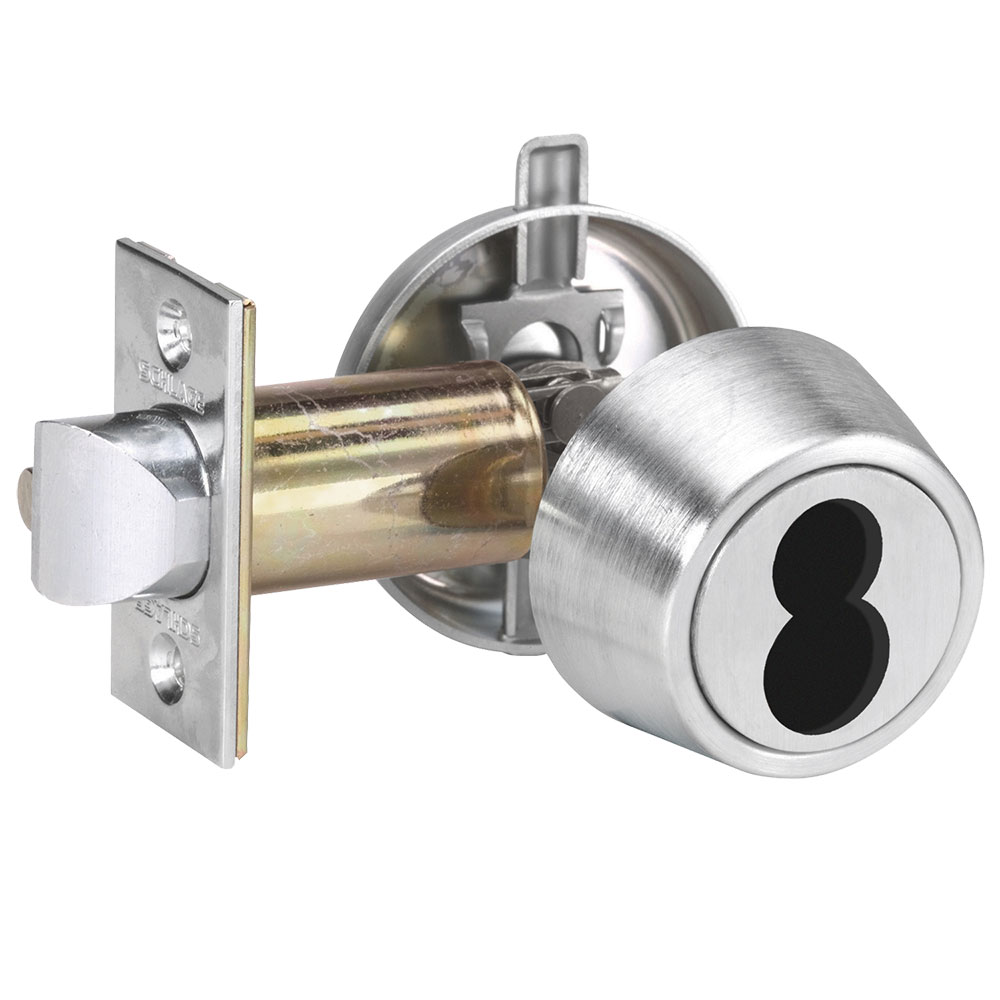

Schlage B250J 626 NHO Grade 2 Single Cylinder DeadlatchSchlage B250J 626 NHO Grade 2 Single Cyl Deadlatch offers a robust solution for commercial applications, making it an ideal choice for storage cupboards, utility panels, and non-fire rated service ducts. This Grade 2 deadlatch is designed with versatility in mind, suitable for fire-rated duct doors when paired with a B160 Rose & Turn. Featuring a satin chrome finish, the B250J is not only aesthetically pleasing but also durable against wear and tear. Its 9/16" throw resists pry-in attacks and shimming, enhancing security. The precision-built brass 6-pin cylinder, equipped with phosphor bronze springs and nickel silver pins, ensures longevity and smooth operation. This model accepts a variety of high-security cylinders, including the Primus XP and UL437 listed options. The thumbturn holdback feature allows the deadlatch to be retained in a retracted position when needed, providing ease of use. Additionally, the exclusive concealed wood frame reinforcer protects the wood jamb against kick-in attacks, ensuring added security. With a 10-year limited warranty, this deadlatch is a trusted choice for professionals seeking reliable door hardware. The Schlage B250J is built to withstand the demands of commercial environments while providing peace of mind.
Grade 2 Single Cyl Deadlatch
Grade 2 Single Cylinder Deadlatch, Schlage FSIC Less Core, Non-Holdback Turn, 2-3/8" Backset, Satin Chrome Finish
The B250 Series is a range of deadlatches designed for commercial applications. The B250 Series is ideally suited for storage cupboards and non-fire rated service ducts. The B250 is suitable for fire rated duct doors when fitted with a B160 Rose & Turn.
Ideal for pool, apartment and condominium gates, utility panels and pipe chases.
Tough and reliable, the Schlage B250 Series has been considered the industry standard for tubular deadlatches for decades. Accepts Primus XP access control cylinder, Primus UL437 Listed high security cylinder, full size interchangeable core cylinder and Primus interchangeable core cylinder.
- 9⁄16" (14 mm) throw deadlatch resists pry-in attacks and “shimming” of the latch
- Precision-built brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and smooth operation
- Tough nickel silver keys for smooth, long-lasting operation
- Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
- Cylinder collar reinforced with security inserts to resist wrenching and prying
- Thumbturn "holdback" feature retains the deadlatch in a retracted position when desired
Attributes
Ansi Function: E0122 - Single Cylinder Deadlatch
Bolt Projection: 1/2" Latch
Commercial Residential: Commercial
Cylinder Type: Schlage FSIC Less Core
Door Thickness: 1-1/2" - 2-1/8"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Function: 250-Single Cylinder Deadlatch
Grade: Grade 2
Installation: Commercial
Limited Warranty: 10 Years
Lock Face Size: 2-1/4" x 1-1/8"
Pack Height: 3"
Pack Length: 5.75"
Pack Qty: 1
Pack Width: 4.5"
Series: B250 Series Deadbolts
Ship Weight: 2 lbs.
Std Latch Backset Dim: 2-3/8"
Std Latch Number: 12-100
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 2-3/4"
Std Strike Number: 10-001
Std Strike Type: T-Square Corner
Std Strike Width: 1-1/8"
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
