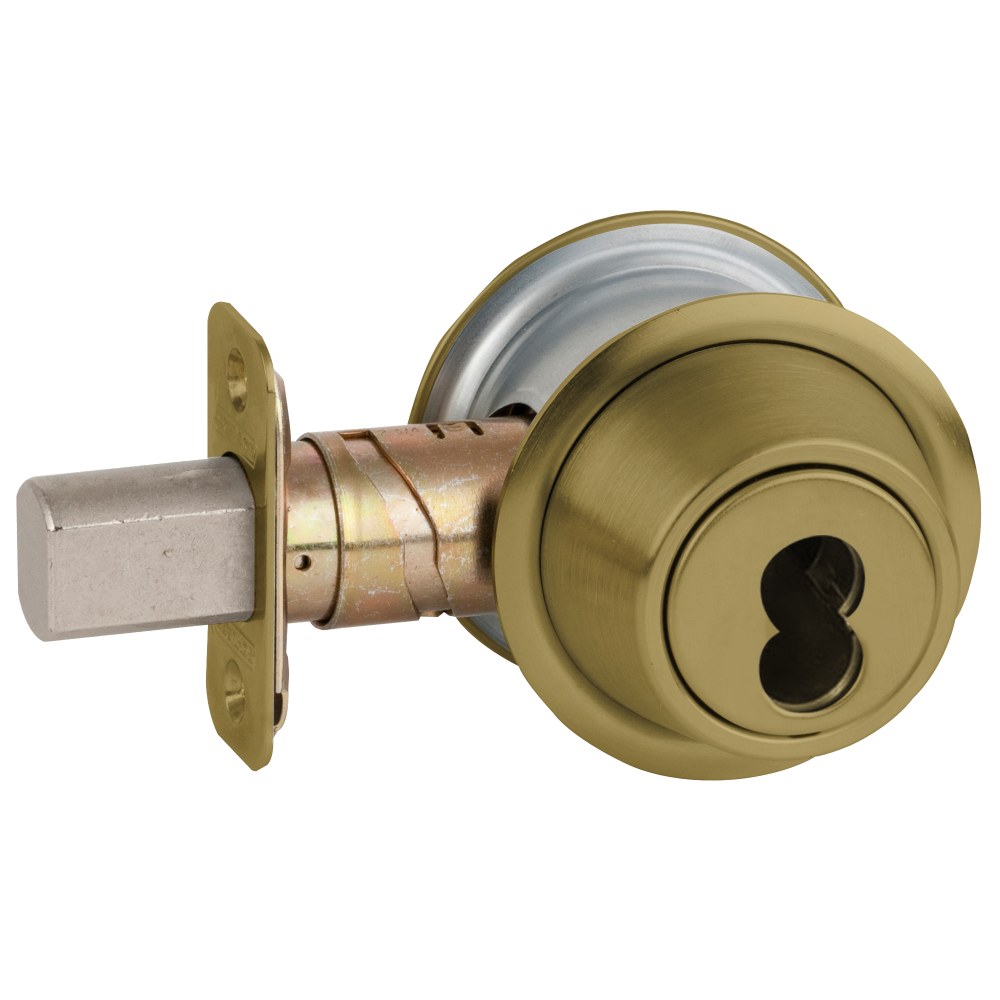

Schlage B560B 609 Single Cylinder Deadbolt offers robust security with a Grade 3 rating, making it an ideal choice for both commercial and residential applications. This single cylinder deadbolt features SFIC prep for a less core setup and is designed to accommodate adjustable backsets of 2-3/8" and 2-3/4", ensuring a perfect fit for various door types. Engineered with locksmiths in mind, the B560B enhances lock strength with its thicker metal security strike on the jamb side, complete with a third screw for deeper anchoring. The integrated anti-pry shield protects the latch, while the 10% larger diameter deadbolt and seamless steel latch construction ensure durability and resistance against tampering. Installation is streamlined with an ADA-compliant thumbturn that is large and easy to use, along with an integrated trim piece that reduces assembly complexity. This deadbolt meets UL 10B and UL 10C requirements, underscoring its commitment to safety and reliability. The satin brass finish, coupled with its blackened satin relieved clear coat, adds an elegant touch to any door. Upgrade your security with the Schlage B560B, a deadbolt that redefines strength and functionality in door hardware.
Single Cylinder Deadbolt
Grade 3 Single Cylinder Deadbolt, SFIC Prep Less Core, Adjustable 2-3/8" and 2-3/4" Backset, Satin Brass Blackened Satin Relieved Clear Coated Finish
The B500 Series deadbolt accepts every Schlage cylinder on the market, fits virtually every door you service, and enhances lock strength on the jamb side of the door.
A revolutionary new deadbolt that delivers higher security and tougher performance.
Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
Manufacturer surcharge: 3.5%
Ansi Function: E0152 - Single Cylinder Deadbolt
Bolt Projection: 1 In.
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-5/8 In. - 2 In.
Dust Box: None
Finish: 609/US5
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 3
Installation: Commercial
Lock Face Size: 2-1/4 In. x 1 In.
Pack Height: 3"
Pack Length: 5.75"
Pack Qty: 1
Pack Width: 4.5"
Pbs Options: 220322805
Series: B500 Series Deadbolts
Ship Weight: 2 lbs.
Std Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Std Latch Number: 12-287
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4 In.
Std Strike Number: 10-094
Std Strike Type: Flat
Std Strike Width: 1-1/8 In.
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
