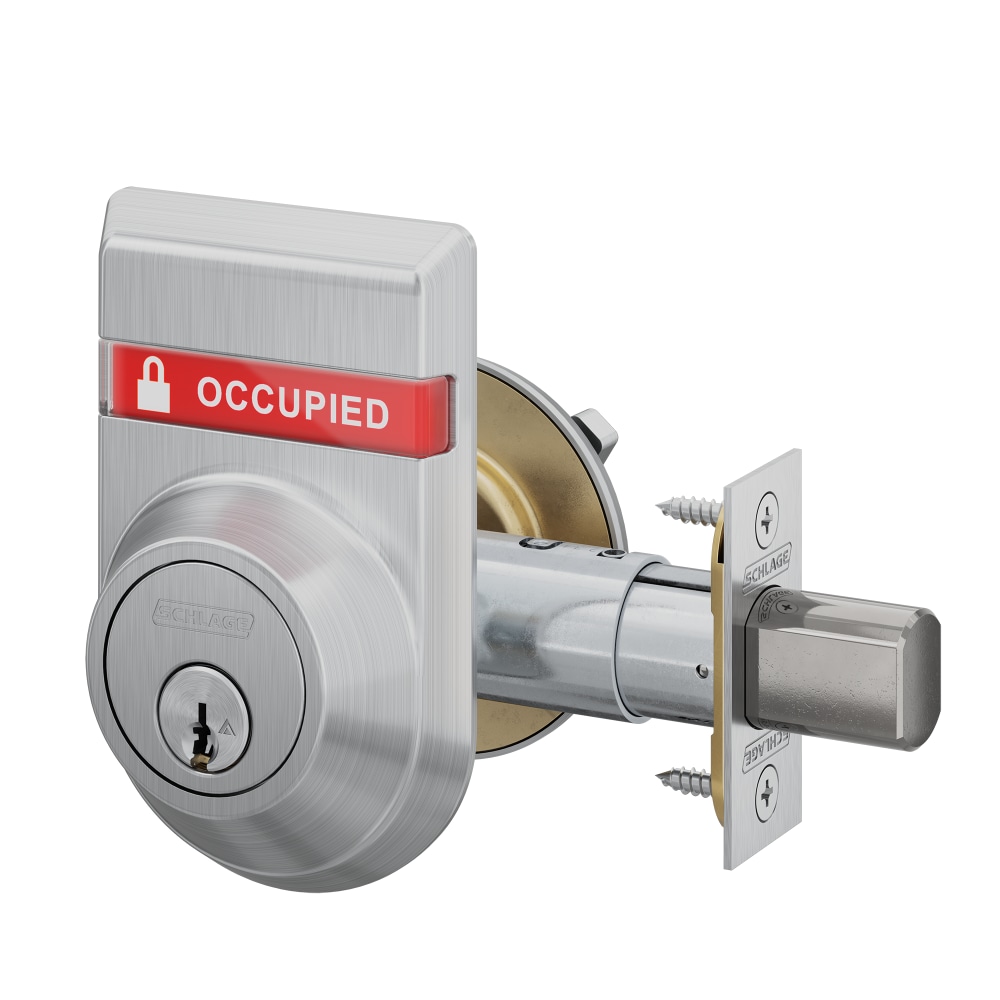

Schlage B560B 626 OS-OCC Single Cylinder Deadbolt combines security and functionality in a sleek satin chrome finish. This Grade 3 deadbolt features a single cylinder design, allowing for key access from the outside and a thumbturn on the inside, making it user-friendly for any environment. With its SFIC prep and less core, the B560B is designed for versatility and ease of installation, fitting doors with thicknesses ranging from 1-5/8" to 2". One of the standout features of this deadbolt is its outside indicator that clearly displays "VACANT/OCCUPIED" status, enhancing privacy and security. The adjustable backset ensures compatibility with a variety of door configurations, while the integrated anti-pry shield offers added protection against unauthorized access. The thicker metal security strike on the jamb side and the seamless steel latch construction provide enhanced durability and strength. Additionally, the B560B meets UL 10B and UL 10C requirements, ensuring it adheres to rigorous safety standards. With a large, ADA-compliant thumbturn and a generous three-year limited warranty, this deadbolt is not only practical but also designed for long-lasting performance. Ideal for commercial applications, the Schlage B560B is a reliable choice for those prioritizing security and ease of use.

Single Cylinder Deadbolt

Grade 3 Single Cylinder Indicator Deadbolt, Key Cylinder Outside/Thumbturn Inside, SFIC Prep, Less Core, Outside Indicator "VACANT/OCCUPIED", 1-5/8" - 2" Door Thickness, Satin Chrome Finish

The B500 Series deadbolt from Schlage offers some of the toughest, most versatile Grade 2 deadbolts in the business. Designed by locksmiths for locksmiths, B500 Series can accept every Schlage cylinder format and fit virtually every door you service. It features enhanced lock strength on the jamb side of the door and is offered in most functions with optional single- or dual-sided lock status indicator trim options. Large window size and Schlage’s patented 180-degree visibility will change forever the way you look at deadbolts.

A revolutionary new deadbolt that delivers higher security and tougher performance.

Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.

• Adjustable backset with lock-in-place helix design
• Integrated anti-pry shield protects latch
• Thicker metal security strike back-up on jamb side
• Security strike on jamb has third screw for stronger, deeper anchoring
• Added space inside strike box for true deadlatch
• Seamless steel latch construction along the entire length of the bolt housing
• 10% larger diameter deadbolt
• Zinc bolt with spinning hardened steel pin inside
• Tapered front housing that can’t be unscrewed
• Integrated trim piece for fewer pieces out of the box
• Large, easy-to-use, ADA compliant thumbturn
• Meets UL 10B andd UL 10C requirements

Resources

• B500 Series Data Sheet
• B500 Series Deadbolts Cut Sheet
• B500 Series Installation Instructions
• B560, 61, 62, 63 Template
• B571 Template
• Schlage B Series Indicator Pricing Addendum
• Schlage B Series Service Manual
• Von Duprin Finishes Chart
