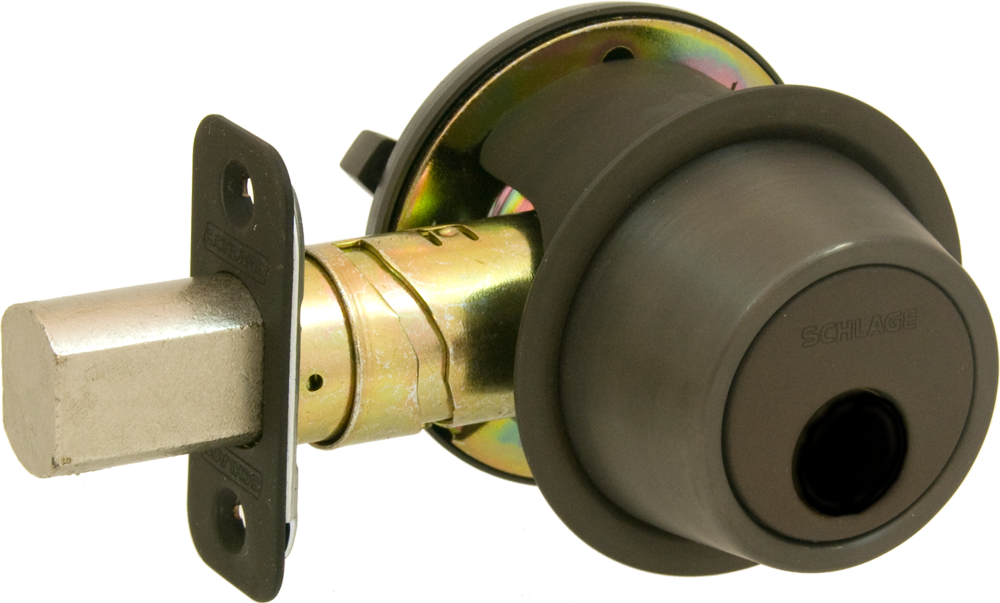

Schlage Commercial B560L613 Grade 2 Single Cylinder Deadbolt Less Cylinder offers robust security with a sophisticated design, perfect for both commercial and institutional applications. This deadbolt is engineered to provide reliable protection, featuring a single cylinder mechanism that allows for key access from the outside while enabling an easy inside turn for retraction. Constructed from durable zinc base material, it meets ANSI Certified A156.36 standards and is UL Listed for use on 3 Hour Fire Doors, ensuring safety and compliance. With an adjustable backset of 2-3/8" or 2-3/4", it fits doors ranging from 1-3/8" to 1-7/8" thick, making it versatile for various entryways. The oil rubbed bronze finish not only enhances its aesthetic appeal but also provides long-lasting durability. The deadbolt features a square corner deadbolt strike measuring 1-1/8" x 2-3/4", adding to its strength and reliability. It is part of the B500 Series and comes with a limited 3-year mechanical warranty, underscoring Schlage’s commitment to quality craftsmanship. Elevate your security with the Schlage Commercial B560L613, where functionality meets style.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: 141520, B560L613, B560P613
Ansi Function: E0152 - Single Cylinder Deadbolt
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Protection: 1 In.
Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Lock Sets, Single Cylinder, Single Cylinder (Commercial)
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Included: No
Cylinder Type: 6-Pin Cylinder
Deadbolt Functions: Single Cylinder x Thumb Turn
Deadbolt Type: Commercial
Dimension: 2-5/8" Diameter
Door Application: Commercial Deadbolts
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Dust Box: None
Faceplate Style: Circular Drive-In, Radius Corner, Square Corner
Finish: Oil Rubbed Bronze
Finish Code: US10B
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Keyway Brand: Schlage
Knob/ Lever Style: Inside Thumbturn
Language: English
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Drive-In, Radius Corner, Square Corner
Latch Bolt Faceplate Size: 1" x 2-1/4"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Latchbolt Type: Deadbolt
Lock Category: Deadbolts
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Series: B500 Series
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Size: 2-3/4" x 1-1/8"
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Schlage
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
