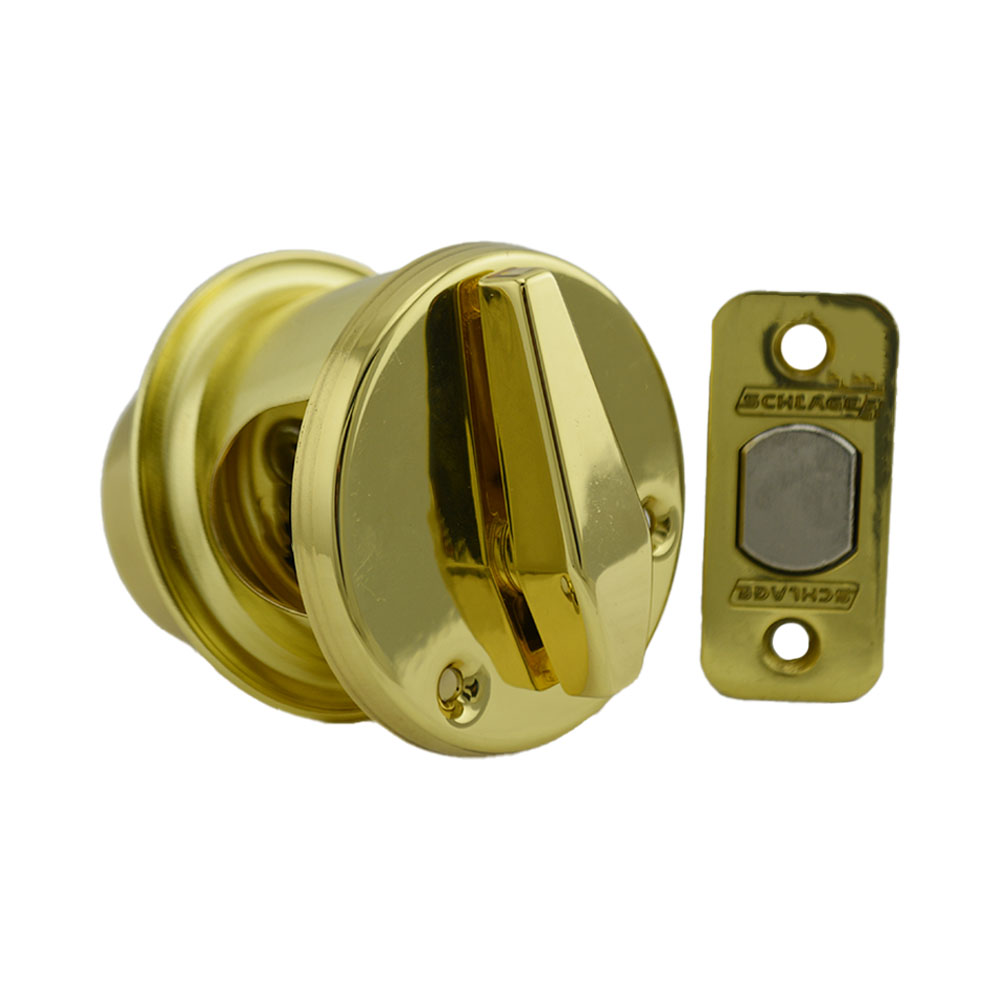

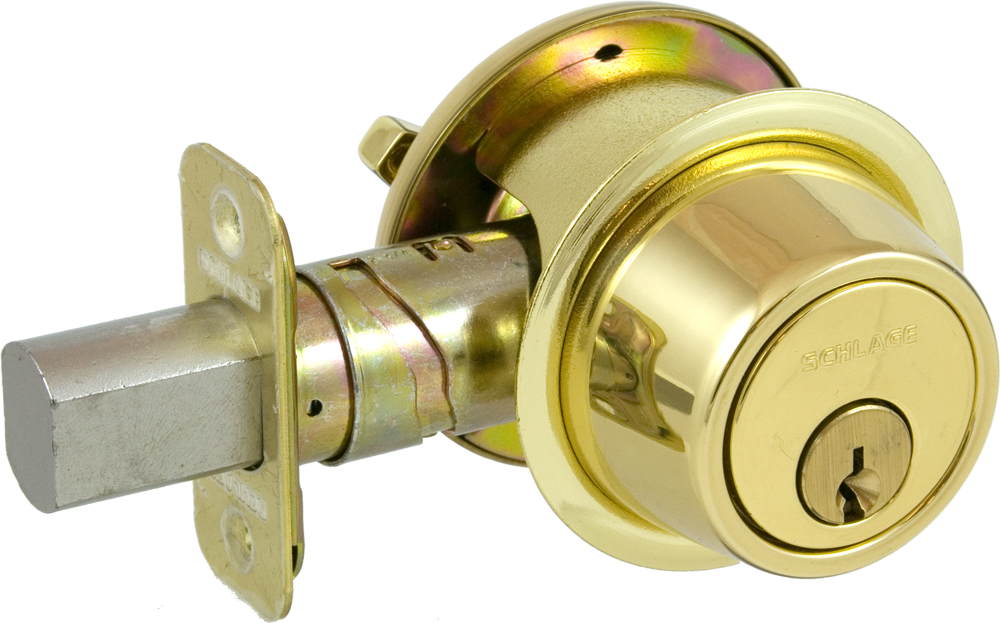

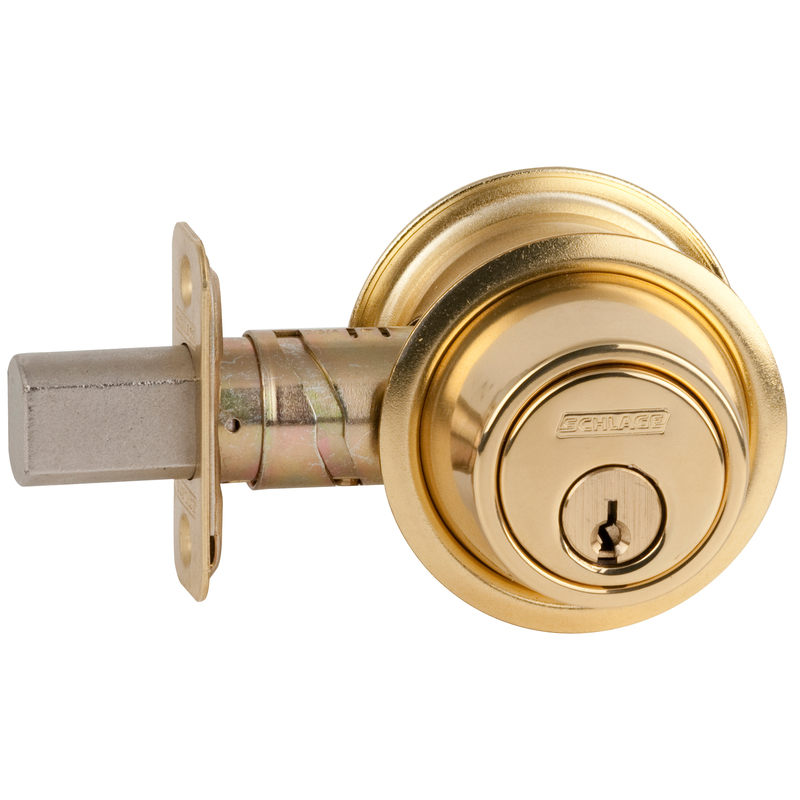

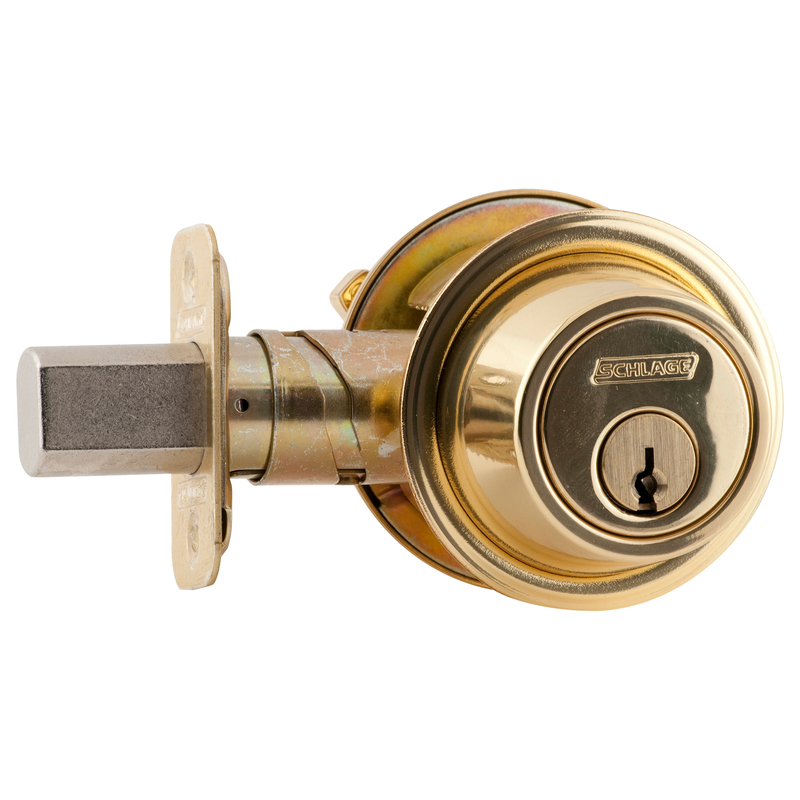

Schlage Commercial B560P605 Grade 2 Single Cylinder Deadbolt with C Keyway KA4 offers robust security for both commercial and institutional applications. Designed for durability and reliability, this deadbolt features a single cylinder design, allowing the deadbolt to be thrown or retracted with a key from the outside or via an inside turn unit. It is ANSI Certified A156.36 and meets the demands of a Grade 2 locking system, ensuring peace of mind for building professionals and homeowners alike. The B560P605 accommodates standard door thicknesses ranging from 1-3/8" to 1-7/8", making it versatile for various door types. Its adjustable backset options of 2-3/8" or 2-3/4" further enhance compatibility. Constructed from a zinc base, this deadbolt is finished in a bright brass finish, providing both aesthetic appeal and resistance to wear. Additionally, this deadbolt is UL Listed for 3-hour fire door applications, highlighting its commitment to safety. With a limited 3-year mechanical warranty, the Schlage B560P605 stands as a testament to quality craftsmanship. Choose this reliable mechanical lockset to secure your property and enhance your peace of mind.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: 043156120185, 141087, B560L605, B560P605
Ansi Function: E0152 - Single Cylinder Deadbolt
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder, Pinned 5
Dimension: 2-5/8" Diameter
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Dust Box: None
Finish: Bright Brass
Finish Code: 605
Finish Color: Polished Brass
Finish Description: Bright Brass
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Keyway: S123
Knob/ Lever Style: Inside Thumbturn
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Drive-In, Radius Corner, Square Corner
Latch Bolt Faceplate Size: 1" x 2-1/4"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Lock Category: Deadbolts
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Order_ Qty: 1
PO date: 2024-09-05
Restricted Keyway: No
Series: B500 Series
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Size: 2-3/4" x 1-1/8"
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Schlage
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Upc: 043156120185
