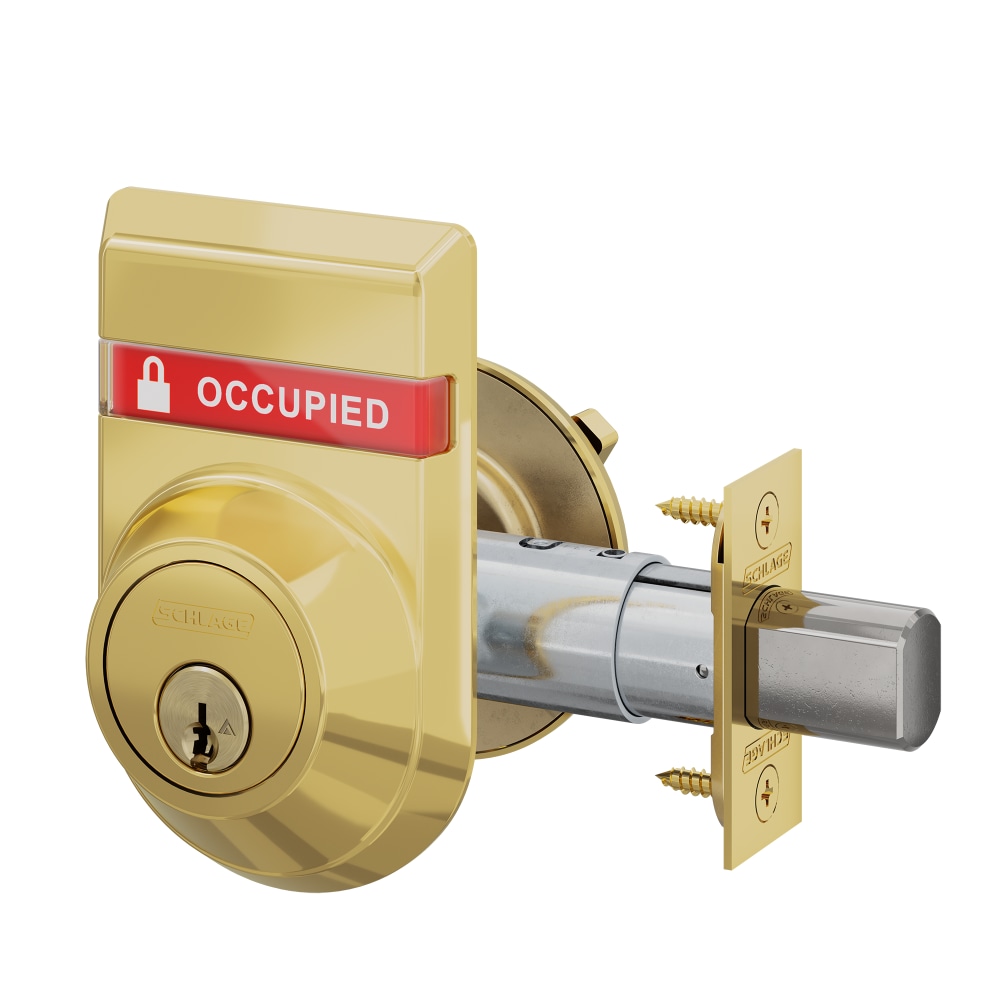

Schlage Commercial B560P605OSOCC Grade 2 Single Cylinder Deadbolt offers robust security with a blend of durability and style. This deadbolt is designed for versatility, allowing for operation with a key from the outside or an inside turn unit, making it ideal for both residential and commercial applications. The ANSI Certified A156.36 rating ensures it meets high-performance standards. Engineered for a door thickness range of 1-3/8" to 1-7/8", this deadbolt features an adjustable backset of 2-3/8" or 2-3/4", accommodating various door setups. Its UL listing for 3-hour fire doors adds an extra layer of safety, making it suitable for environments where fire regulations are a concern. The bright brass finish not only enhances its aesthetic appeal but also provides lasting protection against wear and tear. Constructed from a sturdy zinc base with a 6-pin cylinder, the B560P605OSOCC includes a square corner deadbolt strike for secure installation. Backed by a limited 3-year mechanical warranty, this deadbolt is a reliable choice for professionals seeking strength and reliability in their locking solutions. Upgrade your security with Schlage's trusted craftsmanship and advanced technology.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: $ 0.0
Ansi: A156.36, 2010
Ansi Function: E0152 - Single Cylinder Deadbolt
Application: Indicator with Text
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: 6-Pin Cylinder
Dimension: 2-5/8" Diameter
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8" - 1-7/8"
Dust Box: Metal
Finish: Bright Brass
Finish Code: 605
Finish Family: Polished Brass
Function: Single Cylinder
Grade: Grade 2
Hazardous Material: NO
Indicator Type: Outside with Text, "VACANT/OCCUPIED"
Installation: Commercial
Keying: Keyed 5
Keys: 5-pin, C section
Keyway: C Keyway
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Limited Warranty: 3 Years
Lock Face Size: 1" x 2-1/4"
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Thumbturn Inside
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Length: 3.57"
Product Width: 2.54"
Series: B500 Series
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
