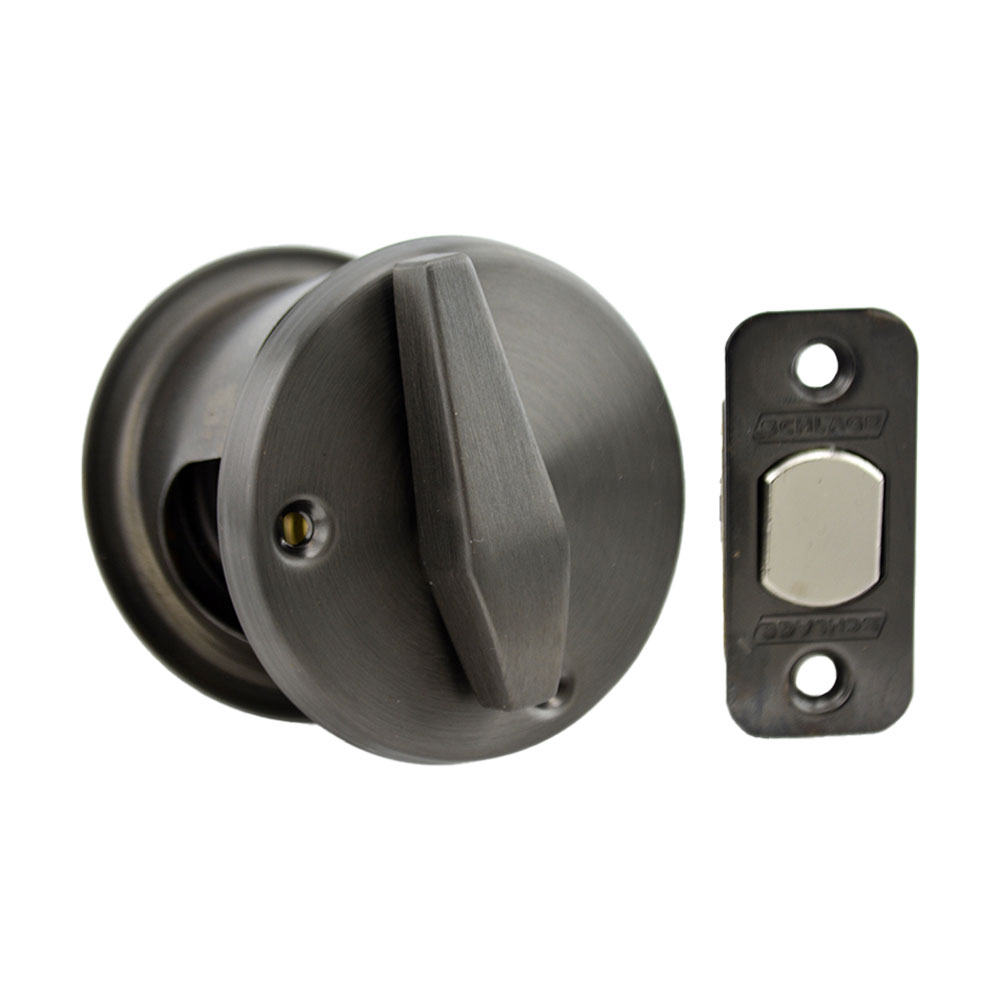

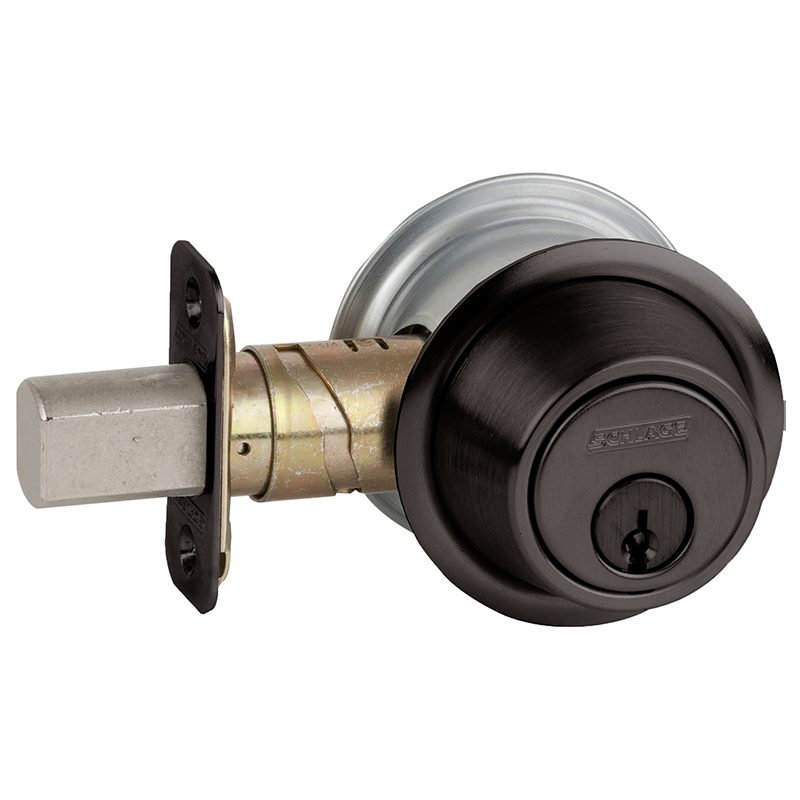

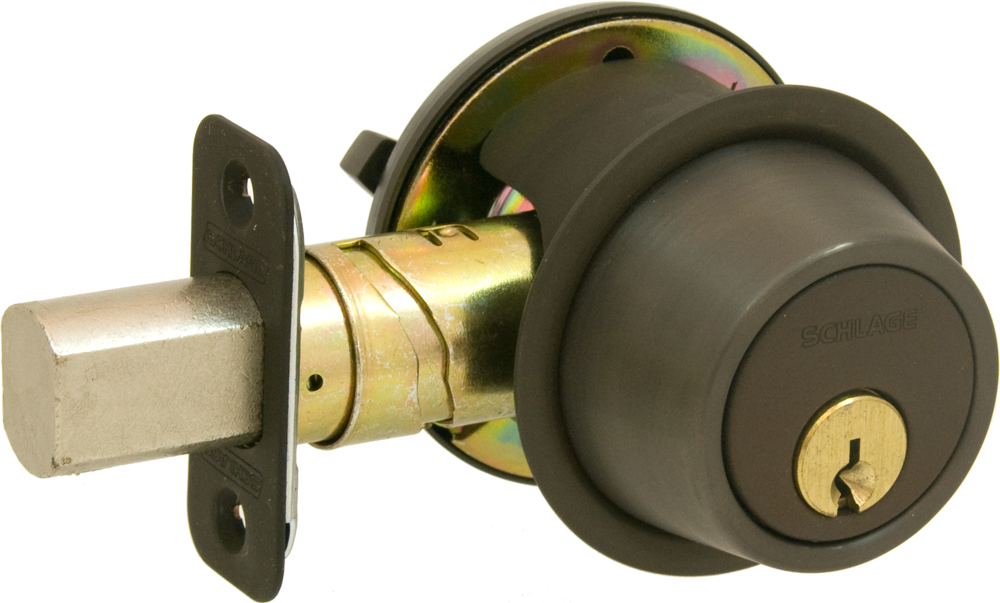

Schlage Commercial B560P613 Grade 2 Single Cylinder Deadbolt with C Keyway KA4 combines robust security with thoughtful design, making it an exceptional choice for both commercial and residential applications. This deadbolt is engineered with a single cylinder function, allowing for easy access via key from the outside or by turning the unit from the inside. Constructed from durable zinc base material, the B560P613 features an elegant oil-rubbed bronze finish that not only enhances its aesthetic appeal but also provides resistance against wear and tear. Designed to fit doors ranging from 1-3/8" to 1-7/8" thick, it accommodates adjustable backsets of 2-3/8" or 2-3/4". The deadbolt meets ANSI certification A156.36 and is UL listed for 3-hour fire doors, ensuring top-tier performance and safety. This model includes a 6-pin cylinder for enhanced security and is backed by a limited 3-year mechanical warranty. The square corner deadbolt strike measures 1-1/8" x 2-3/4", complementing the lock's robust design. With its combination of strength and style, the Schlage Commercial B560P613 stands as a reliable solution for your locking needs, providing peace of mind when it matters most.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: 3.5%
Alternate Codes: 141477, B560P613
Ansi: A156.36, 2010
Ansi Function: E0152 - Single Cylinder Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder, Pinned 5
Dimension: 2-5/8" Diameter
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Dust Box: None
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed 5
Keys: 5-pin, C section
Keyway: C
Knob/ Lever Style: Inside Thumbturn
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Drive-In, Radius Corner, Square Corner
Latch Bolt Faceplate Size: 1" x 2-1/4"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Category: Deadbolts
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Thumbturn Inside
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-10-04
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Restricted Keyway: No
Series: B500 Series
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Size: 2-3/4" x 1-1/8"
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Schlage
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156131693
