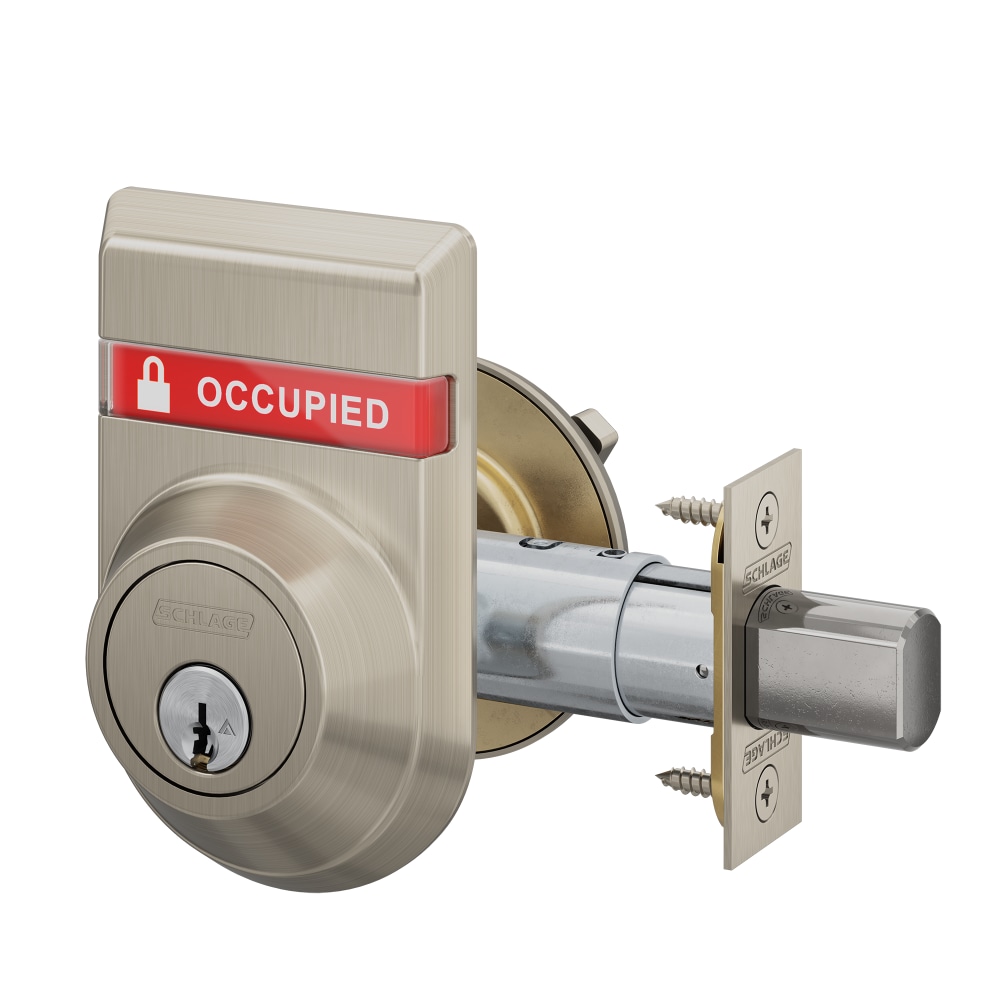

Schlage Commercial B560P619OSOCCISLOC Grade 2 Single Cylinder Deadbolt offers robust security with its reliable design and advanced features. This deadbolt allows for convenient access control, enabling users to lock or unlock the door from the outside with a key or from the inside with a simple turn unit. Constructed to meet the ANSI Certified A156.36 standard, this deadbolt is designed for doors ranging from 1-3/8" to 1-7/8" thick and features an adjustable backset of either 2-3/8" or 2-3/4". Notably, it is UL Listed for a 3-hour fire door, ensuring safety in critical moments. The satin nickel finish adds a touch of elegance while enhancing durability. With a 6-pin C Keyway and a zinc base material, the B560P is built for longevity and reliability. The deadbolt comes equipped with a square corner deadbolt strike (1-1/8" x 2-3/4") and includes both an outside occupied/vacant indicator and an inside locked/unlocked indicator for added functionality. Backed by a limited 3-year mechanical warranty, Schlage's commitment to quality and craftsmanship is evident in this product, making it a dependable choice for commercial applications.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi: A156.36, 2010
Ansi Function: E0152 - Single Cylinder Deadbolt
Application: Indicator with Text
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: 6-Pin Cylinder
Dimension: 2-5/8" Diameter
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8" - 1-7/8"
Dust Box: Metal
Finish: Satin Nickel
Finish Code: 619
Finish Family: Matte Silver
Function: Single Cylinder
Grade: Grade 2
Hazardous Material: NO
Indicator Type: Outside with Text, "VACANT/OCCUPIED", Inside with Text, "UNLOCKED/LOCKED"
Installation: Commercial
Keying: Keyed 5
Keys: 5-pin, C section
Keyway: C Keyway
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Limited Warranty: 3 Years
Lock Face Size: 1" x 2-1/4"
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Key Cylinder Outside x Thumbturn Inside, Dual Indicator
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Length: 3.57"
Product Width: 2.54"
Series: B500 Series
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
