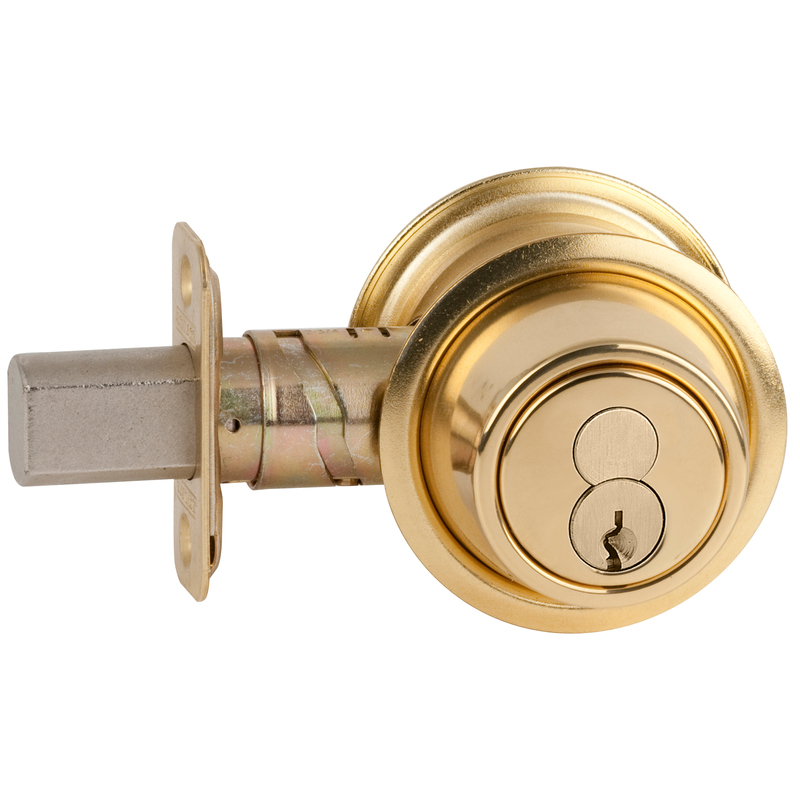

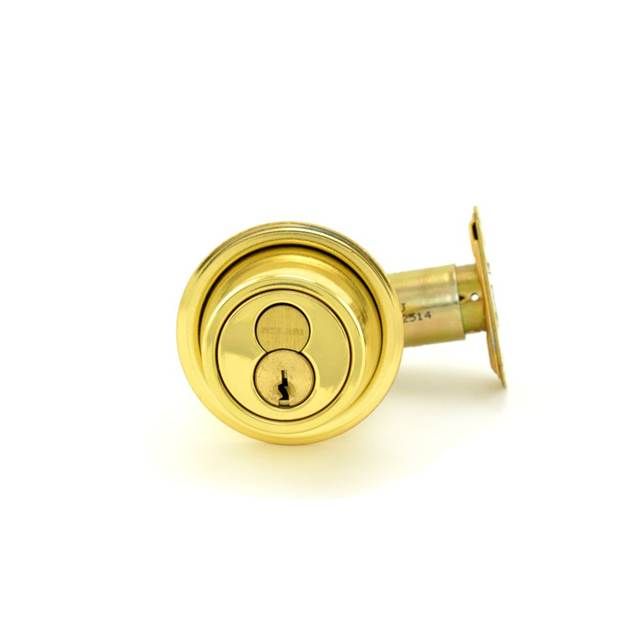

Schlage Commercial B560R605 Grade 2 Single Cylinder Deadbolt with Full Size Interchangeable Core features a robust design that ensures security for a variety of applications. This deadbolt can be thrown or retracted using a key from the outside or an inside turn unit, making it convenient for everyday use. With its ANSI Certified A156.36 rating and UL Listing for a 3-hour fire door, this deadbolt meets rigorous safety standards, ensuring durability and reliability. Designed for doors ranging from 1-3/8" to 1-7/8" in thickness, the B560R605 accommodates an adjustable backset of either 2-3/8" or 2-3/4", allowing for flexible installation options. The bright brass finish not only enhances its aesthetic appeal but also provides added protection against wear and tear. This commercial-grade deadbolt features a 6-pin cylinder with a C Keyway, ensuring secure key control. The included square corner deadbolt strike measures 1-1/8" x 2-3/4", seamlessly fitting into your door’s hardware. Backed by a limited 3-year mechanical warranty, the Schlage B560R605 is a dependable choice for those seeking a blend of security and functionality in their architectural hardware solutions.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi: A156.36, 2010
Ansi Function: E0152 - Single Cylinder Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Schlage FSIC With Core
Dimension: 2-5/8" Diameter
Door Range: 1-5/8" to 2"
Door Thickness: 1-5/8 In. - 2 In.
Dust Box: None
Finish: Bright Brass
Finish Code: 605
Finish Description: Bright Brass
Finish Family: Polished Brass
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 2
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: 5-pin, C section
Keyway: S123
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Thumbturn Inside
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Series: B500 Series
Std Keyway: S123
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156143917
