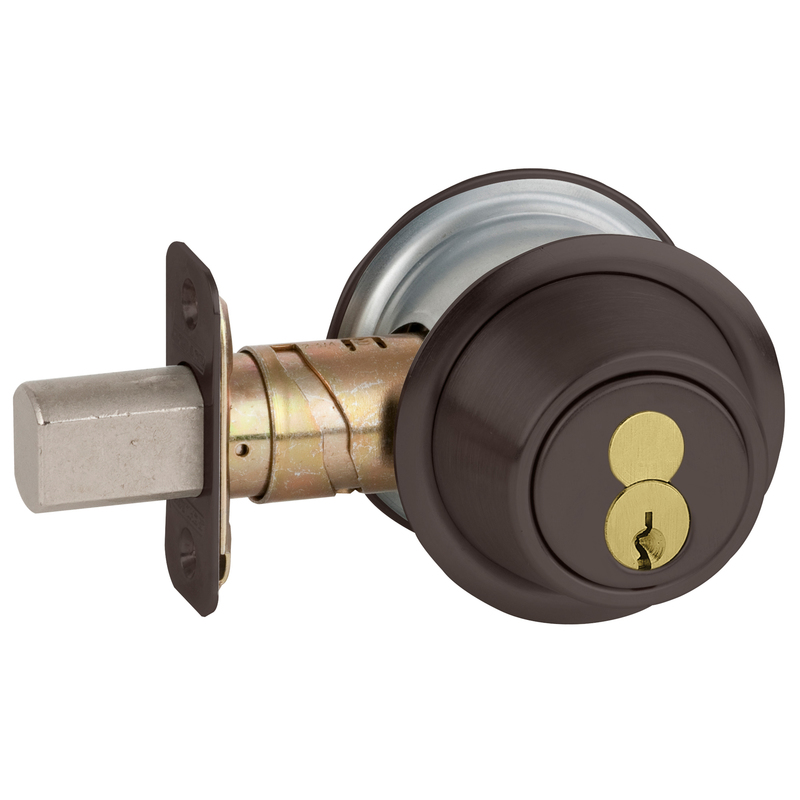

Schlage Commercial B560R613 Grade 2 Single Cylinder Deadbolt with Full Size Interchangeable Core offers robust security for a variety of applications, making it an ideal choice for commercial settings. This deadbolt features a single cylinder design, allowing it to be easily thrown or retracted by a key from the outside or via an inside turn unit. Constructed to meet ANSI A156.36 standards, this lock promises quality and durability. Designed to accommodate doors ranging from 1-3/8" to 1-7/8" thick, the B560R is versatile with an adjustable backset of 2-3/8" or 2-3/4". It is UL Listed for use on 3-hour fire doors, ensuring safety in critical moments. The oil-rubbed bronze finish not only enhances aesthetic appeal but also provides added protection against wear and tear. With a 6-pin cylinder featuring a C keyway, this deadbolt can be integrated into a larger access control system. The package includes a square corner deadbolt strike, with dimensions of 1-1/8" x 2-3/4". Backed by a limited 3-year mechanical warranty, this Schlage product delivers peace of mind and reliability for any commercial application. Upgrade your security with Schlage's trusted craftsmanship.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.36, 2010
Ansi Function: E0152 - Single Cylinder Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Schlage FSIC With Core
Dimension: 2-5/8" Diameter
Door Range: 1-5/8" to 2"
Door Thickness: 1-5/8 In. - 2 In.
Dust Box: None
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 2
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: 5-pin, C section
Keyway: S123
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Thumbturn Inside
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-11-05
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Series: B500 Series
Std Keyway: S123
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156130931
