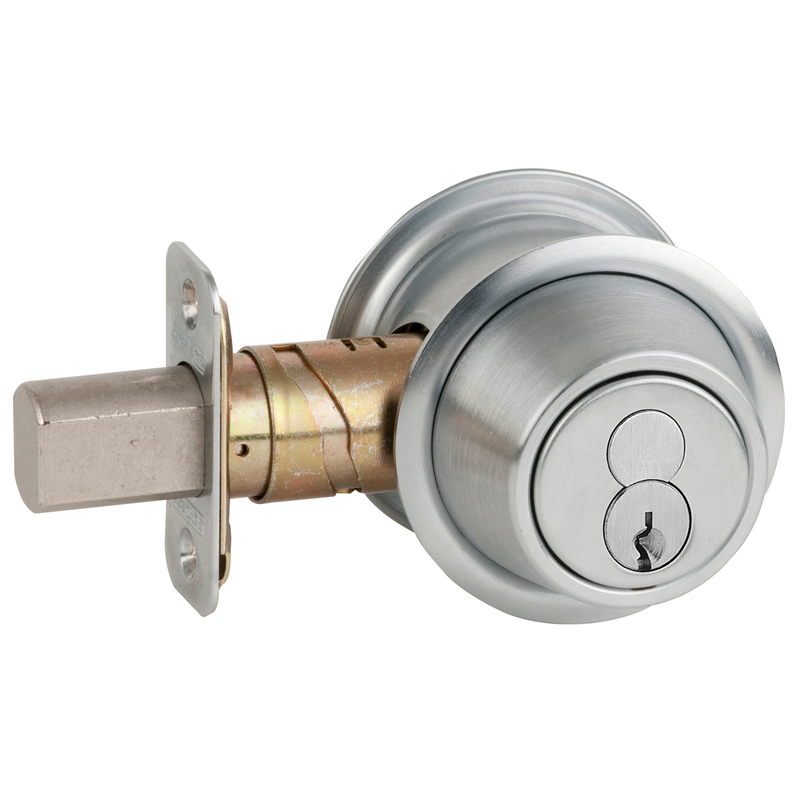

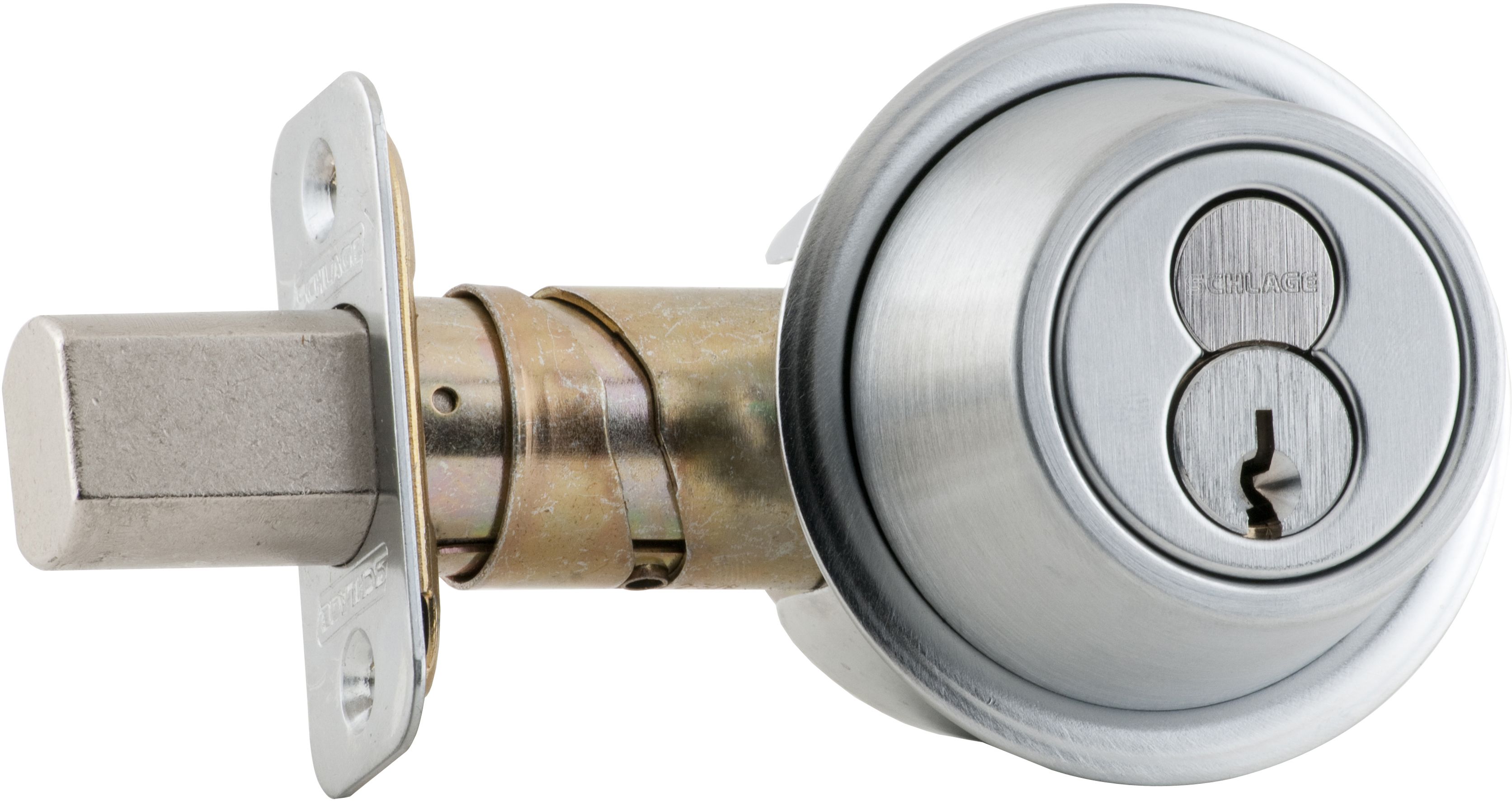

Schlage Commercial B560R626 Grade 2 Single Cylinder Deadbolt offers robust protection for various commercial environments. This deadbolt features a full-size interchangeable core with a C keyway, providing flexibility and enhanced security. The single cylinder design allows for easy operation; users can throw or retract the deadbolt using a key from the outside or an inside turn unit. Engineered to meet ANSI standards (A156.36), this Grade 2 deadbolt is suitable for a door range of 1-5/8" to 2" in thickness. It is UL listed for 3-hour fire doors, ensuring safety and compliance in critical applications. The adjustable backset accommodates both 2-3/8" and 2-3/4", while the crossbore size options of 1-1/2" or 2-1/8" make installation straightforward. Crafted with a durable satin chrome finish, the B560R626 not only performs well but also adds a modern touch to commercial spaces. The zinc base material ensures longevity, backed by a limited 3-year mechanical warranty. With six pins in its cylinder, this deadbolt delivers reliable security, making it an excellent choice for professionals seeking quality and dependability in their locking solutions.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ship via: Can Ship UPS
Ansi: A156.36, 2010
Ansi Function: E0152 - Single Cylinder Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Schlage FSIC With Core
Dimension: 2-5/8" Diameter
Door Range: 1-5/8" to 2"
Door Thickness: 1-5/8 In. - 2 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Function: 560-Single Cylinder Deadbolt Lock
Grade: Grade 2
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: 5-pin, C section
Keyway: S123
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Thumbturn Inside
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-09-29
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Series: B500 Series
Std Keyway: S123
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156130054
