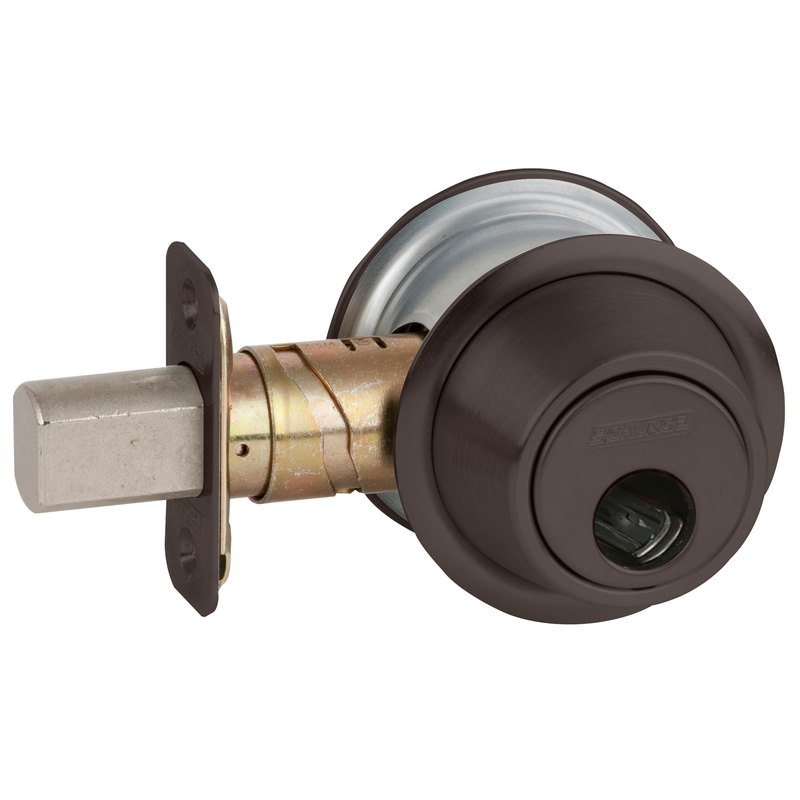

Schlage Commercial B562L643E Grade 2 Double Cylinder Deadbolt is designed to enhance security for both residential and commercial applications. This robust deadbolt features a double cylinder mechanism, ensuring that access is tightly controlled. It is part of the B500 Series, known for its reliability and durability in high-traffic environments. The deadbolt is finished in a sophisticated Aged Bronze, providing an elegant touch while complementing a variety of architectural styles. Its adjustable backset allows for easy installation at either 2-3/8" or 2-3/4", accommodating different door thicknesses and ensuring a perfect fit. With a diameter of 2-5/8", this deadbolt is compact yet highly effective. Included with the deadbolt is the 12287 latch and a square corner deadbolt strike, making it a complete solution for enhancing door security. Designed for easy shipping via UPS, the B562L643E is a practical choice for building professionals seeking a reliable locking system. By choosing Schlage, you invest in a product that stands up to the demands of both time and use, ensuring peace of mind in securing your spaces effectively.
Attributes
Ansi: A156.36, 2010
Ansi Function: E0142 - Double Cylinder Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Less Cylinder
Dimension: 2-5/8" Diameter
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Dust Box: None
Finish: Aged Bronze
Finish Code: 643E
Finish Description: Aged Bronze
Finish Family: Dark Bronze
Function: 562-Double Cylinder Deadbolt Lock
Grade: Grade 2
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Keyed Inside
No Of Inners: 1
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Product Height: 4.13"
Product Width: 2.54"
Series: B500 Series
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
