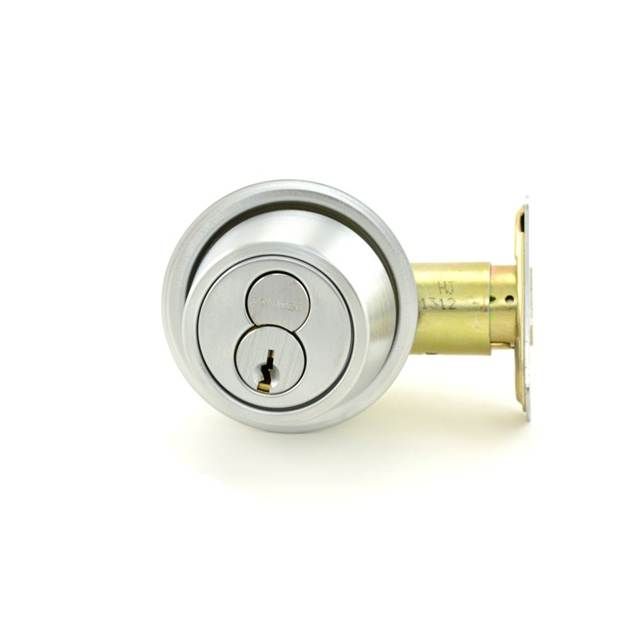

Schlage Commercial B562R626 Grade 2 Double Cylinder Deadbolt with Full Size Interchangeable Core C Keyway offers a robust solution for securing doors in commercial spaces. This deadbolt features a double cylinder design, allowing it to be thrown or retracted by a key from either side, which is particularly beneficial for doors with glass panels or high security needs. Constructed to meet ANSI Standard A156.36, this deadbolt is built for durability and reliability. It accommodates a range of door thicknesses from 1-5/8 inches to 2 inches and is compatible with adjustable backsets of either 2-3/8 inches or 2-3/4 inches. The B562R626 is UL Listed for 3-hour fire doors, ensuring it meets critical safety standards. Finished in sleek satin chrome, this lock not only provides security but also enhances the aesthetic of any door. The strike features a square corner design, measuring 1-1/8 inches by 2-3/4 inches, ensuring a proper fit and function. With a 6-pin cylinder and a limited 3-year mechanical warranty, the Schlage B562R626 is a reliable choice for those seeking a high-performance locking solution in commercial settings.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi: A156.36, 2010
Ansi Function: E0142 - Double Cylinder Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Schlage FSIC With Core
Dimension: 2-5/8" Diameter
Door Range: 1-5/8" to 2"
Door Thickness: 1-5/8 In. - 2 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Description: Satin Chrome
Finish Family: Matte Silver
Function: 562-Double Cylinder Deadbolt Lock
Grade: Grade 2
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: 5-pin, C section
Keyway: S123
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Keyed Outside x Keyed Inside
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-10-30
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Series: B500 Series
Std Keyway: S123
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156130061
