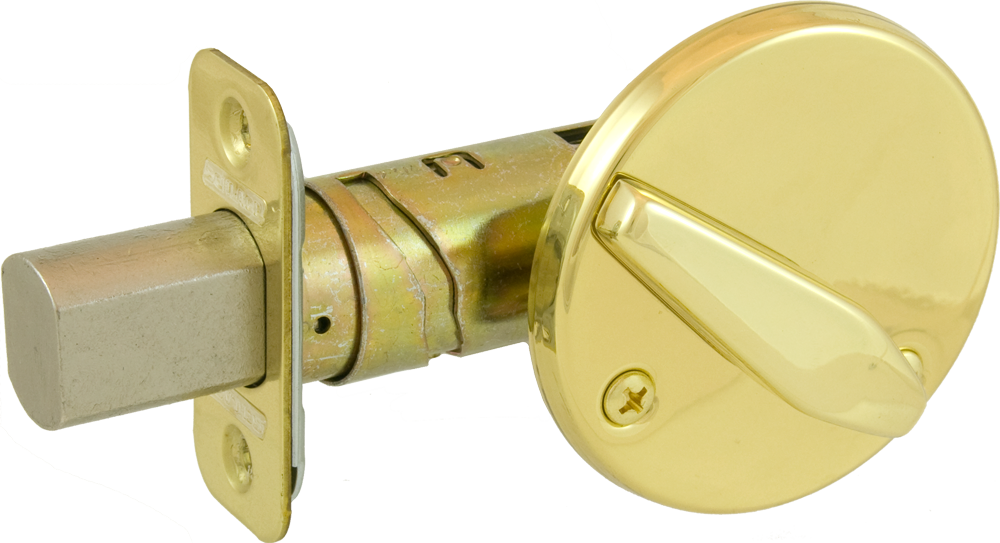

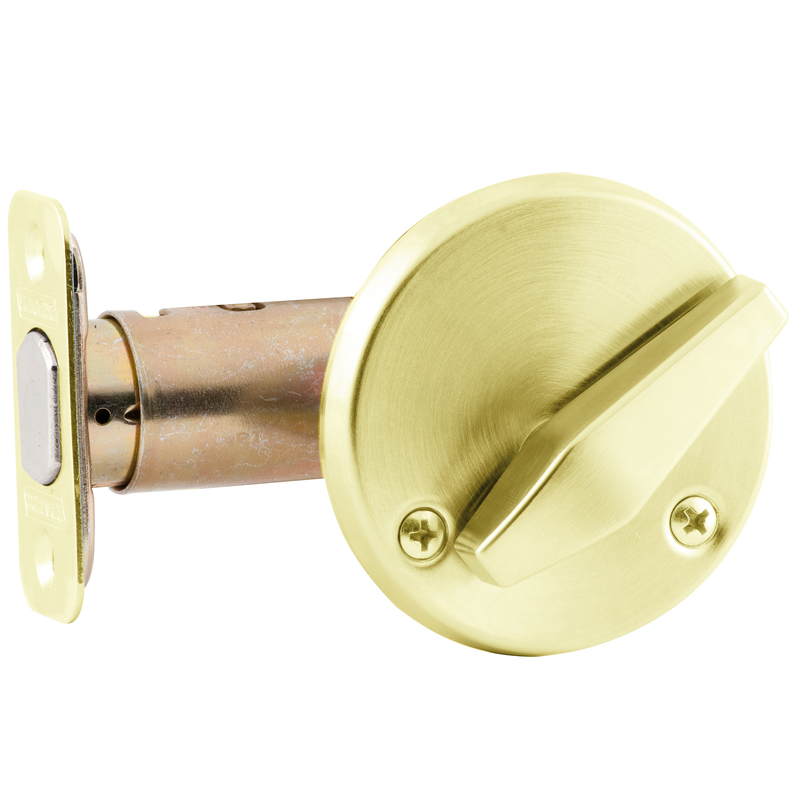

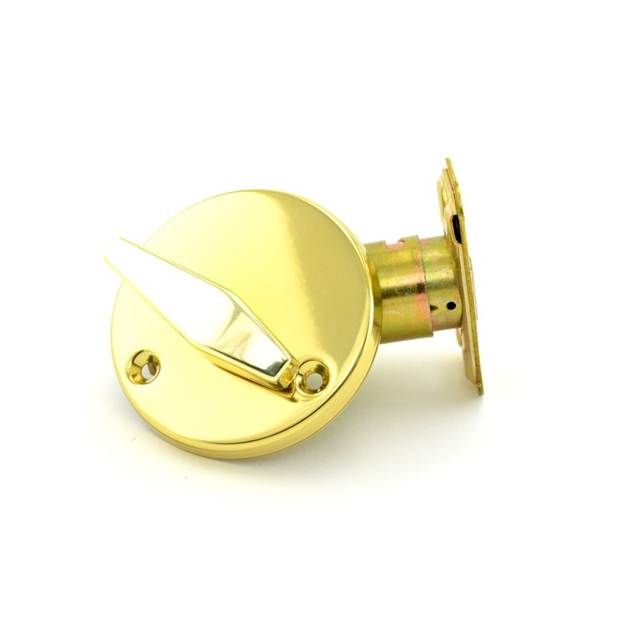

Schlage Commercial B580605 Grade 2 Turn Only Deadbolt with 12287 Latch and 10094 Strike in Bright Brass Finish offers a robust security solution for a variety of applications. Designed for durability, this deadbolt is crafted from a strong zinc base material, ensuring long-lasting performance in commercial environments. With a turn-only function, it allows for easy locking and unlocking, making it ideal for areas that do not require outside trim. This model meets the ANSI A156.36 certification and is UL Listed for 3-hour fire doors, providing peace of mind in both safety and compliance. It accommodates door thicknesses ranging from 1-3/8" to 1-7/8" and features an adjustable backset of 2-3/8" or 2-3/4", allowing for versatile installation options. The deadbolt's square corner strike, with dimensions of 1-1/8" x 2-3/4", enhances its secure fit. The B580605 is part of the B500 Series and features a bright brass finish that adds a touch of elegance to any door. Backed by a limited 3-year mechanical warranty, this deadbolt is a reliable choice for building professionals and knowledgeable homeowners seeking strong security solutions. Upgrade your door hardware with Schlage's commitment to quality and design.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 141457, B580605
Ansi Function: E0192 - Door Bolt
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Included: No
Deadbolt Functions: Single Cylinder
Deadbolt Type: Commercial
Dimension: 2-5/8" Diameter
Door Application: Commercial Deadbolts
Door Bore Size: 1-1/2", 2-1/8"
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Dust Box: None
Faceplate Style: Circular Drive-In, Radius Corner, Square Corner
Finish: Bright Brass
Finish Code: 605
Finish Color: Polished Brass
Finish Description: Bright Brass
Function: 580-Door Bolt
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Keyway Brand: Schlage
Knob/ Lever Style: Inside Thumbturn
Language: English
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Drive-In, Radius Corner, Square Corner
Latch Bolt Faceplate Size: 1" x 2-1/4"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Latchbolt Type: Deadbolt
Lock Category: Deadbolts
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-16
Series: B500 Series
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Size: 2-3/4" x 1-1/8"
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Schlage
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Upc: 043156130030
