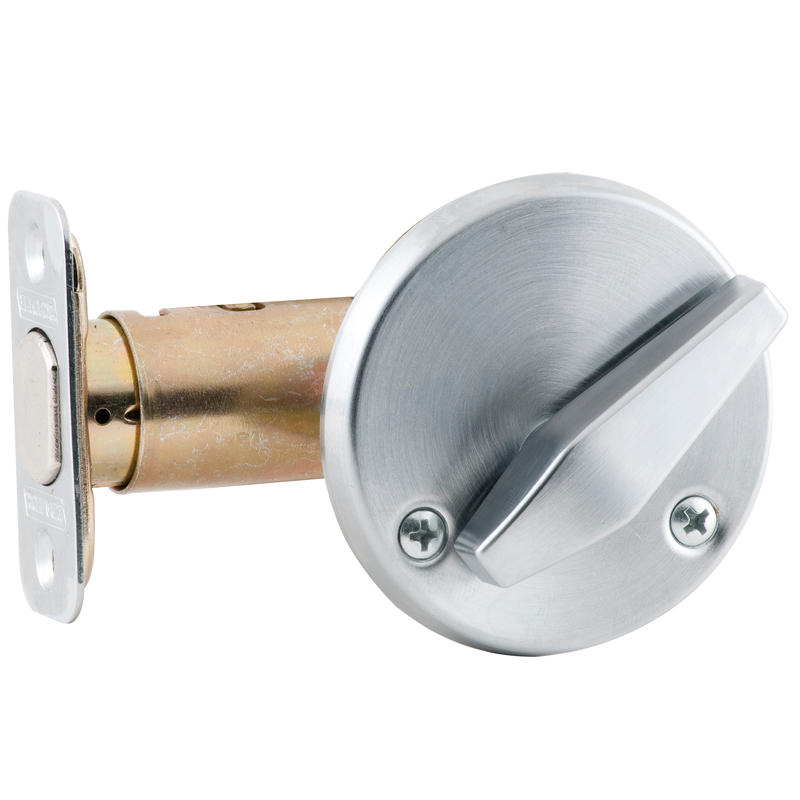

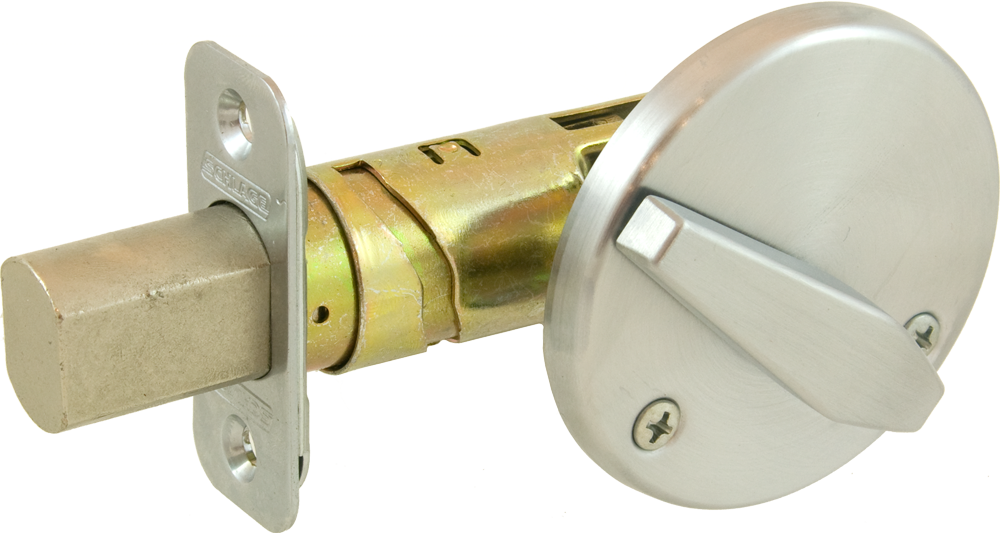

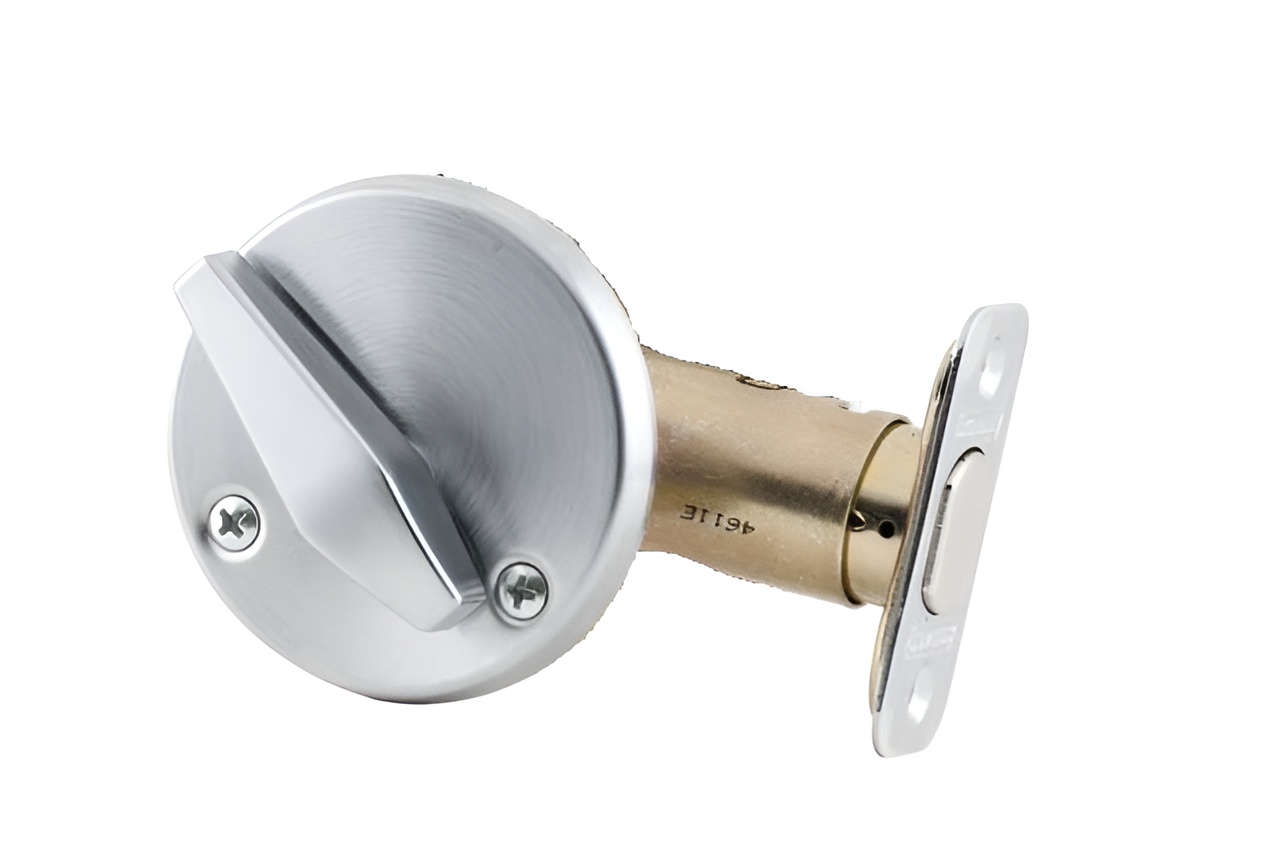

Schlage Commercial B580626 Grade 2 Turn Only Deadbolt with 12287 Latch and 10094 Strike in a Satin Chrome Finish delivers robust security for both commercial and residential applications. Designed specifically for doors ranging from 1-3/8" to 1-7/8" in thickness, this mechanical lockset provides a reliable solution with its ANSI Certified A156.36 rating, ensuring it meets rigorous industry standards. This turn-only deadbolt allows for easy operation without outside trim, simplifying access control while maintaining security. Its adjustable backset options of 2-3/8" or 2-3/4" ensure compatibility with various door installations. Additionally, the B580626 is UL Listed for a 3-hour fire door, providing peace of mind in emergency situations. Crafted from durable zinc base materials, this deadbolt is designed for lasting performance, backed by a limited 3-year mechanical warranty. The square corner deadbolt strike complements its sturdy construction, with dimensions of 1-1/8" x 2-3/4". The sleek satin chrome finish not only enhances the aesthetic appeal of any door but also offers excellent resistance to wear. With its combination of security features and thoughtful design, the Schlage Commercial B580626 is an ideal choice for safeguarding your property.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: 141463, B580626
Ansi Function: E0192 - Door Bolt
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Included: No
Deadbolt Functions: Single Cylinder
Deadbolt Type: Commercial
Dimension: 2-5/8" Diameter
Door Application: Commercial Deadbolts
Door Bore Size: 1-1/2", 2-1/8"
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Dust Box: None
Faceplate Style: Circular Drive-In, Radius Corner, Square Corner
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Function: 580-Door Bolt
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Keyway Brand: Schlage
Knob/ Lever Style: Inside Thumbturn
Language: English
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Drive-In, Radius Corner, Square Corner
Latch Bolt Faceplate Size: 1" x 2-1/4"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Latchbolt Type: Deadbolt
Lock Category: Deadbolts
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Series: B500 Series
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Size: 2-3/4" x 1-1/8"
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Schlage
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Upc: 043156130047
