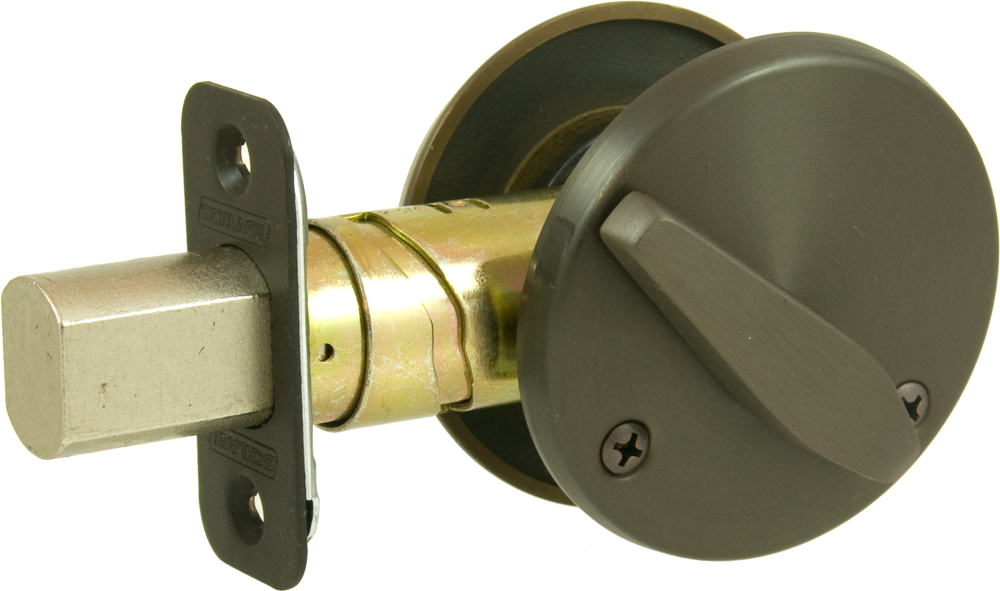

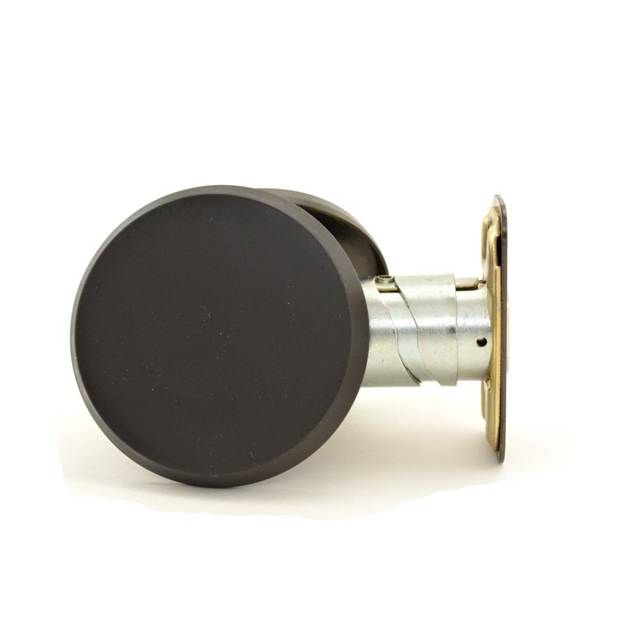

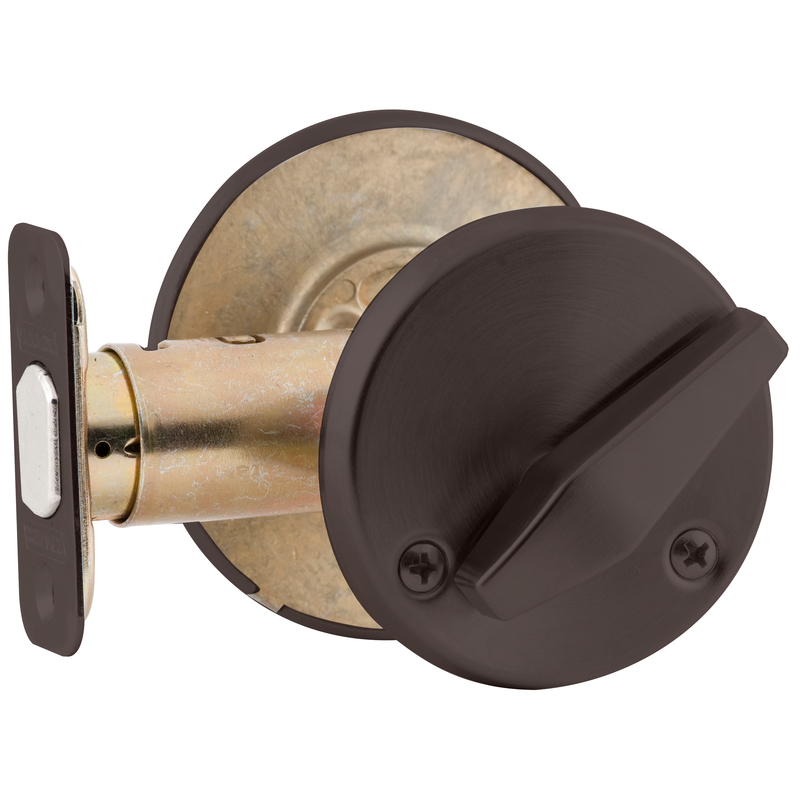

Schlage Commercial B581613 Grade 2 Turn by Blank Plate Deadbolt with 12287 Latch and 10094 Strike showcases a robust design that ensures high security for various environments, including commercial and institutional buildings. This deadbolt, finished in a sophisticated Oil Rubbed Bronze, not only enhances the aesthetic appeal of your doors but also provides exceptional durability. Engineered to meet ANSI A156.36 standards, this Grade 2 deadbolt is suitable for doors ranging from 1-3/8" to 1-7/8" thick. It features an adjustable backset of 2-3/8" or 2-3/4", allowing for versatile installations. The deadbolt is thrown or retracted solely by a turn unit, making it easy to operate. Additionally, it is UL Listed for 3-hour fire doors, ensuring compliance with safety regulations. The B581613 is part of the B500 Series and is equipped with a square corner deadbolt strike, contributing to its secure installation. With a limited 3-year mechanical warranty, you can trust in its reliability. This deadbolt not only meets your security needs but also embodies Schlage's commitment to quality and craftsmanship, making it a prime choice for those who prioritize strength and safety.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 4.5%
Alternate Codes: 141527, B581613
Ansi: A156.36, 2010
Ansi Function: E01112 - Door Bolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Bolt Projection: 1"
Bolt Protection: 1 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Included: No
Deadbolt Functions: Cylinder x Blank Plate
Deadbolt Type: Commercial
Dimension: 2-5/8" Diameter
Door Application: Commercial Deadbolts
Door Bore Size: 1-1/2", 2-1/8"
Door Range: 1-3/8" to 1-7/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Dust Box: None
Faceplate Style: Circular Drive-In, Radius Corner, Square Corner
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Color: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Function: 581-Door Bolt w Trim
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Non-Keyed
Keyway Brand: Schlage
Knob/ Lever Style: Inside Thumbturn
Language: English
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Drive-In, Radius Corner, Square Corner
Latch Bolt Faceplate Size: 1" x 2-1/4"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4" and 1" Diameter
Latch Number: 12-288
Latch Type: Deadbolt
Latchbolt Type: Deadbolt
Limited Warranty: 3 Years
Lock Category: Deadbolts
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Blank Plate Outside x Thumbturn Inside
No Of Inners: 1
Order_ Qty: 1
Origin: USA
PO date: 2024-09-30
Pack Qty: 1
Product Height: 4.13"
Product Width: 2.54"
Series: B500 Series
Std Latch Backset Dim: Adjustable for 2-3/8" or 2-3/4"
Std Latch Number: 12-288
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Size: 2-3/4" x 1-1/8"
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Supplier: Schlage
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Upc: 043156130665
