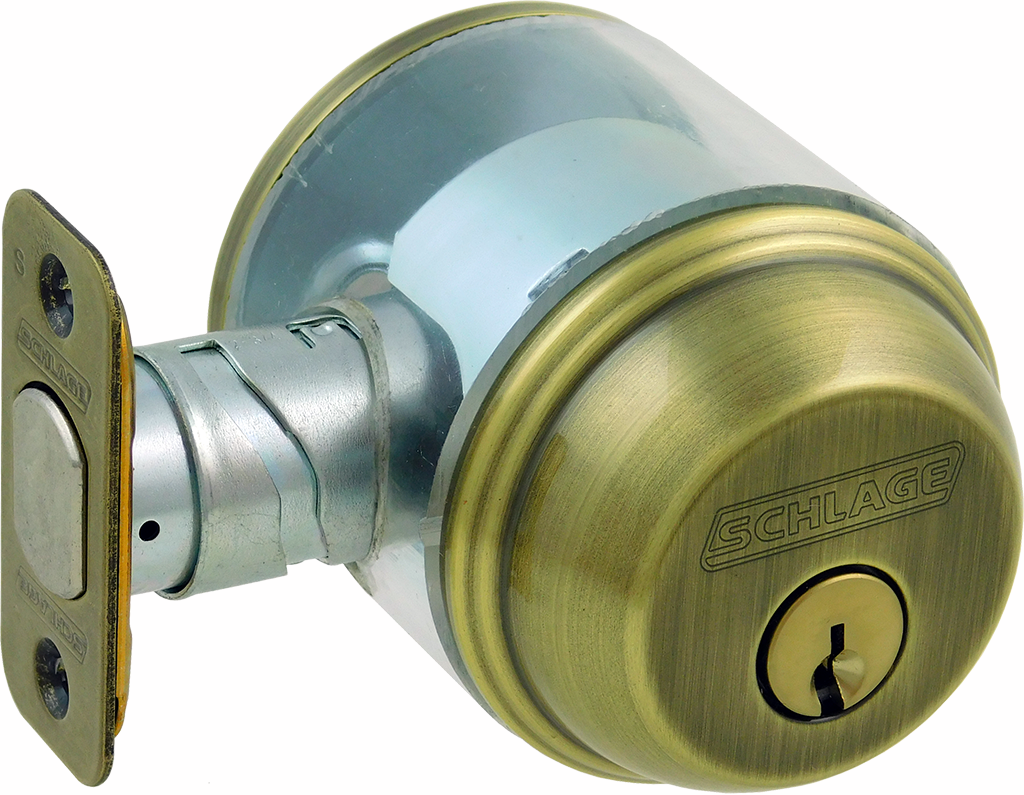

Schlage B60N-609 12-287 Grade 1 Single Cylinder Deadbolt, 5-Pin C Keyway, Adjustable Backset, Antique Brass

Schlage Lock Company B60N-609 12-287 Deadbolt Single Cylinder offers a robust security solution, designed to meet the highest standards with its Grade 1 rating. Engineered with feedback from industry professionals, this deadbolt features an enhanced design that promotes easier installation and superior performance. The innovative 3-piece assembly, combined with the "snap & stay" feature, allows for hands-free installation, making it ideal for both builders and homeowners alike. This model accommodates door thicknesses ranging from 1-3/8" to 1-3/4" and includes a dual backset that adjusts easily between 2-3/8" and 2-3/4". The increased size of the latch and bolt enhances kick-in resistance, while the anti-pick shield provides an additional layer of security. The newly designed thumbturn is larger and ADA compliant, ensuring ease of use for all. The B60N-609 features a 5-pin Schlage "C" keyway and offers various keying options, including keyed alike and master keyed configurations. With its stylish low-profile face and contoured edges, this deadbolt not only delivers security but also adds an elegant touch to any residential door. Available in an antique brass finish, the Schlage B60N-609 is a perfect blend of form and function.

Deadbolt Single Cylinder, Grade 1, 5-Pin C Keyway KA4, Triple Option Adjustable Backset 2-3/8 to 2-3/4, 609/US5 Antique Brass

The B60 deadbolt is a new grade 1 residential deadbolt from Schlage. Designed with input from locksmiths, professional installers, builders and distributors the B60 series deadbolt offers enhanced grade 1 security, faster & easier installation via it's 3-piece assembly and "snap & stay" feature for hands-free installation, and a sleek low-profile design plus newly designed interior thumbturn, which is larger and easier to grip as well as ADA compliant. BHMA grade 1 product performance. Increased latch/bolt size offers maximum kick-in resistance. Anti-pick shield. 3-piece assembly. Contoured edges for added style. Low-profile face cannot be unscrewed and is impossible to grab with a wrench. Adjustable backset (2-3/8" or 2-3/4") has the industry's only helical design that locks into place with no adjusting during installation.

Specifications:

• Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
• Backset: Dual backset latch; adjustable for 2-3/8" or 2-3/4" backset.
• Door Prep: Required 1" door prep for larger bolt housing.
• Latch: 1" x 2-1/4" (25mm x 57mm) Round Corner, 1" (25mm) housing diameter, 1" (25mm) throw.
• Strike: 1-1/8" x 2-3/4" (29mm x 70mm) round corner faceplate.
• Cylinder: 5-Pin, Schlage "C" keyway (SC1), keyed different (KD).
• Pin & tumbler (standard)
• Keying Options: See "keying" for the following keying options on the B60/B62 Deadbolt:
• Keyed Alike: 1 key works all locks.
• Master Keyed: Locks are keyed different (KD) with 2 keys per lock, 1 master key opens all locks.
• Construction Key: PK.

Functions:

• Single Cylinder Latch: Key operates deadbolt from outside; turn piece operates deadbolt.
• Double Cylinder Latch: Deadbolt operated by key from either side; no turn knob.

Finishes:

• 605 - Bright brass
• 608 - Satin brass
• 609 - Antique brass
• 618 - Polished nickel
• 619 - Satin nickel
• 620 - Antique pewter
• 621 - Distressed nickel
• 622 - Batte black
• 625 - Bright chrome
• 626 - Satin chrome
• 716 - Aged bronze

Features

• Keying Options: See "keying" for the following keying options on the B60/B62 Deadbolt:
• Cylinder: 5-Pin, Schlage "C" keyway (SC1), keyed different (KD).
• Pin & tumbler (standard)
• Strike: 1-1/8" x 2-3/4" (29mm x 70mm) round corner faceplate.
• Master Keyed: Locks are keyed different (KD) with 2 keys per lock, 1 master key opens all locks.
• Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
• Latch: 1" x 2-1/4" (25mm x 57mm) Round Corner, 1" (25mm) housing diameter, 1" (25mm) throw.
• Keyed Alike: 1 key works all locks.
• Construction Key: PK.
• Backset: Dual backset latch; adjustable for 2-3/8" or 2-3/4" backset.
• Door Prep: Required 1" door prep for larger bolt housing.
