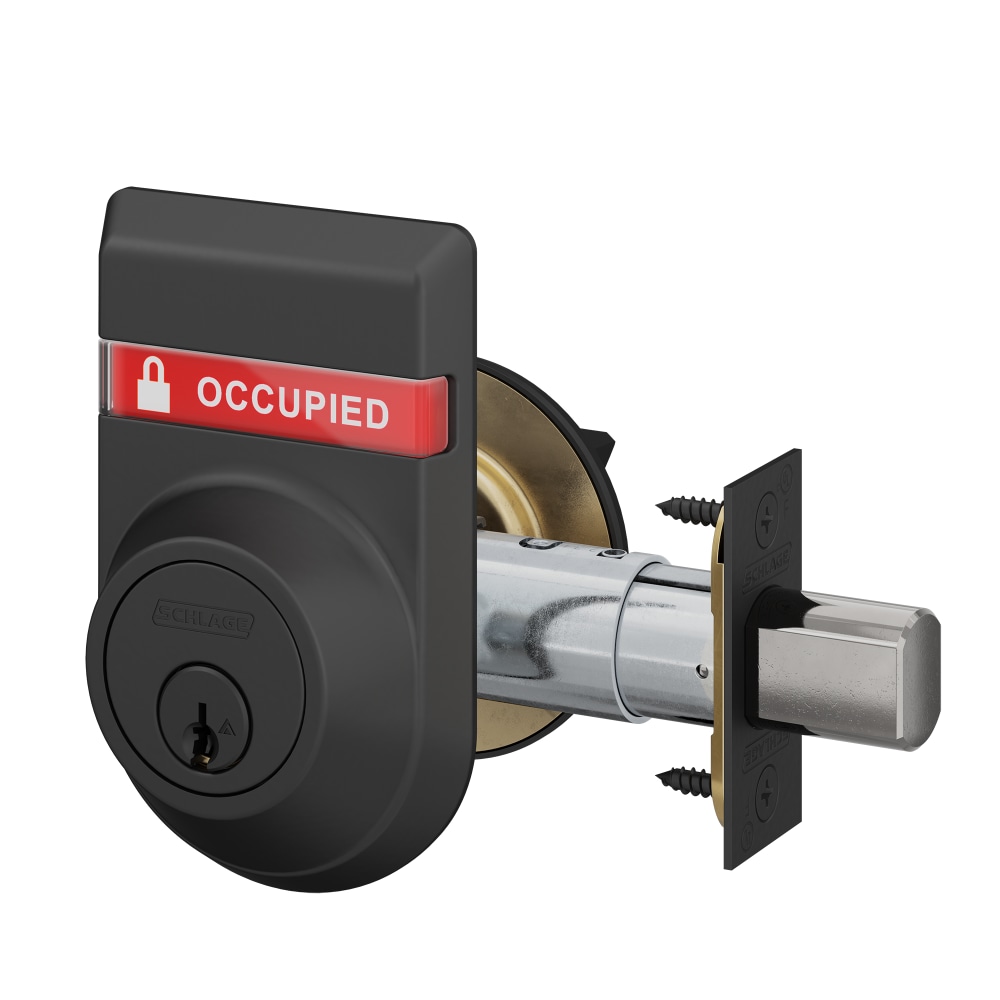

Schlage B660P 622 OS-OCC Grade 1 Single Cylinder DeadboltSchlage B660P 622 OS-OCC Grade 1 Single Cyl Deadbolt offers unparalleled security and versatility for both commercial and residential applications. This Grade 1 deadbolt is engineered to withstand high-traffic environments, making it an ideal choice for businesses seeking reliable protection. Its conventional cylinder features an exterior indicator displaying OCCUPIED/VACANT status, enhancing usability in office settings. Crafted with a flat black coated finish, the B660P not only delivers strength but also adds a touch of elegance to any door. The lock is non-handed, allowing for easy installation on various door types with a thickness ranging from 1-3/8" to 2-1/2". With a robust bolt projection and throw of 1", this deadbolt ensures a secure latch every time. Built to comply with ANSI A156.36-2010 Grade 1 standards, this lock is fire-rated for up to 3 hours, ensuring safety in emergencies. It includes two keys and features a durable brass or bronze base material, promising longevity and reliability. As part of the Schlage B600 Series, the B660P is designed for those who value top-tier security without compromising on style.
Grade 1 Single Cyl Deadbolt
Grade 1 Single Cylinder Deadbolt, Conventional Cylinder, Exterior Indicator OCCUPIED/VACANT, Flat Black Coated Finish, Non-Handed
The B600/700/800 Series are Schlage’s highest grade deadbolt locks. Choose the 600 for Grade 1 security in high-traffic commercial applications. Choose the 700 or 800 and get standard a Primus XP controlled access cylinder (700) or Primus XP high security cylinder with UL 437 rating (800). A variety of functions and finishes makes the B600/700/800 Series a versatile choice for added security no matter where you use it.
Built with Schlage's renowned strength, combining toughness with elegance to rank among the most durable in the industry.
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.36-2010 Grade 1
Ansi Function: E0151 - Single Cylinder Deadbolt
Application: Indicator with Text
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 1"
Bolt Throw: 1"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8" to 2-1/2"
Dust Box: Metal
Finish: 622/US19
Finish Family: Black
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 660-Single Cylinder Deadbolt
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keying: Keyed Different
Keys: 2
Latch Backset Dim: 2-3/8" or 2-3/4"
Limited Warranty: 3 Years
Lock Face Size: 2-1/4" x 1-1/8"
Mechanical Option: Exterior Indicator OCCUPIED/VACANT
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Length: 3.57"
Product Width: 2.54"
Screws: Combination
Series: B600 Series Deadbolts
Std Latch Backset Dim: 2-3/8" or 2-3/4"
Std Latch Number: 12-296
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Flat Square Corner
Std Strike Width: 1-1/8"
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL10B/10C Listed
Unit of Measure: Each
