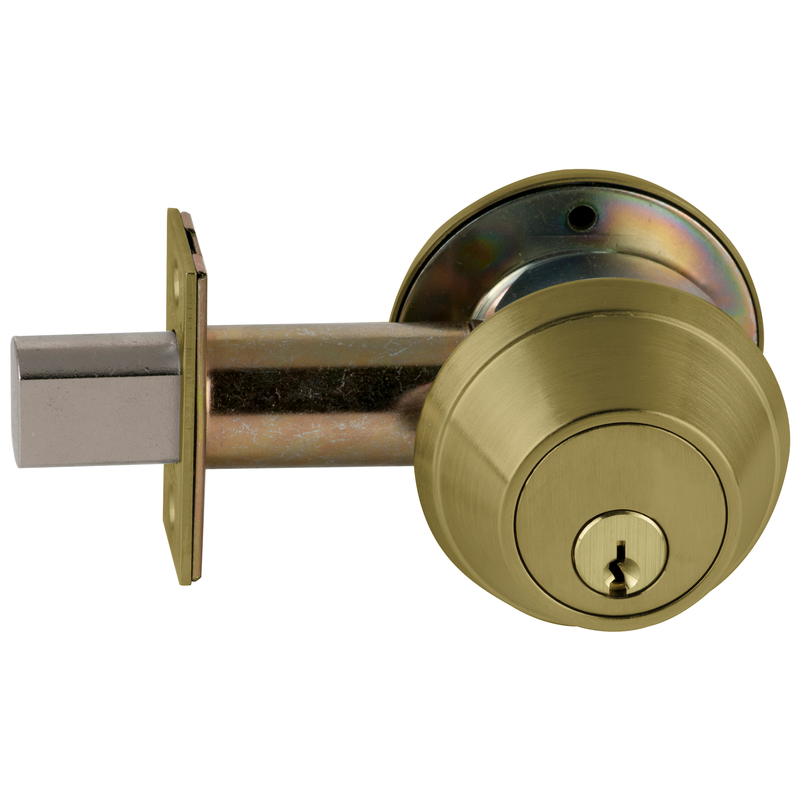

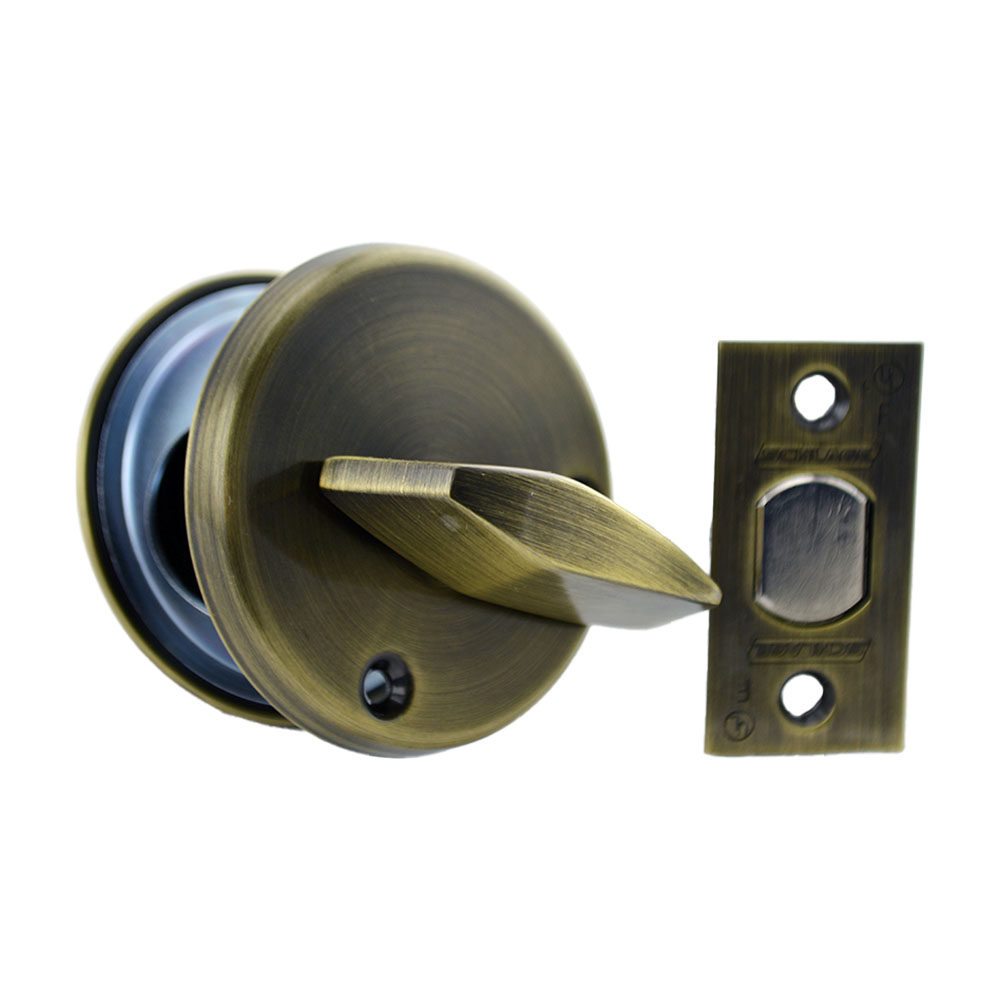

Schlage Commercial B660P609 Grade 1 Single Cylinder Deadbolt offers robust security for both commercial and residential applications. This deadbolt is designed to be thrown or retracted by a key from the outside or by an inside turn unit, ensuring convenient access without compromising safety. Rated as ANSI Certified A156.36 and classified as Commercial Grade 1, it meets the highest standards for durability and performance. Engineered for doors ranging from 1-5/8" to 2" in thickness, the B660P609 features an adjustable backset of either 2-3/8" or 2-3/4", accommodating various installations. Its 1-1/2" or 2-1/8" crossbore size allows for easy fitting, while the square corner deadbolt strike ensures a secure closure. The antique brass finish not only enhances the aesthetic appeal but also provides a timeless look fitting for any environment. With a 6-pin cylinder and a UL listing for 3-hour fire doors, this deadbolt is a reliable choice for those who prioritize safety. Backed by a limited 3-year mechanical warranty, the Schlage B660P609 is a trusted solution for safeguarding your property with confidence and style.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.36-2010 Grade 1
Ansi Function: E0151 - Single Cylinder Deadbolt
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Base Material: Brass
Bolt Projection: 1"
Bolt Protection: 1 In.
Bolt Throw: 1"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Dimension: 2-5/8" Diameter
Door Range: 1-5/8" to 2"
Door Thickness: 1-5/8 In. - 2 In.
Dust Box: None
Finish: Antique Brass
Finish Code: 609
Finish Description: Satin Brass Blackened Satin Relieved Clear Coated
Finish Family: Matte Brass
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 660-Single Cylinder Deadbolt Lock
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: 2
Keyway: S123
Latch Backset Dim: 2-3/4 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 12-631
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: USA
PO date: 2024-11-20
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Width: 2.54"
Screws: Combination
Series: B600 Series
Std Latch Backset Dim: 2-3/8" or 2-3/4"
Std Latch Number: 12-296
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Flat Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Height: 2-3/4 In.
Strike Number: 10-094
Strike Type: Flat
Strike Width: 1-1/8 In.
Subcategory: Commercial Deadbolts
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL10B/10C Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
