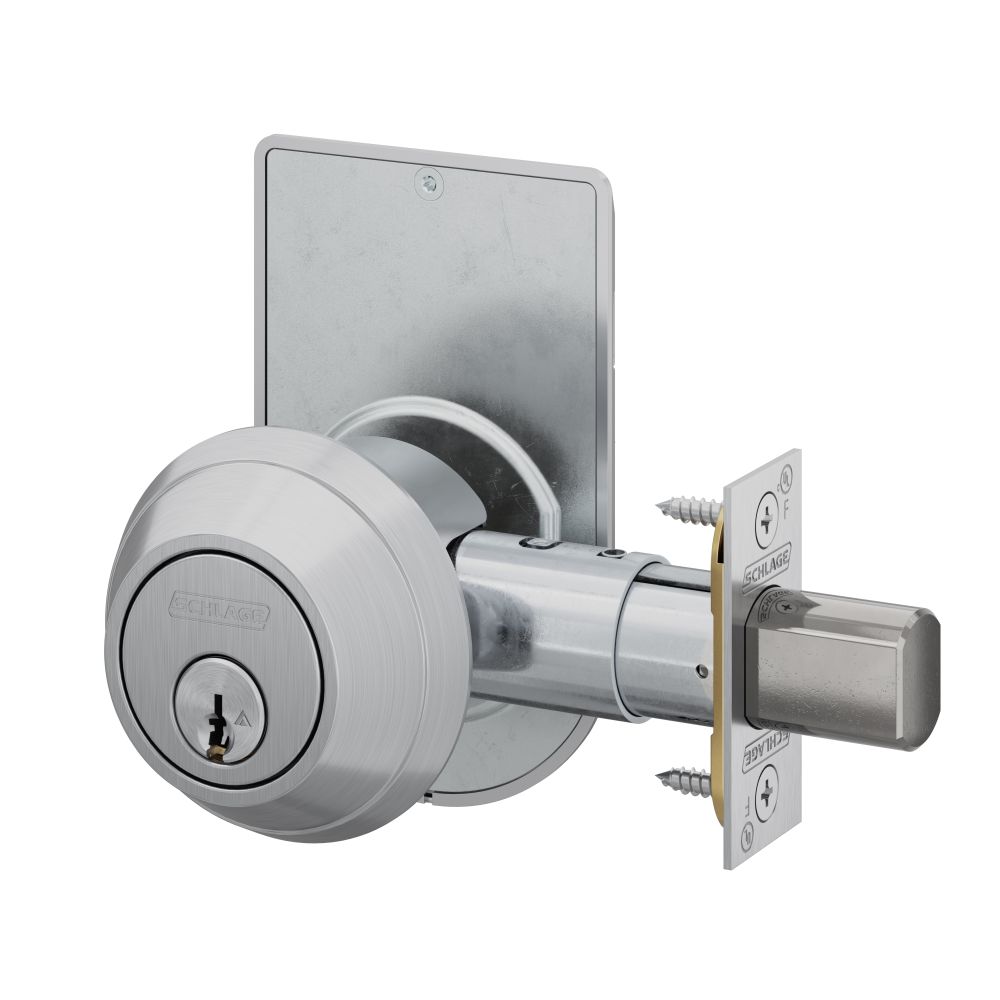

Schlage Commercial B660P626ISLOC Grade 1 Single Cylinder Deadbolt offers robust security tailored for commercial applications. This deadbolt features a single cylinder design, allowing for easy operation with a key from the outside or by turning the inside unit, making it user-friendly while ensuring safety. Constructed to meet ANSI Certified A156.36 standards, this deadbolt is designed for durability and reliability. It is suitable for doors ranging from 1-5/8" to 2" thick and includes an adjustable backset option of 2-3/8" or 2-3/4". The B660P is UL Listed for a 3-hour fire door, adding an essential layer of protection in critical environments. The satin chrome finish not only enhances the aesthetic appeal but also provides resistance to corrosion and wear, ensuring longevity. With a 6-pin C keyway, this deadbolt offers a higher level of security and customization. The square corner deadbolt strike complements the design, with dimensions of 1-1/8" x 2-3/4". Backed by a limited 3-year mechanical warranty, the Schlage Commercial B660P626ISLOC is an ideal choice for building professionals seeking a reliable, high-quality locking solution that combines form and function seamlessly.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: 3.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.36-2010 Grade 1
Ansi Function: E0151 - Single Cylinder Deadbolt
Application: Indicator with Text
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 1"
Bolt Throw: 1"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Dimension: 2-5/8" Diameter
Door Range: 1-5/8" to 2"
Door Thickness: 1-3/8" to 2-1/2"
Dust Box: Metal
Finish: Satin Chrome
Finish Code: 626
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: Single Cylinder
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Keying: Keyed Different
Keys: 2
Keyway: C Keyway
Latch Backset Dim: 2-3/8" or 2-3/4"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Limited Warranty: 3 Years
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Interior Indicator LOCKED/UNLOCKED
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Length: 3.65"
Product Width: 2.54"
Screws: Combination
Series: B600 Series
Std Latch Backset Dim: 2-3/8" or 2-3/4"
Std Latch Number: 12-296
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Flat Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL10B/10C Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
