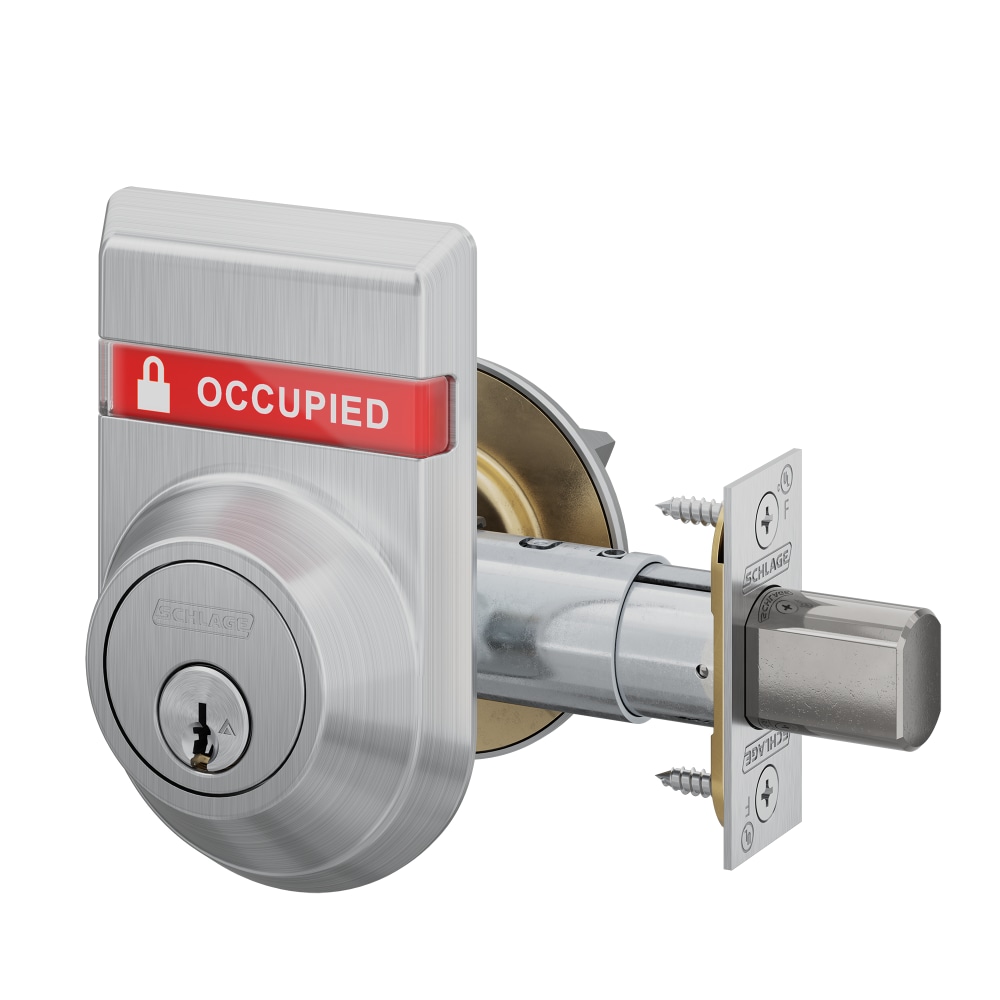

Schlage Commercial B660P626OSOCCISLOC Grade 1 Single Cylinder Deadbolt offers superior security with its robust design, making it an excellent choice for various commercial applications. This deadbolt features a C keyway and is engineered to be thrown or retracted by a key from the outside or via an inside turn unit, providing convenience without compromising safety. With an ANSI certification of A156.36, this deadbolt ensures durability and reliability. The adjustable backset accommodates both 2-3/8" and 2-3/4" configurations, while the 1-5/8" to 2" door range makes it versatile for different door thicknesses. The B660P is UL Listed for 3-hour fire doors, ensuring compliance with stringent safety standards. The satin chrome finish not only enhances its aesthetic appeal but also increases resistance to wear and corrosion. It features an outside occupied/vacant indicator and an inside locked/unlocked indicator for added functionality. Crafted from high-quality zinc base material, this commercial deadbolt is designed to withstand the rigors of frequent use. Backed by a limited 3-year mechanical warranty, the Schlage Commercial B660P626OSOCCISLOC provides peace of mind and reliable performance in securing your property.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.36-2010 Grade 1
Ansi Function: E0151 - Single Cylinder Deadbolt
Application: Indicator with Text
Baa Qualified: Yes
Backset: Adjustable 2-3/8" or 2-3/4" Backset
Base Material: Brass or Bronze
Bolt Projection: 1"
Bolt Throw: 1"
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: USA
Crossbore Size: 1-1/2" or 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Dimension: 2-5/8" Diameter
Door Range: 1-5/8" to 2"
Door Thickness: 1-3/8" to 2-1/2"
Dust Box: Metal
Finish: Satin Chrome
Finish Code: 626
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: Single Cylinder
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-Handed
Hazardous Material: NO
Indicator Type: Outside with Text, "VACANT/OCCUPIED", Inside with Text, "UNLOCKED/LOCKED"
Installation: Commercial
Keying: Keyed Different
Keys: 2
Keyway: C Keyway
Latch Backset Dim: 2-3/8" or 2-3/4"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Limited Warranty: 3 Years
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Zinc Base
Mechanical Option: Exterior Indicator OCCUPIED/VACANT, Interior Indicator LOCKED/UNLOCKED
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: USA
Pack Qty: 1
Pins: 6
Product Height: 4.13"
Product Length: 3.7"
Product Width: 2.54"
Screws: Combination
Series: B600 Series
Std Latch Backset Dim: 2-3/8" or 2-3/4"
Std Latch Number: 12-296
Std Latch Type: Square Corner
Std Strike Height: 2-3/4"
Std Strike Number: 10-094
Std Strike Type: Flat Square Corner
Std Strike Width: 1-1/8"
Strike: Square Corner Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Commercial Deadbolts
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL10B/10C Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
