Attributes

Ship via: Can Ship UPS

Manufacturer surcharge: 4.5%

Alternate Codes: B661P613

Ansi: ANSI A156.36-2010 Grade 1

Ansi Function: E0161 - One Way Deadbolt

Baa Qualified: Yes

Backset: Adjustable Backset

Base Material: Bronze

Bolt Projection: 1"

Bolt Protection: 1 In.

Bolt Throw: 1"

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Conventional Cylinder

Door Thickness: 1-5/8 In. - 2 In.

Dust Box: None

Finish: 613/US10B

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Finish Family: Dark Bronze

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 661-One-Way Deadbolt Lock

Function Family: Storeroom

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Keying: Keyed Different

Keys: 2

Keyway: S123

Latch Backset Dim: 2-3/4 In.

Latch Number: 12-631

Latch Type: Deadbolt

Limited Warranty: 3 Years

Lock Face Size: 2-1/4 In. x 1-1/8 In.

Num Pins: 6

Of Keys: 2

Origin: USA

Pack Qty: 1

Pins: 6

Product Height: 4.13"

Product Width: 2.54"

Screws: Combination

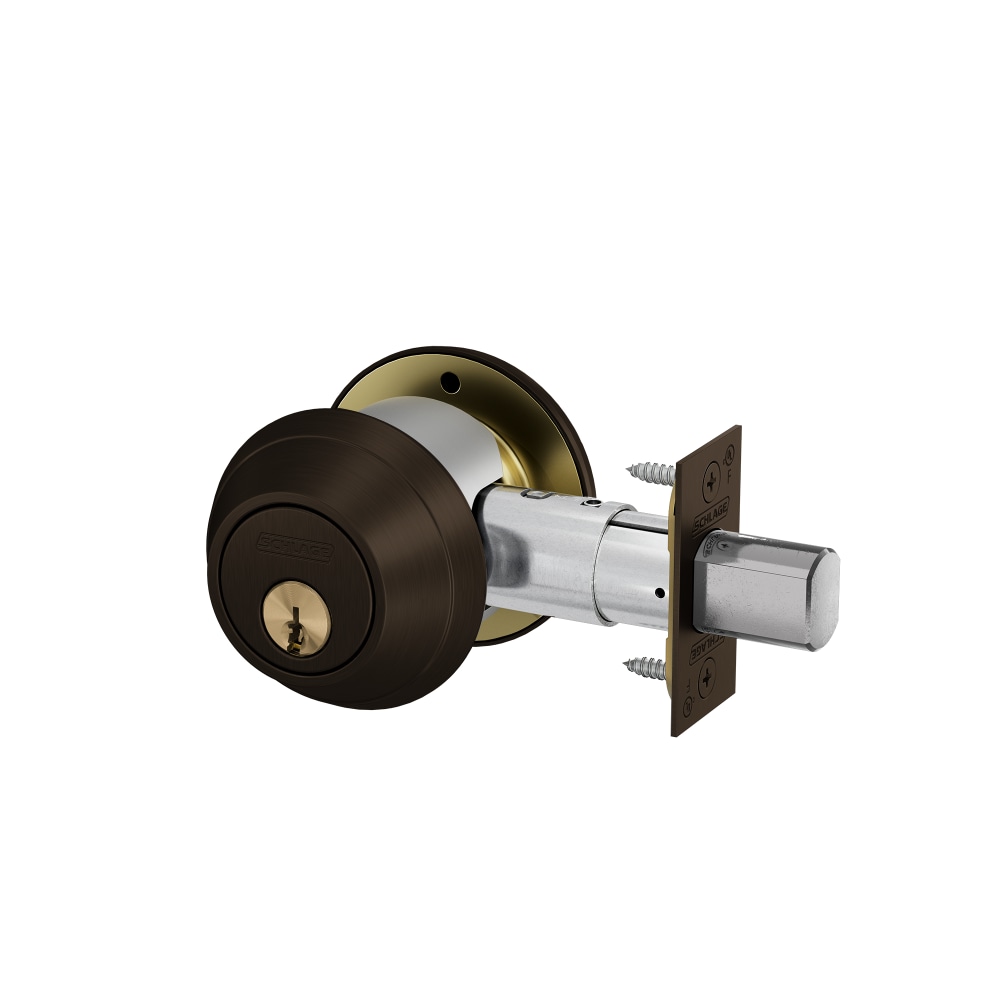

Series: B600 Series Deadbolt

Std Latch Backset Dim: 2-3/8" or 2-3/4"

Std Latch Number: 12-296

Std Latch Type: Square Corner

Std Strike Height: 2-3/4"

Std Strike Number: 10-094

Std Strike Type: Flat Square Corner

Std Strike Width: 1-1/8"

Strike: Square 2-3/4" Strike

Strike Height: 2-3/4 In.

Strike Number: 10-094

Strike Type: Flat

Strike Width: 1-1/8 In.

Subtype: Deadlock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL10B/10C Listed

Unit of Measure: Each
