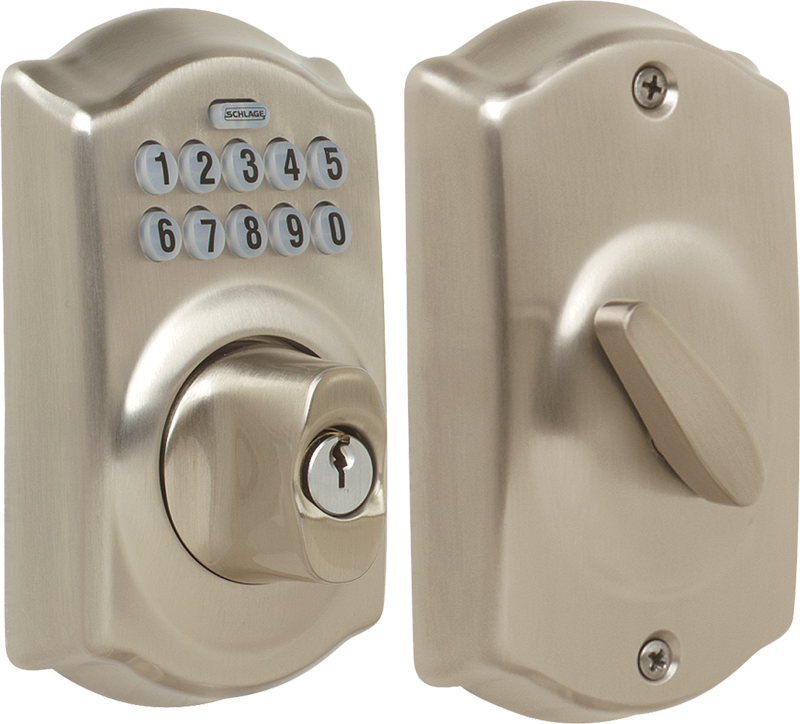

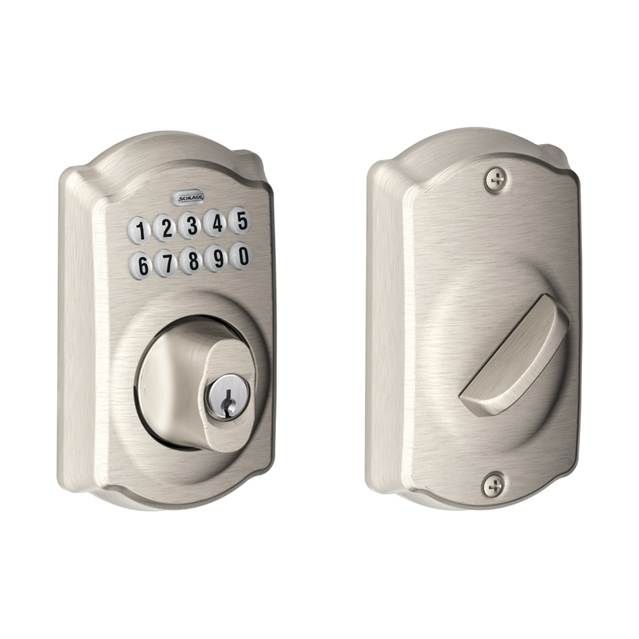

Schlage BE365CAM619 Camelot Electronic Keypad Deadbolt C Keyway, Satin Nickel FinishSchlage Residential BE365CAM619 Camelot Electronic Keypad Deadbolt offers a seamless blend of security and convenience for your home. With its satin nickel finish and elegant Camelot design, this deadbolt not only enhances your entryway's aesthetic but also provides reliable protection. Designed to fit standard pre-drilled doors, it features a triple option adjustable backset accommodating both 2-3/8" and 2-3/4" openings. The electronic keypad functionality allows for easy access, enabling you to lock and unlock your door using a user-defined code or a key. Simply press the Schlage button to throw the deadbolt from outside, or use the inside thumbturn for quick access. Installation is straightforward, requiring only a Phillips screwdriver and no wiring, making it an ideal choice for DIY enthusiasts. Constructed from durable zinc, the deadbolt is fingerprint resistant, ensuring a clean, polished look. Its compatibility with door thicknesses ranging from 1-3/8" to 1-3/4" adds to its versatility. With a limited lifetime mechanical and finish warranty, alongside a one-year electronics warranty, the Schlage BE365CAM619 Camelot Electronic Keypad Deadbolt is a formidable option for those looking to enhance their home security with style and ease.
Camelot Electronic Keypad Deadbolt C Keyway with 12287 Latch and 10116 Strike Satin Nickel Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
- Box Pack
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & Finish Warranty
- 3 Year Limited Electronic Warranty
- Fingerprint Resistant
- ANSI/BHMA Grade 2 Certified
- Patented commercial grade clutching motor drive, tested to 1,000,000 cycles
- Vandal resistant clutching lever and free spinning deadbolt turn
- Turn lock function - deadbolt allows user to lock and leave without a key
- Code control; 6 digit programming code to add/delete user codes
- 19 user 4 digit code capacity; 10,000 user code combinations
- Blue LED illuminated keypad on demand
- Mechanical key override
- 9 volt alkaline battery gives an average of 3 year life
- Fits a standard door preparation
- Deadbolt thrown from outside by keyway turn after pressing Schlage button or by inside thumbturn
- No wiring needed
- Guaranteed to fit on existing, standard pre-drilled doors
- Easy installation with Phillips screwdriver
- Deadbolt retracted from outside by entering valid user code then rotating keyway turn or by inside thumbturn
Attributes
Alternate Codes: 043156894529, 140170, BE365CAM619
Backset: Triple Option Adjustable Deadbolt, 2-3/8" or 2-3/4" Backset
Category: Residential Electronics
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 5 Pin Cylinder
Design: Camelot
Dimension: 3-1/8" x 5-1/2" x 5-3/4"
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-3/8"
Finish: Satin Nickel
Finish Code: 619
Finish Color: Satin Nickel
Function: Electronic Keypad
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Keypad Type: Keypad
Keyway: C Keyway
Knob/ Lever Style: Inside Thumbturn
Latch Bolt Face Type: Suare Corner
Latch Bolt Faceplate Size: 2-1/4" x 1"
Latch Bolt Throw: 1"
Latch Bolt Type: Deadbolt
Latch Faceplate Dimension: 1" x 2-1/4"
Lock Category: Keypad Locks
Manufacturer Warranty: Limited Lifetime Mechanical & Finish Warranty & 1 Year Electronics
Material: Zinc
No Of Inners: 1
No Of Pins: 5 Pin Cylinder
Order_ Qty: 1
PO date: 2024-09-05
Restricted Keyway: No
Rose Escutcheon Design: Camelot Escutcheon
Series: BE Series
Strike: Radius Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Strike Size: 2-3/4" x 1-1/8"
Subcategory: Keypad Deadbolts
Subtype: Electronic Locksets
Supplier: Schlage
Type: LOCK SETS
Upc: 043156894529
Voltage: 9V
