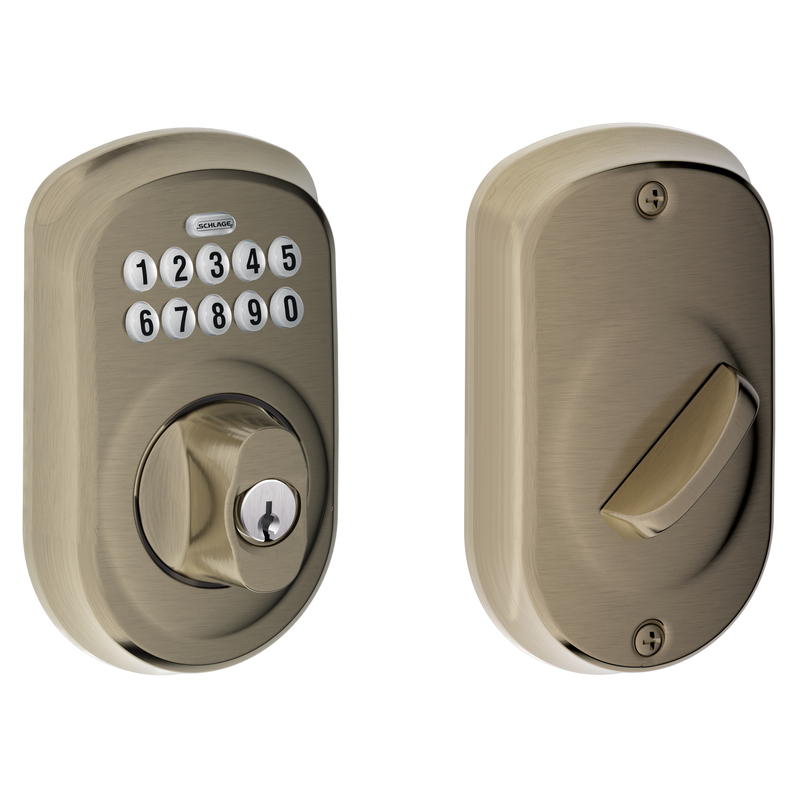

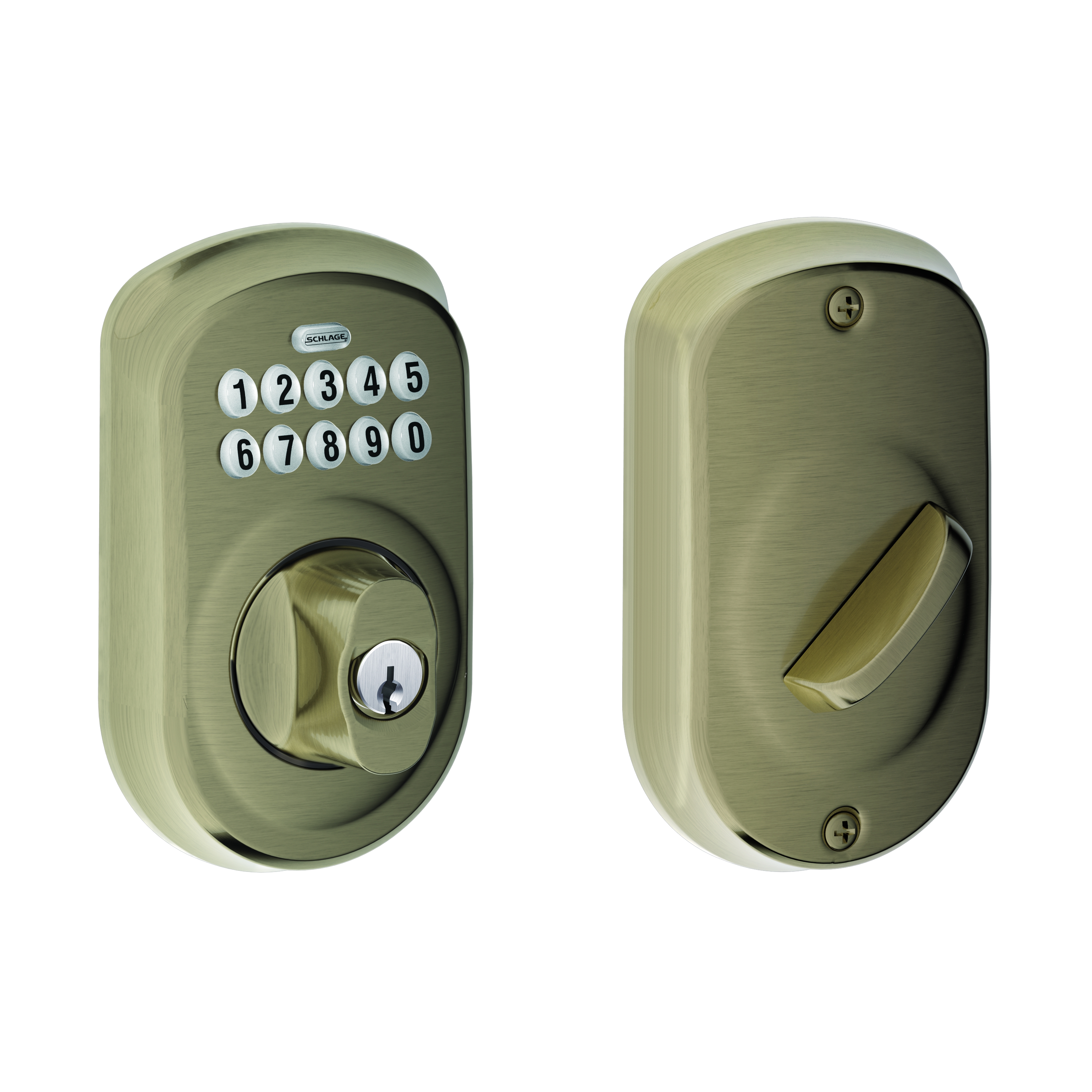

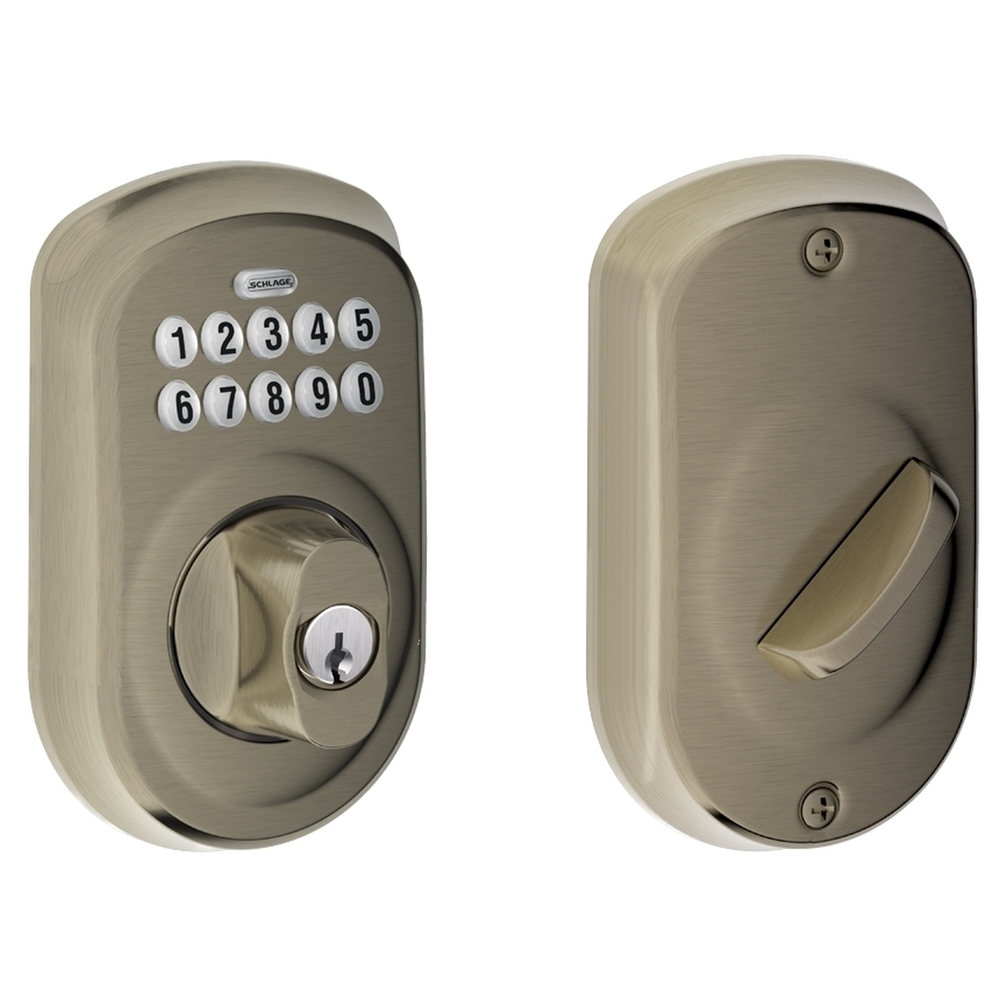

Schlage Residential BE365PLY620 Plymouth Electronic Keypad Deadbolt offers a seamless blend of security and convenience. Designed to fit standard pre-drilled doors, this electronic deadbolt is perfect for residential applications. With its user-friendly keypad, you can easily lock and unlock your door using a valid code or a key, providing flexibility in access control. The durable antique nickel finish not only enhances the aesthetic appeal but also resists fingerprints, ensuring that it maintains its sleek appearance over time. Installation is straightforward, requiring only a Phillips screwdriver-no wiring needed. This model features a triple option adjustable backset accommodating 2-3/8" or 2-3/4" backsets, making it versatile for various door configurations. The BE365PLY620 is designed for doors with a thickness ranging from 1-3/8" to 1-3/4", and it includes a radius deadbolt strike for added security. With a limited lifetime mechanical and finish warranty, along with a one-year warranty on electronics, Schlage stands behind the quality of its products. Choose the Plymouth Electronic Keypad Deadbolt to enhance your home’s security with ease and style.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Access Function: Field Configurable
Ansi: ANSI Grade 2, ANSI Grade AAA
Application: Pushbutton Keypad
Backset: Triple Option Adjustable Deadbolt, 2-3/8" or 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Throw: 1" Throw
Category: Residential Electronics
Commercial Residential: Residential
Crossbore Size: 2-1/8" Bore
Cylinder Type: 5-Pin Tumbler
Design: Plymouth
Dimension: 3-1/8" x 5-1/2" x 5-3/4"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Antique Nickel
Finish Code: 620
Finish Description: Satin Nickel Plated Blackened Satin Relieved CC
Finish Family: Matte Silver
Function: Electronic Keypad
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Residential
Keypad Type: Keypad
Keyway: C Keyway
Latch Backset Dimension: 2-3/8" to 2-3/4"
Latch Faceplate Dimension: 1" x 2-1/4"
Limited Warranty: 3 Year Electronic, Limited Lifetime Mechanical Warranty
Lock Platform: Deadbolt Lock
Manufacturer Warranty: Limited Lifetime Mechanical & Finish Warranty & 1 Year Electronics
Material: Zinc
No Of Inners: 1
No Of Pins: 5 Pin Cylinder
Of Keys: 1
Operating Voltage: 9V
Order_ Qty: 1
PO date: 2024-09-03
Pack Height: 4.22"
Pack Height 2: 9.3"
Pack Length: 8.39"
Pack Length 2: 14.1"
Pack Qty: 1
Pack Volume: 239.7 in³
Pack Volume 2: 1770.26 in³
Pack Width: 6.77"
Pack Width 2: 13.5"
Pins: 5
Power: (1) 9V Battery
Product Height: 4.22"
Product Length: 8.39"
Product Width: 6.77"
Reader Technology: Keypad Only
Rose Escutcheon Design: Plymouth Escutcheon
Roseescutcheon Design: Plymouth Trim
Series: BE Series
Ship Weight: 5.5 lbs.
Std Strike Type: Round Corner Strike
Strike: Radius Deadbolt Strike
Strike Dimension: 1-1/8" x 2-3/4"
Subcategory: Keypad Deadbolts
Subtype: Electronic Locksets
Type: Residential Locksets
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Upc: 043156894604
Users: 19
