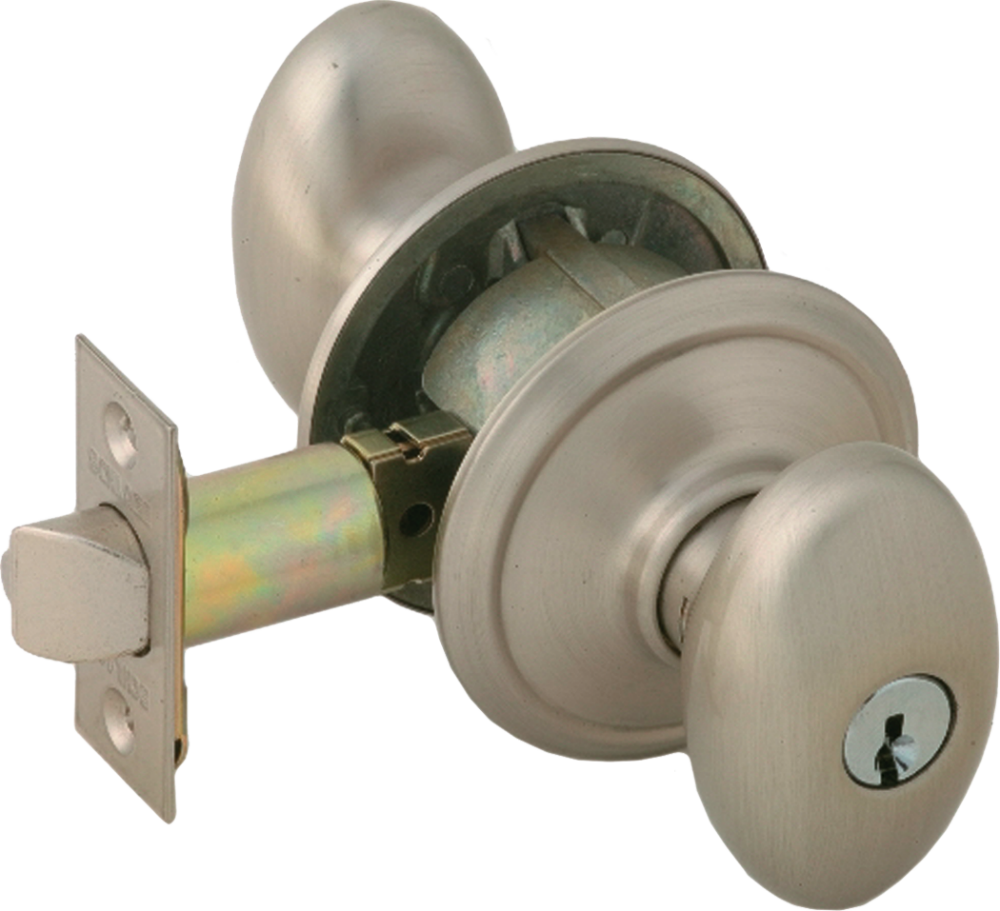

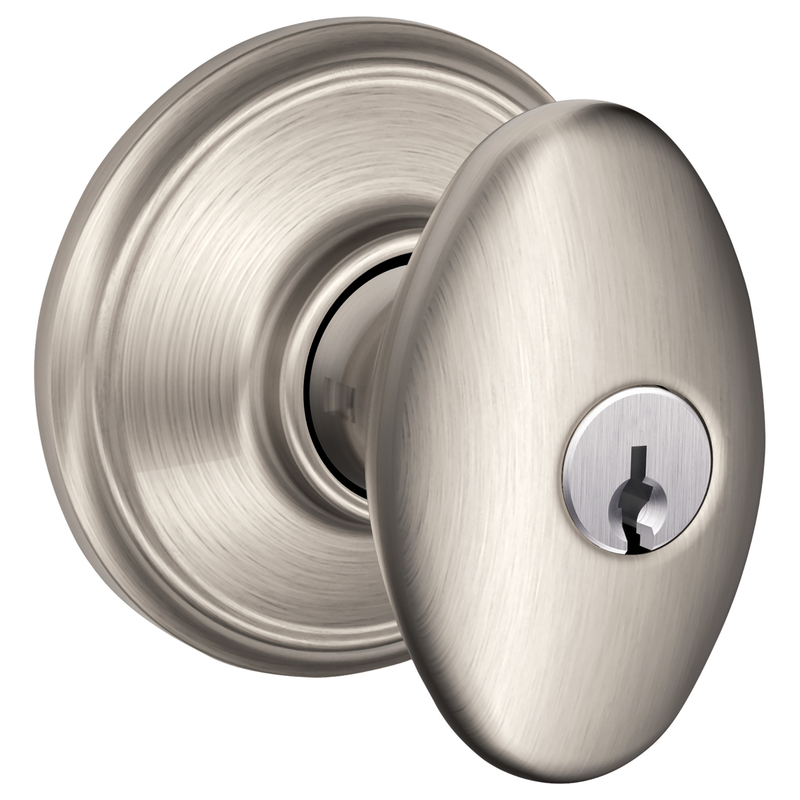

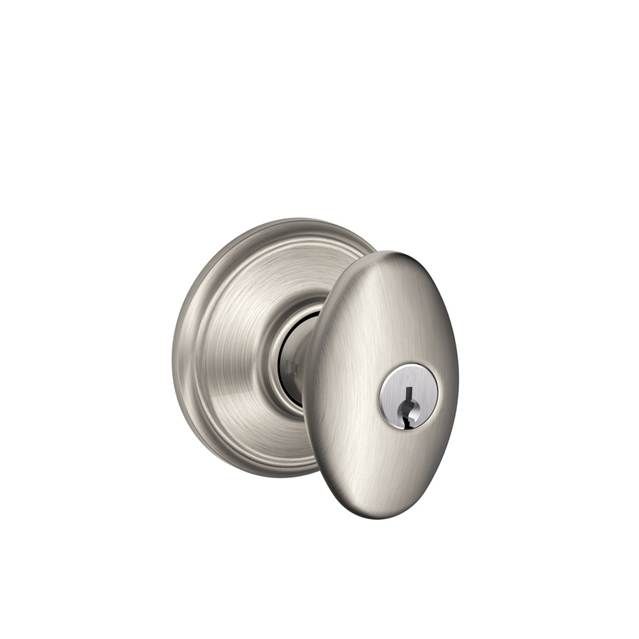

Schlage Residential F51ASIE619 Siena Knob Keyed Entry Lock offers a blend of security and style, making it an ideal choice for both residential and commercial applications. Designed to fit doors ranging from 1-3/8" to 1-3/4" thick, this lock features a robust metal construction, ensuring durability and reliability. Its satin nickel finish not only enhances the aesthetic appeal but also provides long-lasting wear resistance. This entry lock utilizes the Schlage C keyway, allowing you to secure your home with a key from the outside or by manually rotating the interior turn button. The reversible handing makes installation straightforward, accommodating various door orientations. Certified as a Commercial Grade 2 product, it has been graded best in residential security, durability, and finish, giving you peace of mind in your choice. The lockset comes equipped with a triple option adjustable dead latch, accommodating 2-3/8" or 2-3/4" backsets, and features a 2-1/8" crossbore size for easy installation. The elegant Siena knob design paired with a Georgian rose adds a touch of sophistication. With a limited lifetime mechanical and finish warranty, you can trust in the quality and performance of Schlage. Elevate your security with this reliable and stylish solution.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: 043156781522, 135195, F51ASIE619, F51SIE619, SCHF51SIE619
Ansi Function: F81 - Office
Backset: Triple Option Adjustable Dead Latch, 2-3/8" or 2-3/4" Backset
Bolt Protection: 1/2 In.
Category: Mechanical Residential Locksets
Crossbore Size: 2-1/8" Bore
Cylinder Included: Yes
Cylinder Type: 5 Pin Cylinder
Design: Siena Knob
Dimension: 2-9/16" Knob and 2-3/8" Projection with 2-3/4" Rose
Door Bore Size: 2-1/8"
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Door Thickness Max: 1-3/4"
Door Thickness Min: 1-5/8"
Finish: Satin Nickel
Finish Code: 619
Finish Color: Satin Nickel
Finish Description: Satin Nickel Plated Clear Coated
Function: F51A-Keyed Entry
Grade: Grade 2
Hand: Not Handed
Handing: Reversible
Hazardous Material: NO
Keys: Cut
Keyway: C
Knob/ Lever Design: Siena
Knob/ Lever Style: Knob
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Triple Option-Round, Square, Drive-in
Latch Bolt Faceplate Size: 2-1/4" x 1"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Faceplate Dimension: 1" x 2-1/4"
Latch Number: 16-086
Latch Type: Dead Latch (Guarded)
Lever Knob Design: SIE - Siena
Lock Category: Handlesets
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Warranty: Limited Lifetime Mechanical and Finish Warranty
Material: Zinc
No Of Inners: 1
No Of Pins: 5 Pin Cylinder
Num Of Keys: 2
Num Pins: 5-Pin
Order_ Qty: 1
PO date: 2024-10-20
Restricted Keyway: No
Rose Escutcheon Design: Georgian Rose
Screws: Combination
Series: F Series
Strike: Round and Square Corner Full Lip Strikes
Strike Dimension: 1-5/8" x 2-1/4"
Strike Height: 2-1/4 In.
Strike Number: 10-027
Strike Size: 2-1/4" x 1-5/8"
Strike Type: Full Lip Rad
Strike Width: 1-5/8 In.
Subcategory: Residential Door Knobs
Subtype: Door Knobs
Supplier: Schlage
Type: LOCK SETS
Upc: 043156420605
