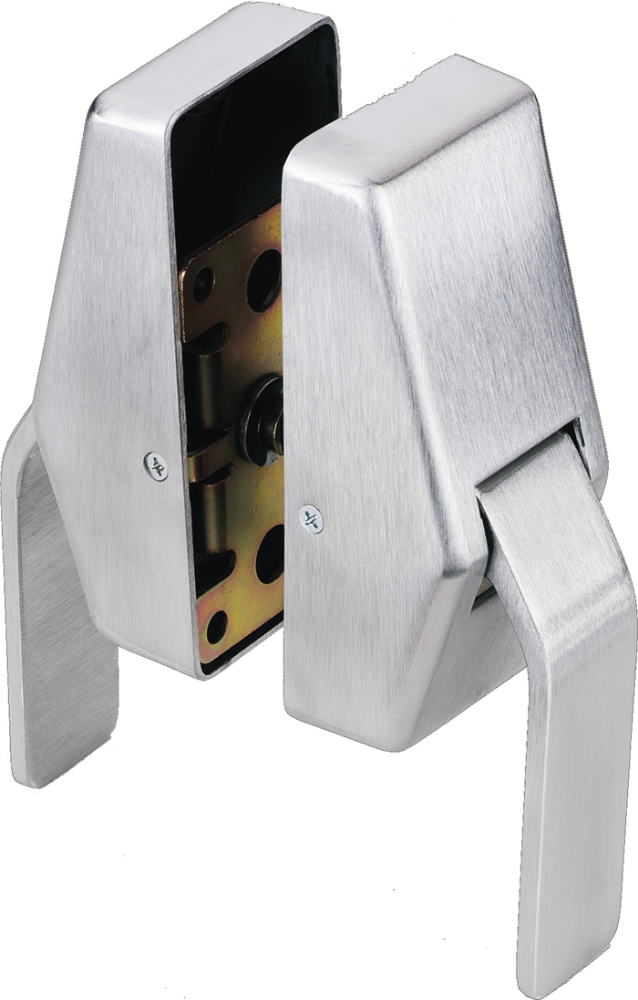

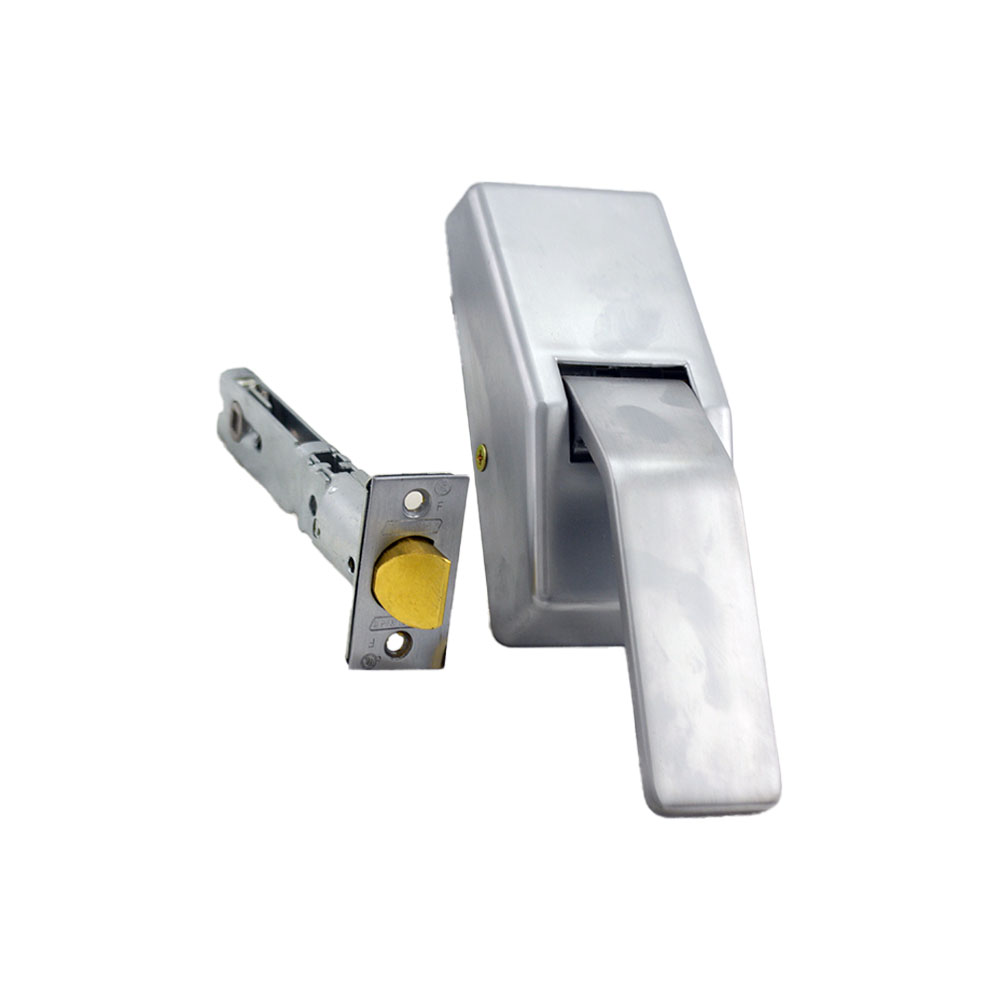

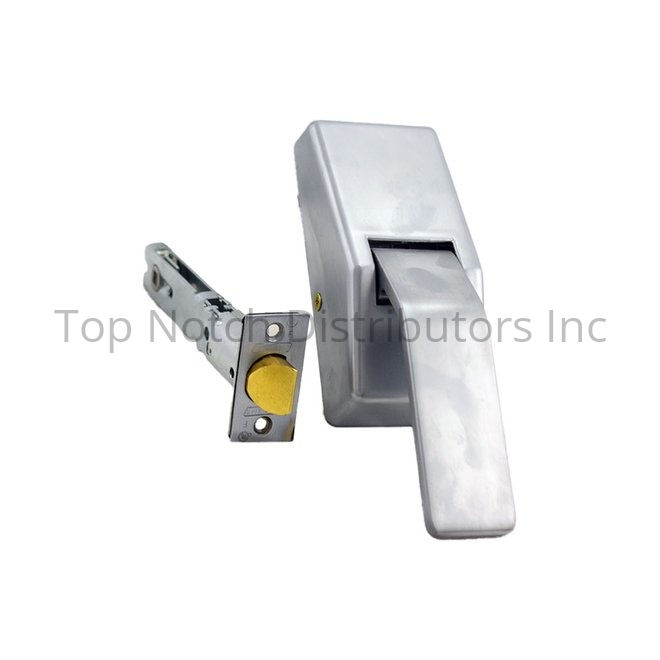

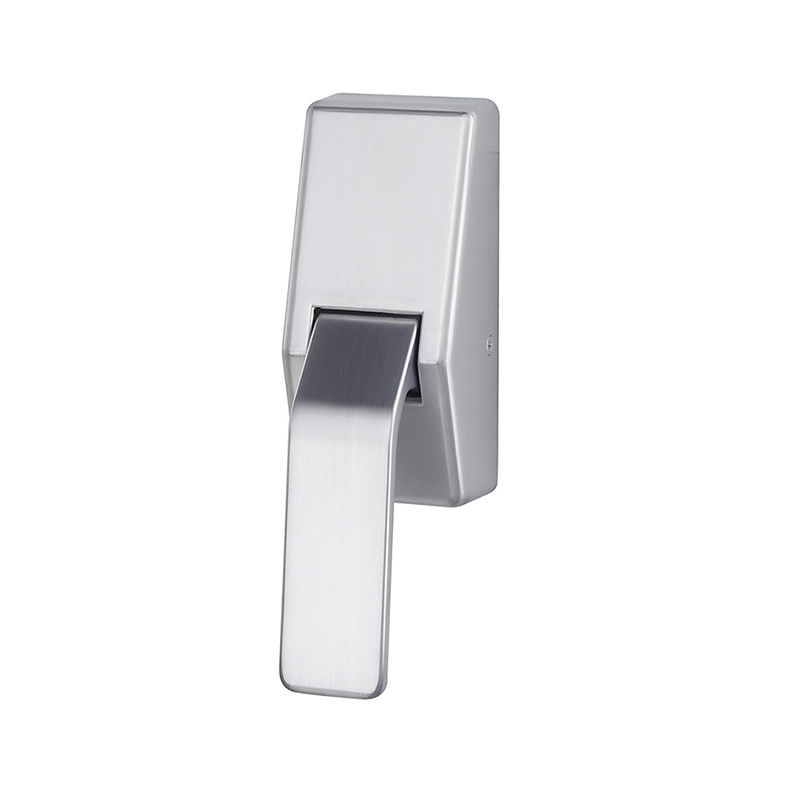

Schlage Commercial HL6-5-626 Push / Pull Latch with 5" Backset Satin Chrome Finish combines durability and versatility, making it an ideal choice for commercial and institutional environments. This non-handed latch features variable mounting positions and is designed for seamless operation on doors with a thickness of 1-3/4". The robust construction includes a brass body and a satin chrome finish, ensuring both functionality and aesthetic appeal. With a 2-1/8" crossbore size, the HL6 series latch is UL listed for all labeled metal or wood doors, as well as for 3-hour fire door applications, providing peace of mind in safety and compliance. The latch is equipped with a paddle measuring 1-1/2" x 4-1/2", making it easy to operate in high-traffic areas. Importantly, the design eliminates the risk of a fusible link failure, promoting reliability in critical moments. The latch's ANSI strike, with dimensions of 4-7/8" and a 1-1/4" lip, complements its sturdy construction. Backed by a limited 3-year mechanical warranty, the Schlage HL6-5-626 Push / Pull Latch stands as a testament to Schlage's legacy of security and innovation, ensuring your spaces remain protected while exuding professionalism.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Alternate Codes: GLYHL6-5US26D, HL6-5 626, HL65626, HL65US26D, HL6-5US26D, SCHHL6-5US26D
Backset: 5" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Crossbore Size: 2-1/8" Bore
Dimension: 2-9/16" x 5-1/2" Body with 1-1/2" x 4-1/2" Paddle and 2-5/8" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: 626
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Function: HL6-Passage
Grade: Grade 1
Hazardous Material: NO
Installation: Commercial
Knob/ Lever Design: Push/Pull Lever
Latch Backset Dim: 5 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 800110
Latch Type: Spring Latch (Unguarded)
Lock Category: Push/Pull Latch
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Brass
No Of Inners: 1
Order_ Qty: 1
Pack Qty: 1
Series: HL6 Series
Std Latch Backset Dim: 5 In.
Std Latch Number: 800110
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 2-3/4 In.
Std Strike Number: 890023
Std Strike Type: T-Square Corner
Std Strike Width: 1-1/8 In.
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 2-3/4 In.
Strike Number: 890023
Strike Type: T-Square Corner
Strike Width: 1-1/8 In.
Subcategory: Push Pull Latches
Subtype: Hospital Push/Pull Latch
Type: LOCK SETS
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
