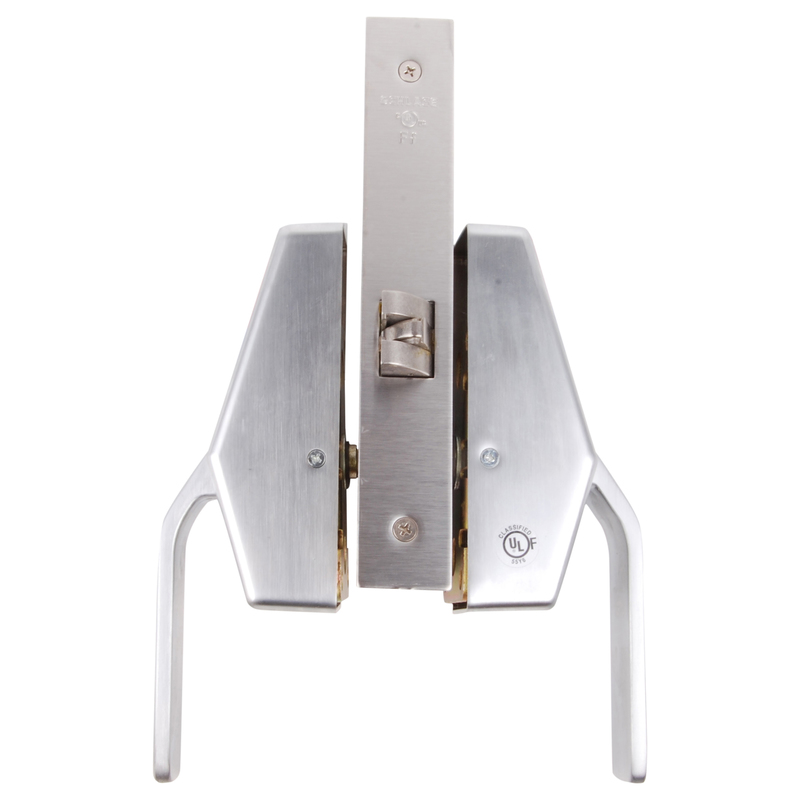

Schlage Commercial HL6-9010-626 Push / Pull Mortise Passage Lock offers a robust solution for commercial and institutional settings, blending versatility with durability. Designed for ease of use, this non-handed lockset features variable mounting positions, ensuring it can adapt to a variety of door configurations. With a satin chrome finish, it not only enhances aesthetics but also provides long-lasting protection against wear and tear. Constructed from high-quality brass, the HL6-9010-626 is UL Listed for all labeled metal or wood doors, making it suitable for high-traffic areas. The lockset accommodates doors with a thickness of 1-3/4" and includes a 2-3/4" backset for optimal fit. Its 2-1/8" crossbore size allows for straightforward installation. Additionally, the absence of a fusible link means there are no points of failure, delivering reliable performance when security matters most. With a limited 3-year mechanical warranty, you can trust in the craftsmanship of Schlage. The ANSI strike and 4-7/8" strike dimension further ensure compatibility with standard door setups, making the HL6-9010-626 an ideal choice for professionals seeking quality and dependability in door hardware.
Push / Pull Mortise Passage Lock Satin Chrome Finish
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Manufacturer surcharge: $ 0.0
Ansi Function: F01 - Passage
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Crossbore Size: 2-1/8" Bore
Dimension: 2-9/16" x 5-1/2" Body with 1-1/2" x 4-1/2" Paddle and 2-5/8" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4 In.
Dust Box: None
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Function: HL6-9010-Passage Latch
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Manufacturer Warranty: Limited 3 Year Mechanical Warranty
Material: Brass
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-10-09
Pack Qty: 1
Series: HL6 Series
Std Strike Height: 4-7/8 In.
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8 In.
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4 In.
Subcategory: Push Pull Latches
Subtype: Hospital Push/Pull Latch
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
