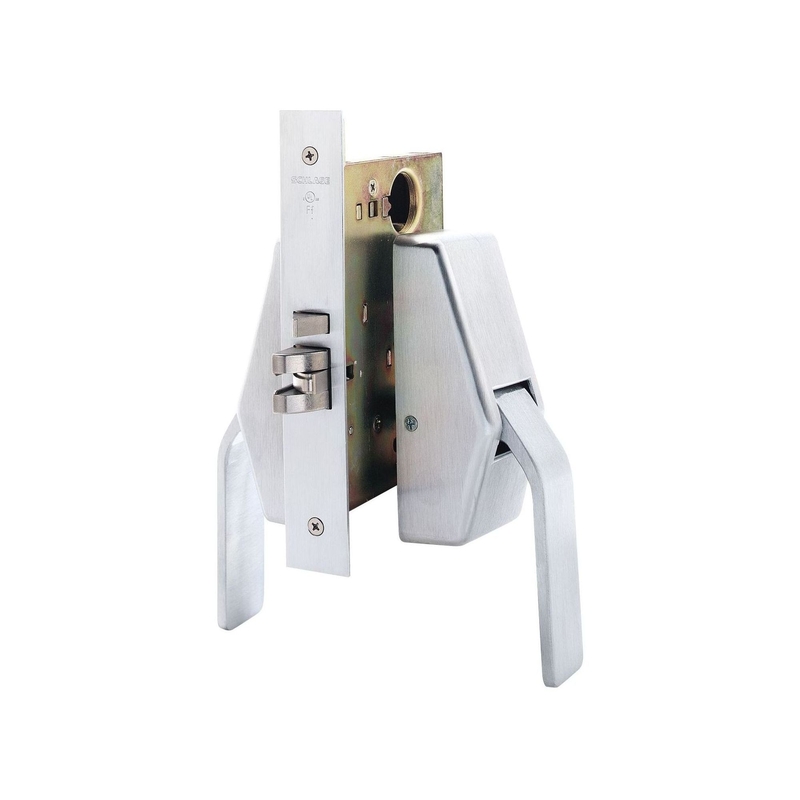

Schlage HL6-9010 630 Push-Pull Mortise Lock US32D

Schlage HL6-9010 630 PUSH PULL MORT LOCK US32D offers an innovative solution for healthcare and institutional environments, designed for ease of operation even when hands are full. This hospital push/pull mortise latch features a passage function and is crafted from satin stainless steel, ensuring durability and aesthetic appeal. One of the standout features of the HL Series is its dampened paddle action, which significantly reduces the noise associated with hardware operation. In fact, this model boasts a proven 50% quieter paddle operation compared to previous offerings, making it an ideal choice for areas where operational noise can be disruptive. From healthcare facilities to busy hallways and administrative offices, this lock provides the quiet functionality needed to support patient healing and staff concentration. With a standard strike height of 4-7/8 inches and a width of 1-1/4 inches, the HL6-9010 is designed for commercial installation on doors with a thickness of 1-3/4 inches. Its ASA strike type is tailored for reliable performance in demanding environments. Trust Schlage's HL Series for a combination of quality, performance, and noise reduction, meeting the complex demands of modern facilities.

PUSH PULL MORT LOCK US32D

Hospital Push/Pull Mortise Latch, Passage Function, ASA Strike, Satin Stainless Steel

Push/Pull Mortise Lock, Passage, Satin Stainless Steel

Quiet hospital push/pull hardware.

The HL Series includes a full line of push/pull hardware that is ideal for healthcare and other institutional applications where ease of operation is needed – even when hands are not free. Delivering both superior quality and exceptional performance, the HL Series offers a wide variety of popular finishes and configurations providing the flexibility needed to meet the most demanding door control applications.

Hospitals and other healthcare environments have special requirements for noise reduction to help patients heal faster and staff perform more accurately and efficiently. There are many sources of noise, but choosing quiet door hardware can help reduce excess noise and create quieter environments. The newly redesigned HL Series quiet hospital push/pull hardware offers a proven 50% quieter paddle operation than our previous product, providing healthcare organizations a reliable solution for noise reduction initiatives.

• ƒDampened paddle action – depression and snap back – reduces noise associated with hardware operation
• ƒProven 50% quieter paddle operation – both in the pull and push direction – than our previous solution
• ƒComes standard on all HL Series hardware

Applications

Anywhere operational noise is disruptive:

• ƒHealthcare areas where patients are sleeping and healing
• ƒWork spaces where concentration is important
• ƒBusy traffic areas such as hallways
• ƒChapels or auditoriums where noise can be disturbing
• ƒOffice or administrative areas

Resources

• HL Series Hospital Latches Cut Sheet
• Von Duprin Finishes Chart
