Ship via: Can Ship UPS
Manufacturer surcharge: 2.0%
Ansi: ANSI/BHMA A156.36-2010, Grade 1
Ansi Function: E06061
Bolt Projection: 1"
Bolt Protection: Bolt 1"
Cam Number: L583-474
Cam Type: Schlage L
Case Dimensions: 4-7/16" x 3-5/8" x 1"
Commercial Residential: Commercial
Cylinder Length: 1-1/8"
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Faceplate Size: 5-9/16" x 1-1/4"
Finish: 626/US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}

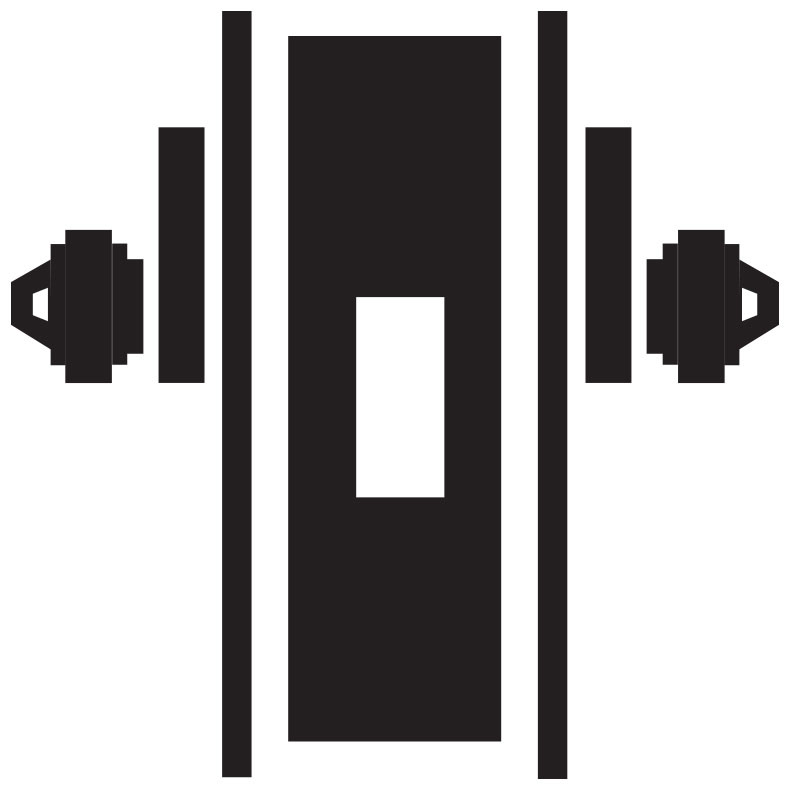

Function: 462-Double Cylinder Deadlock
Function Family: Institution
Grade: Grade 1
Hand: Field Reversible
Handing: Non-Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Backset Dim: 2-3/4"
Latch Type: Deadbolt
Limited Warranty: 3 Years
Lock Face Size: 5-9/16 " x 1-1/4"
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Pack Height: 3"
Pack Length: 6.5"
Pack Qty: 1
Pack Width: 5.75"
Pins: 6
Screws: Combination
Series: L400 Series Mortise Deadbolts
Ship Weight: 3 lbs.
Std Keyway: C
Std Latch Backset Dim: 2-3/4"
Std Latch Number: L283-003
Std Latch Type: Deadbolt
Std Strike Height: 3-1/2"
Std Strike Number: 10-079
Std Strike Type: Flat
Std Strike Width: 1-1/8"
Strike Height: 3-1/2 In.
Strike Number: 10-079
Strike Type: Flat
Strike Width: 1-1/8 In.
Subtype: Deadlock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
