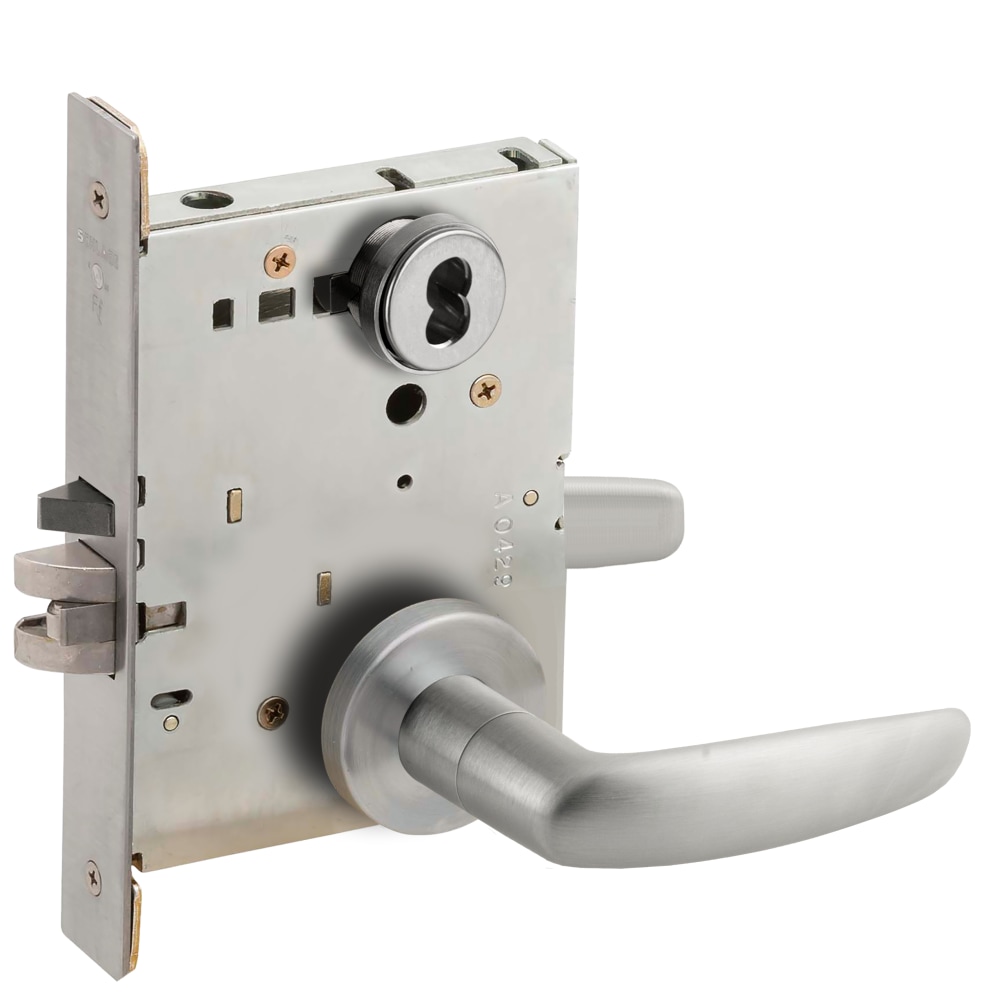

Schlage Commercial L9071J07A626ISLOC Classroom Security Mortise Lock combines exceptional security with user-friendly functionality. This lock features a large format IC less core and is designed with a 07 lever and A rose, finished in sleek satin chrome. Ideal for educational institutions and commercial spaces, it offers a classroom security function that allows the latchbolt to be retracted from either side, ensuring ease of access while enhancing safety. Certified to ANSI/BHMI A156.13-2012 standards, this commercial-grade 1 lock is engineered for durability, boasting a UL listing for 3-hour fire doors. The lock body is mortised inside the edge of doors measuring 1-3/4" thick, and it features a reversible handing design for versatility. Its latch faceplate measures 1-1/4" x 8", while the strike is ANSI compliant with dimensions of 4-7/8" and a 1-1/4" lip. Included with a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, the Schlage L9071J07A626ISLOC ensures reliable performance in high-traffic areas. With its robust construction and sophisticated design, this mortise lock is an ideal choice for enhancing security without compromising accessibility.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Ansi: A156.13-2017 Series 1000
Ansi Function: F32 - Classroom Security
Application: Indicator with Text
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Cam Number: L583-255
Cam Type: Schlage L
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Length: 1-1/2"
Cylinder Type: Schlage FSIC Less Core
Dimension: 2-1/8" Rose with 4-5/8" Lever and 2-7/8" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Chrome
Finish Code: 626
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom Security
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 07 Lever
Leverknob Design: 07 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 5.63"
Pack Length: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Width: 5.38"
Projection: 2-7/8"
Rose Escutcheon Design: A Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L Series
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 626
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
