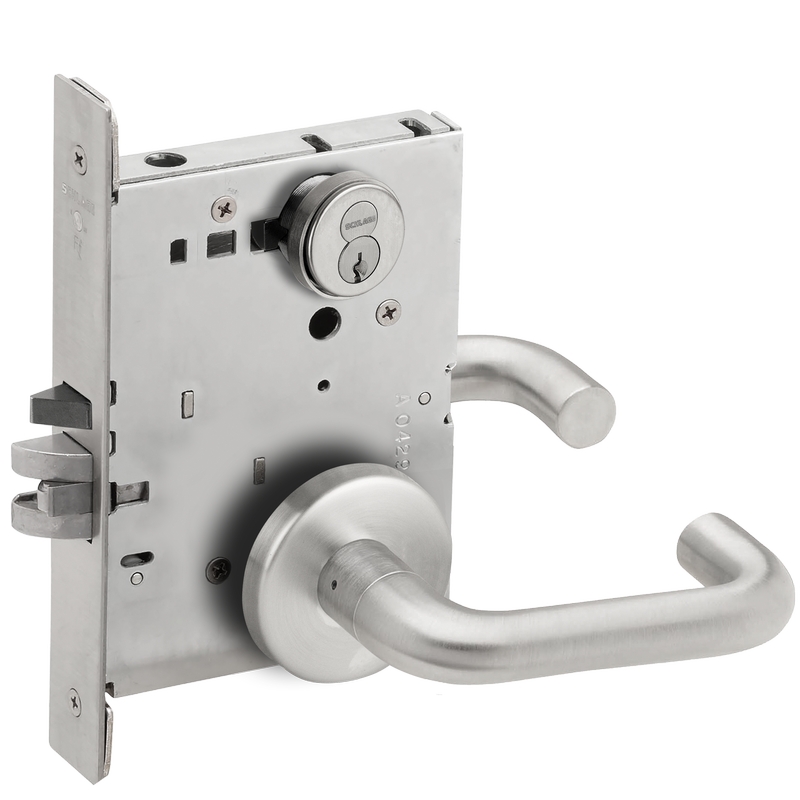

Schlage Commercial L9082R03B630 Institution Mortise Lock with Large Format IC Core C Keyway offers robust security and functionality designed for institutional applications. This high-performance lock features a 2-3/4" backset, ensuring a perfect fit for standard door preparations while enhancing security measures in high-traffic environments. The lock showcases a satin stainless steel finish that not only adds a modern touch but also ensures durability and resistance to wear and tear. With a 2-9/16" rose, a 4-3/4" lever, and a 2-13/16" projection, the design balances aesthetic appeal with functional ease, catering to building professionals and knowledgeable homeowners alike. One of the standout features of the L9082R is its reversible handing, which allows for versatile installation on both left and right-handed doors. This flexibility, combined with the ANSI strike, makes it an ideal choice for various door types. The large format IC core C keyway enhances security while providing convenience for key management. Engineered for reliability, this Institutional Mortise Lock is a leading choice for facilities that demand high-security solutions without compromising on style. With Schlage's reputation for excellence, you can trust that your entryways are protected with the best in architectural hardware.
Institution Mortise Lock with Large Format IC Core C Keyway with 03 Lever and B Rose Satin Stainless Steel Finish
Ansi Function: F30 - Asylum
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4"
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Cylinder Type: Schlage FSIC With Core
Design: 03 Lever
Dimension: 2-9/16" Rose with 4-3/4" Lever and 2-13/16" Projection
Door Range: 1-3/4"
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Satin Stainless Steel
Finish Code: 630
Finish Description: Satin Stainless Steel
Fire Rated: 3 Hours {A}
Function: 9082-Institution Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: 1 Bitted
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4" x 8"
Lever Knob Design: 03 - Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: B - Rose
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
