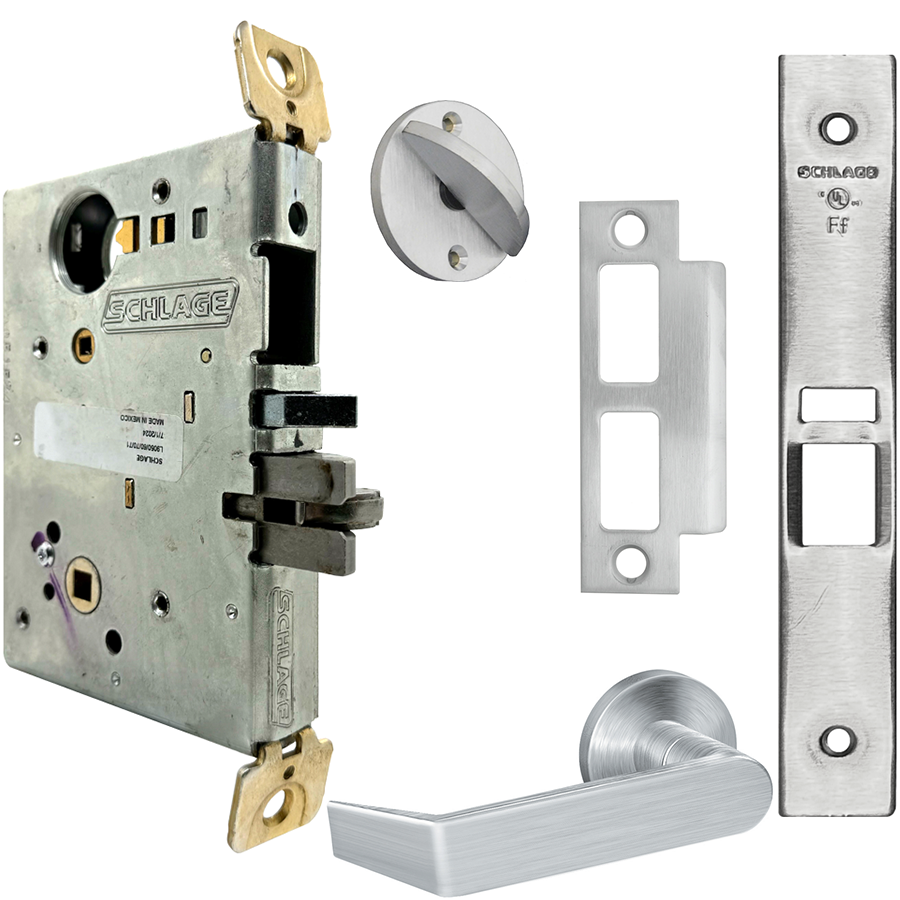

Schlage L9090EL 06A 626 Grade 1 Electric Mortise Lock offers exceptional security and versatility for commercial applications. Designed as a Fail Safe model, this Grade 1 lock features a non-keyed design with an easily operable 06 lever and an elegant A Rose, all finished in durable satin chromium plating. The lock's field-reversible handing allows for flexible installation, accommodating various door configurations. This next-generation electrified mortise lock is equipped with a universal input voltage capability of 12 or 24VDC, empowering users to select fail safe or fail secure functionality simply by flipping a switch within the lock case. The innovative RX switch enhances security by monitoring the inside lever, providing improved detection sensitivity without the need to open the lock. With a bolt projection of 3/4" and a fire rating of 3 hours, the Schlage L9090EL is engineered for robust performance. It is also ADA compliant, making it accessible for all users. The lock's hard-wired power source ensures reliability in high-traffic environments, while its combination screws and standard ASA strike enhance installation ease. For a dependable and sophisticated locking solution, trust the Schlage L9090EL to safeguard your commercial spaces with style and security.
Grade 1 Elec noDB, Fail Safe
Grade 1 Fail Safe Electric Mortise Lock, Non-Keyed, 06 Lever, A Rose, Satin Chromium Plated Finish, Field Reversible
The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 400mA
Base Material: Brass or Bronze
Bolt Projection: 3/4"
Category: Commercial Electric Locks, Deadbolts, Electric Locks, Lock Sets, Mortise Electric, Mortise Electric Locks, Mortise Locks, Standalone/Pushbutton Locks
Commercial Residential: Commercial
Cylinder Type: Non-Keyed
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9090EL-Fail Safe
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Leverknob Design: 06 Lever
Limited Warranty: 1 Year
Lock Face Size: 8" x 1-1/4"
Operating Voltage: 12VDC/24VDC
Pack Qty: 1
Power: Hard Wired
Roseescutcheon Design: A Rose
Screws: Combination
Series: L9090 Series Electrified Mortise Lock
Std Strike Height: 4-7/8"
Std Strike Number: 10-072
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Electric Mortise Lock
Type: Electric Locks
Unit of Measure: Each
